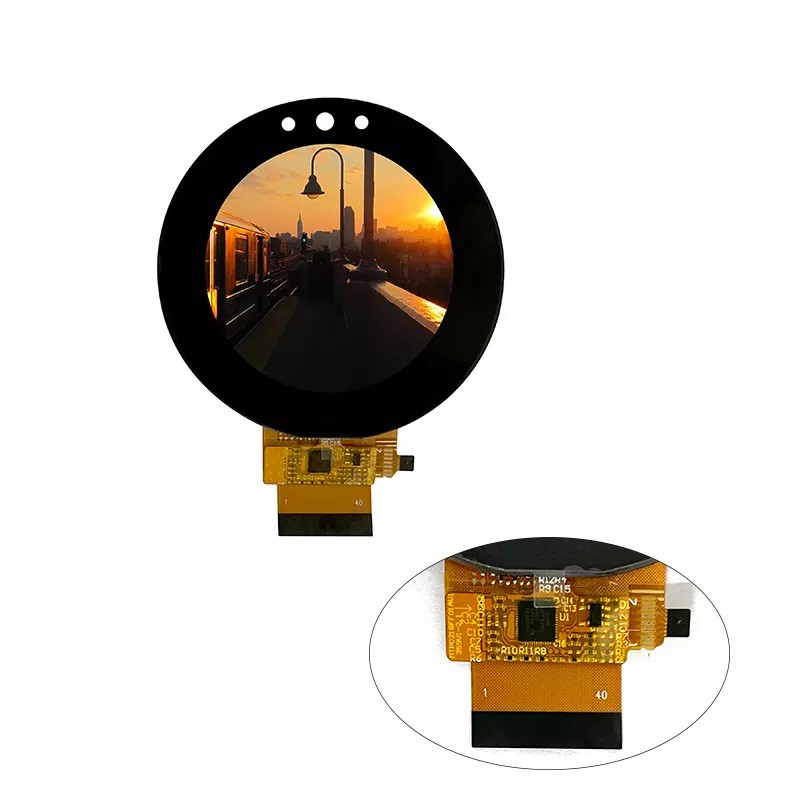

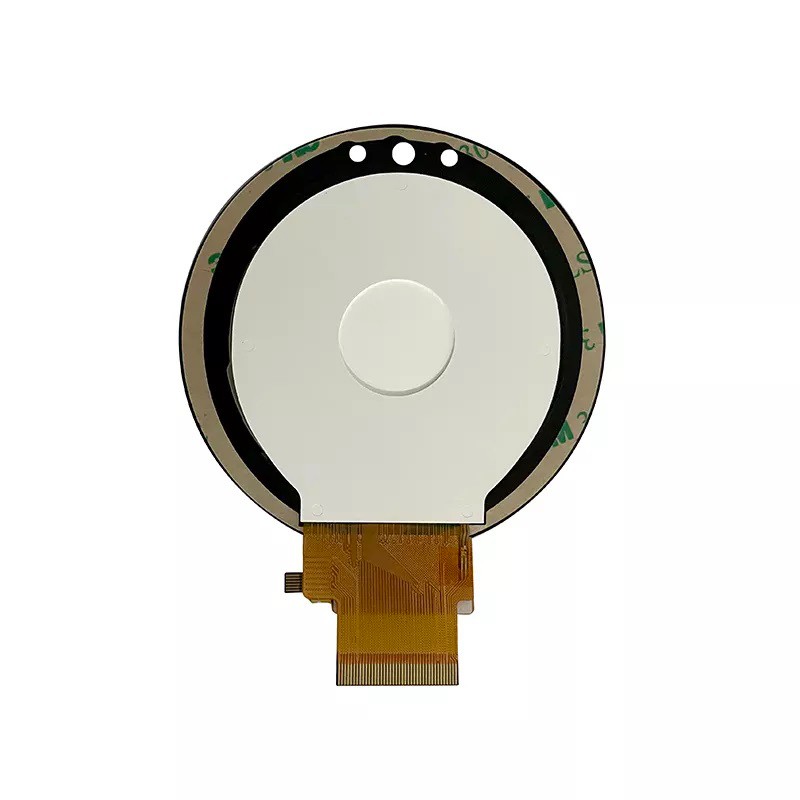

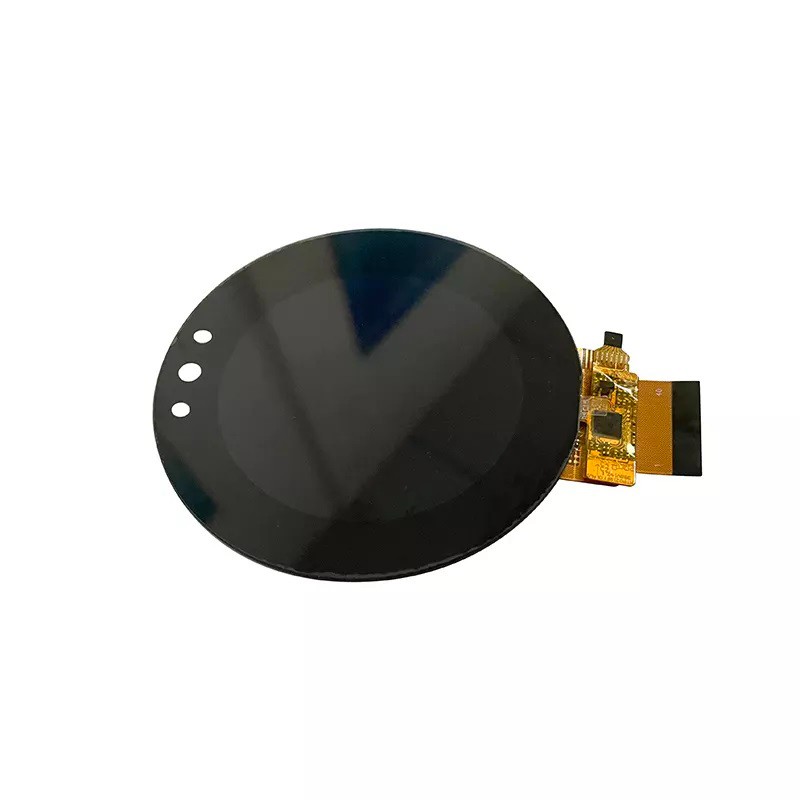

2.1 inch Round TFT LCD Display 480x480

Description

This 2.1" ROUND TFT is a IPS Mini color TFT LCD display module is made of resolution 480x RGBx480 pixels,with outline dimension of 56.18(H) × 59.71(V) × 2.2(T) mm and AA size 53.28(H)×53.28(V) mm.this 2.1" CIRCULAR TFT display builts in ST7701S controller IC and supports RGB/SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:480x(RGB)x480
• View Direction:ALL O'clock
• Display Color : RGB 262K
• Power Supply :2.45-3.3 V
• Interface : RGB/SPI
• Pin No: 40P Connector
• Backlight: 3  White LEDS

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:56.18(H) × 59.71(V) × 2.2(T) mm
• Viewing Area :53.28(H)×53.28(V) mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

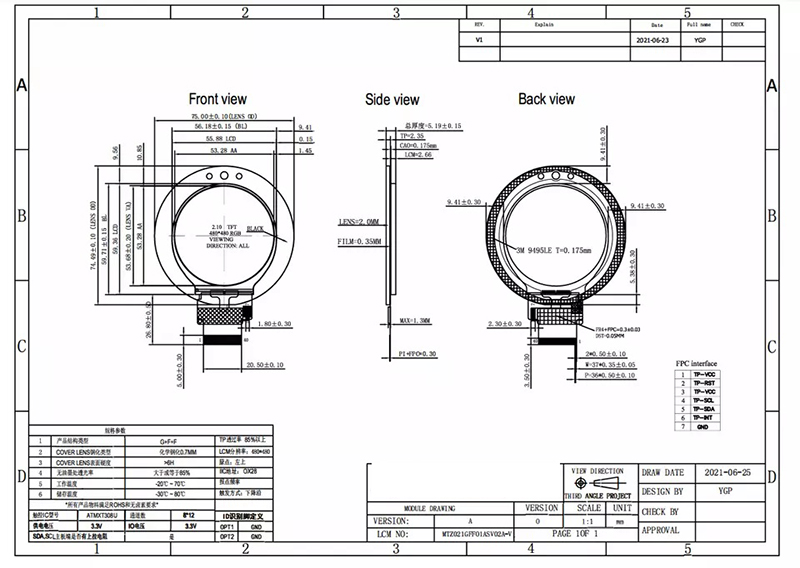

Dimensions
