5.94 inch Color TFT LCD Display 720x1280

Description

This 5.94"TFT is a IPS Mini color TFT LCD display module is made of resolution 720x RGBx1280 pixels,with outline dimension of 76.75(W)×140.28(H)×1.66(D) mm and AA size 73.98(H)X131.22(V) mm.this 5.94" TFT display builts in ST7703 Driver IC and supports MIPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:720x(RGB)x1280
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :4.85-5.15 V
• Interface :MIPI
• Driver IC:ST7703
• Pin No: 30P
• Backlight:14 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:76.75(W)×140.28(H)×1.66(D) mm
• Viewing Area :73.98(H)X131.22(V) mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

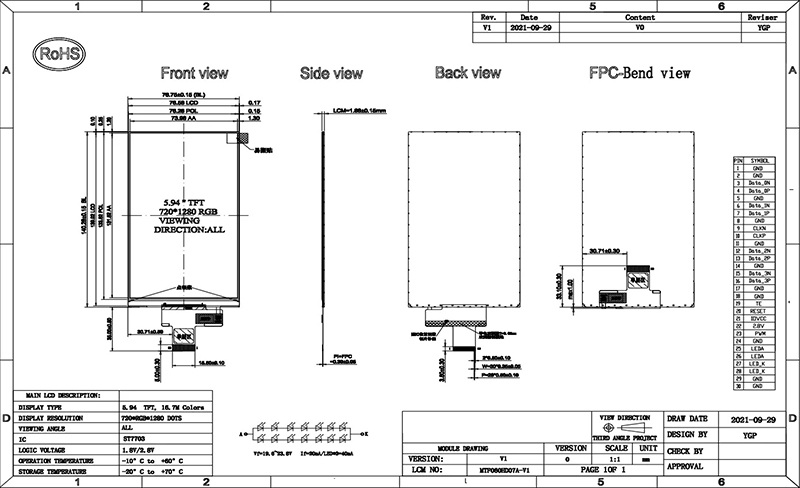

Dimensions
