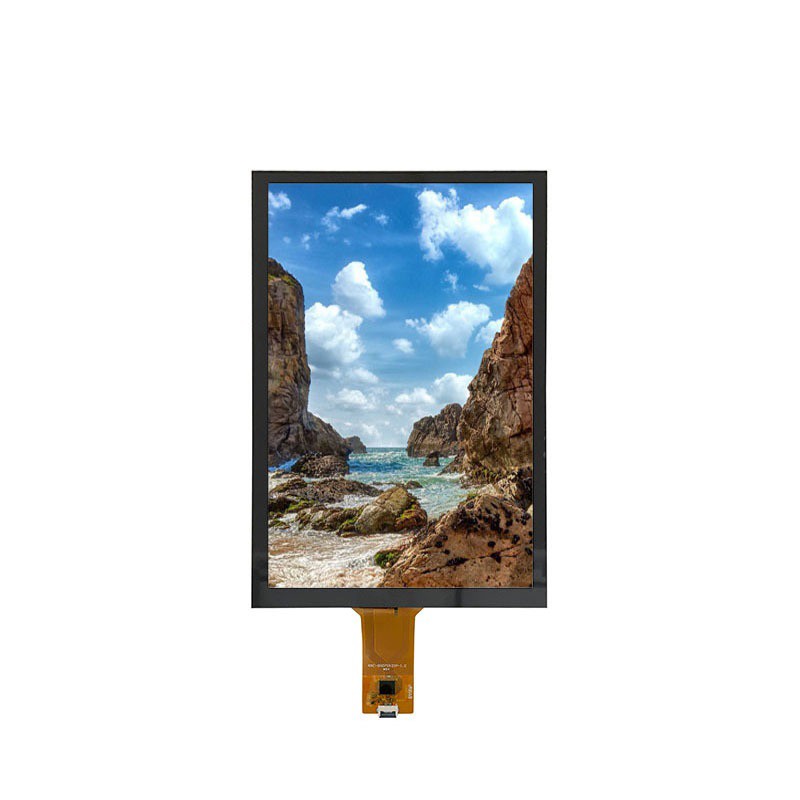

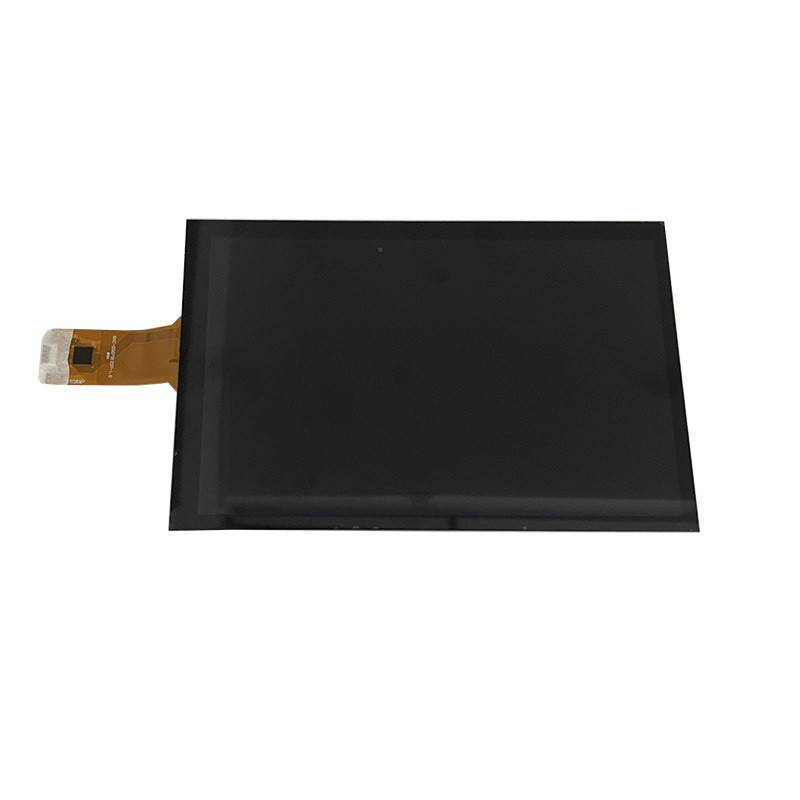

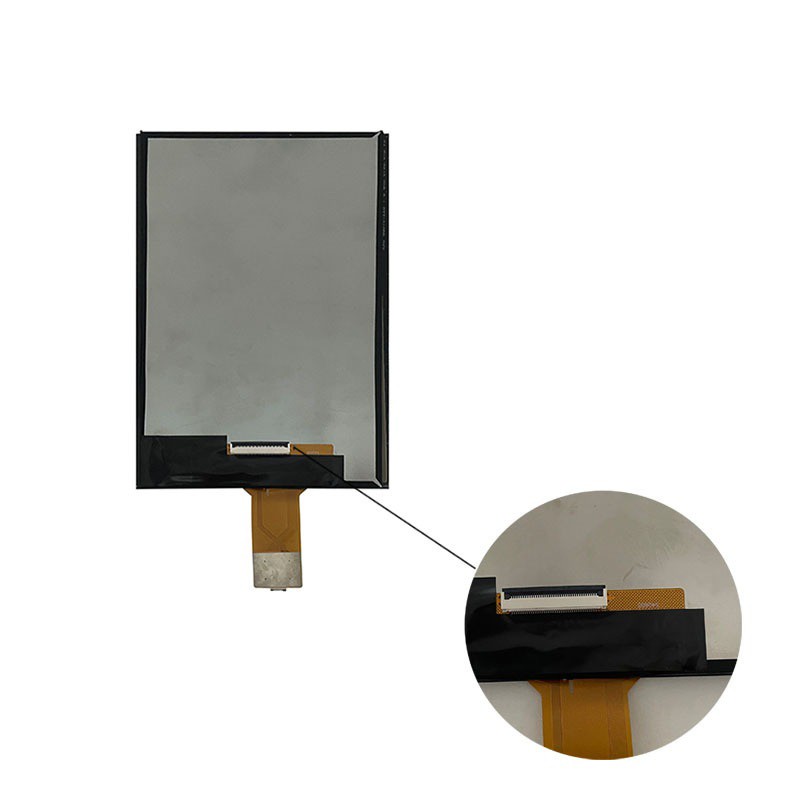

7 inch TFT LCD Touch Screen Display Module 800x1280

Description

This 7"TFT is a IPS Mini color TFT LCD display module is made of resolution 720x RGBx1280 pixels,with outline dimension of 161.00(W)×99.75(H)×6.40(D) mm and AA size 150.72(H)X90.42(V) mm.this 7" TFT display builts in JD9365 Driver IC and supports MIPI 4 LANE interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

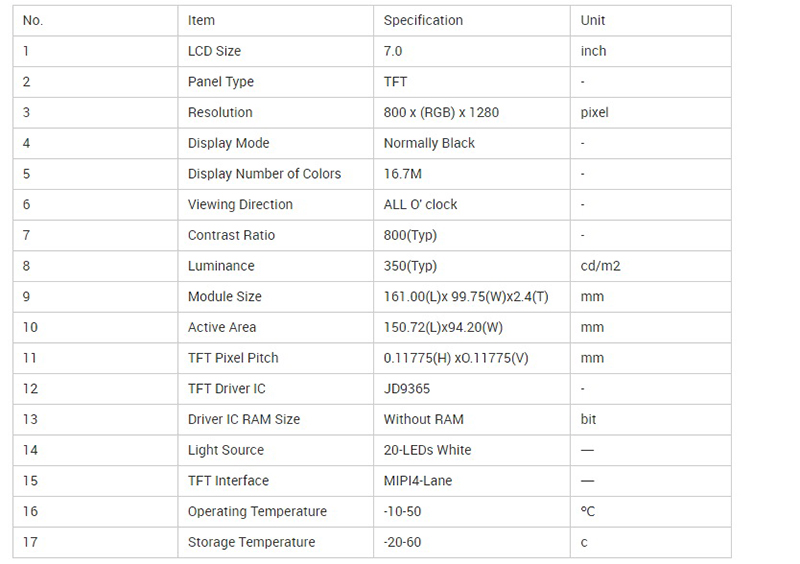

• Resolution:800x(RGB)x1280
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :4.85-5.15 V
• Interface :MIPI 4 LANE
• Driver IC:JD9365
• Pin No: 40P
• Dot pitch:1.2075(H) x 1.2075(V) mm
• Contrast Ratio:800

• Backlight:20 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:161.00(W)×99.75(H)×6.40(D) mm
• Viewing Area :150.72(H)X90.42(V) mm
• Touch Screen:with or without
• Operation Temperature : -10℃~50℃
• Storage Temperature : -20℃~60℃

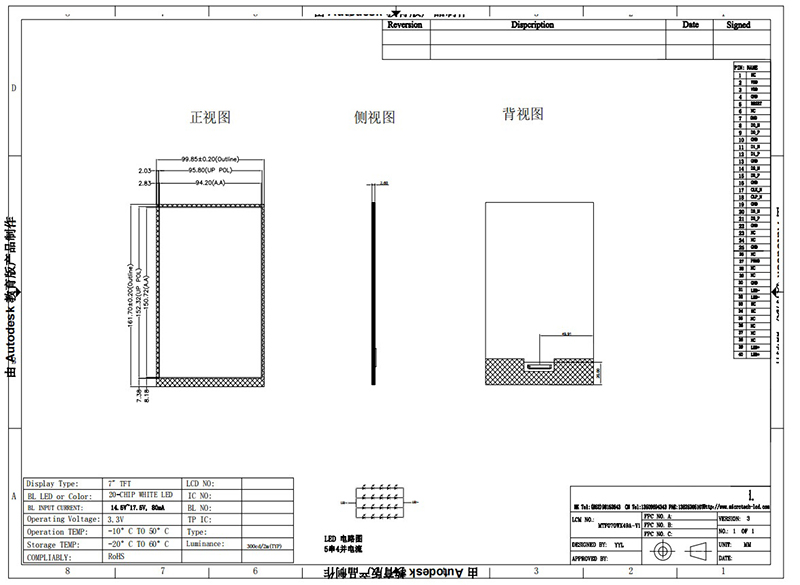

Dimensions
