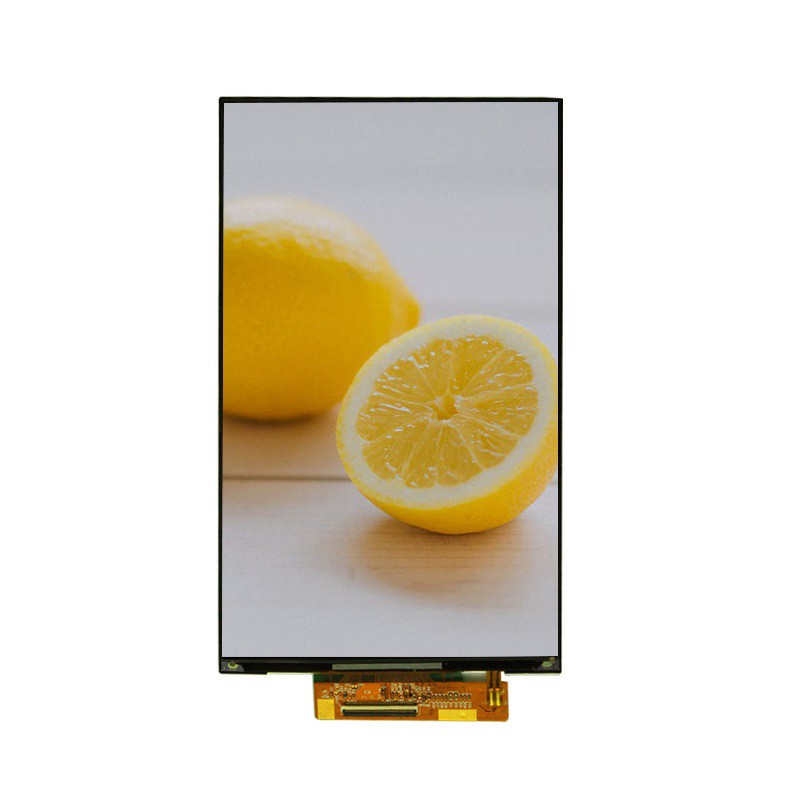

7 Inch Tft Lcd Panel Module 1200x1920

Description

This 7"TFT is a IPS Mini color TFT LCD display module is made of resolution 1200x RGBx1920pixels,with outline dimension of 161.20(W)×105.50(H)×2.12(D) mm and AA size 150.72(H)X94.2(V) mm.this 7" TFT display supports MIPI / MIPI to HDMI Convert Board interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

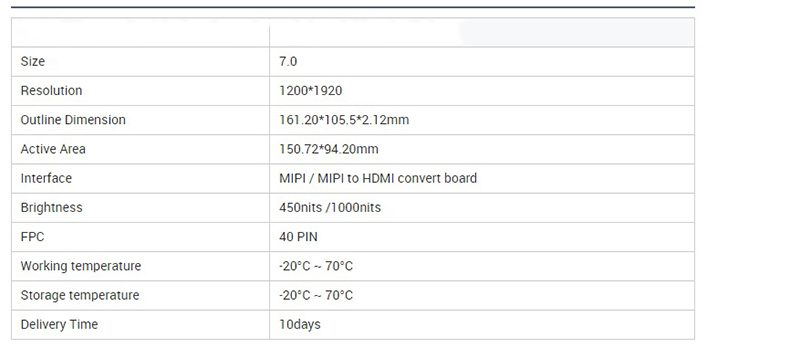

• Resolution:1200x(RGB)x1920
• View Direction:ALL O'clock
• Display Color : RGB 16.7M
• Power Supply :4.85-5.15 V
• Interface :MIPI / MIPI to HDMI Convert Board
• Pin No: 40P
• Luminance(cd/m2):450 /1000

• Backlight:20 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:161.20(W)×105.50(H)×2.12(D) mm
• Viewing Area :150.72(H)X94.2(V) mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -20℃~70℃

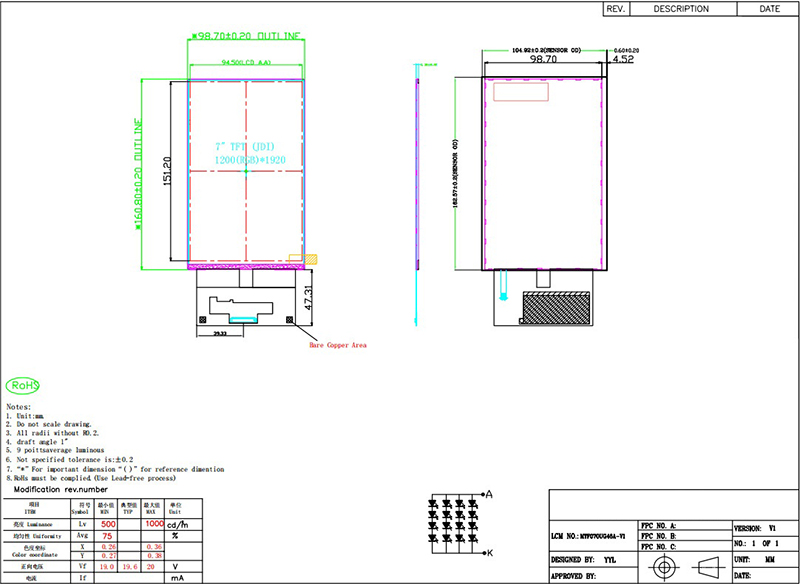

Dimensions
