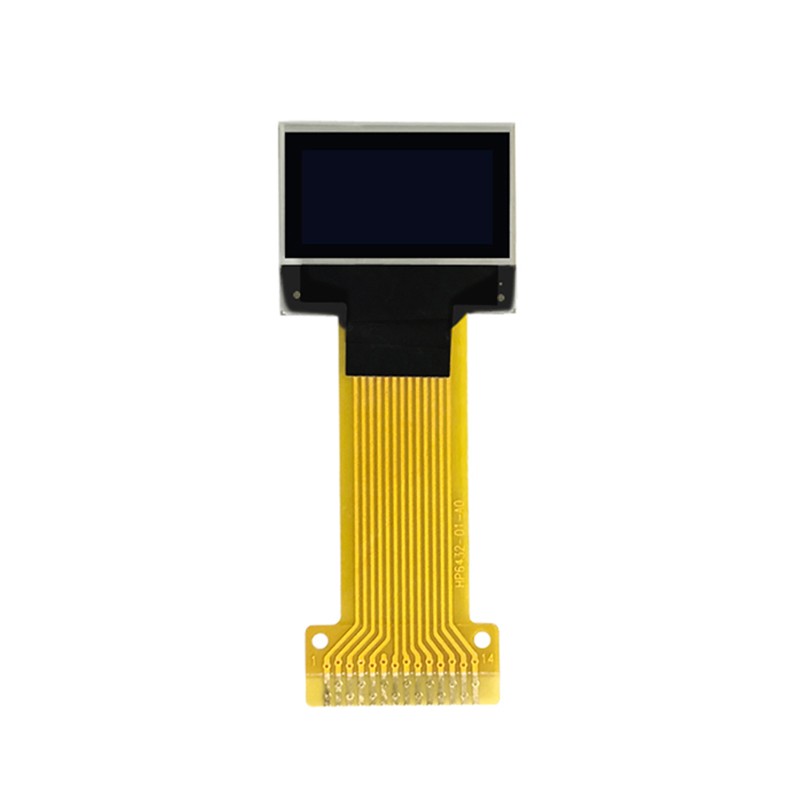

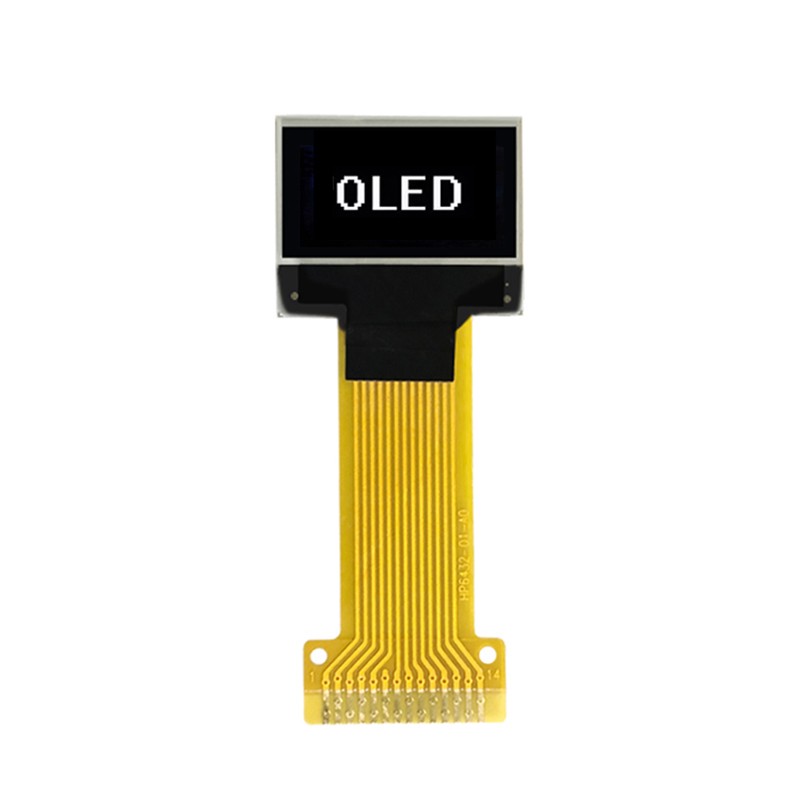

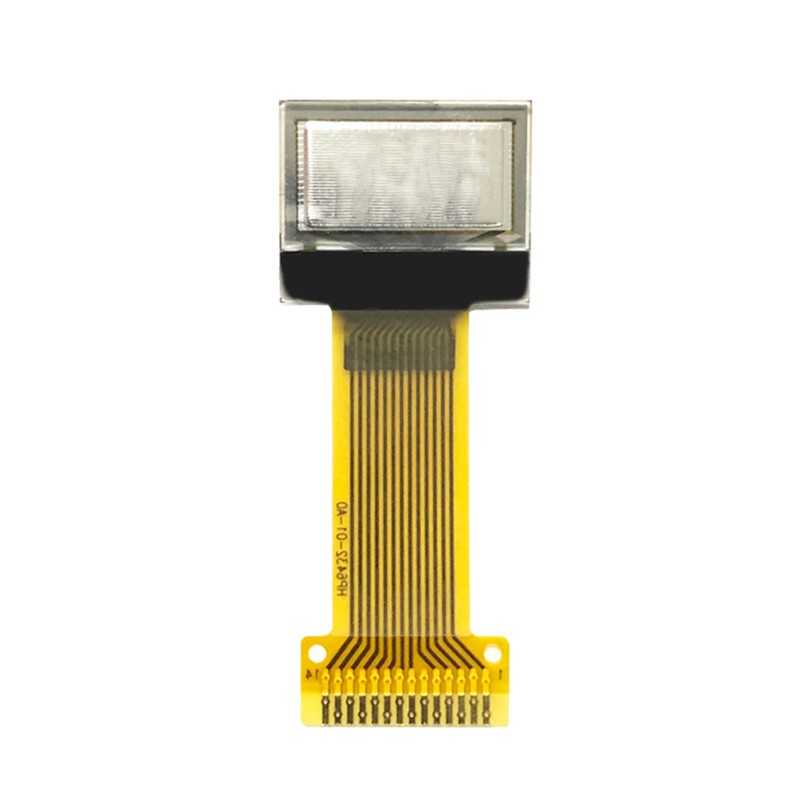

0.49" 64x32 OLED Micro Display Module

Description

This 0.49" OLED is the graphic OLED display module made of 64x32 individual white OLED pixels,diagonal is only 0.49 inch.The controller ic SSD1306, communicates via I2C serial interface only,thanks to controller's built-in voltage generation,only a single 3.3V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.

Specifications

• Resolution : 64x32 Dot Matrix OLED
• Display Mode : Passive Matrix
• View Angle: IPS
• Display Color : White
• Module Dimension : 14.50 x 11.6 x 1.227 mm
• Viewing Area : 11.18 x 5.18 mm
• Power Supply :1.65-3.5 V
• Interface : I2C
• Controller IC : SSD1306
• Pin No: 14P Soldered
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

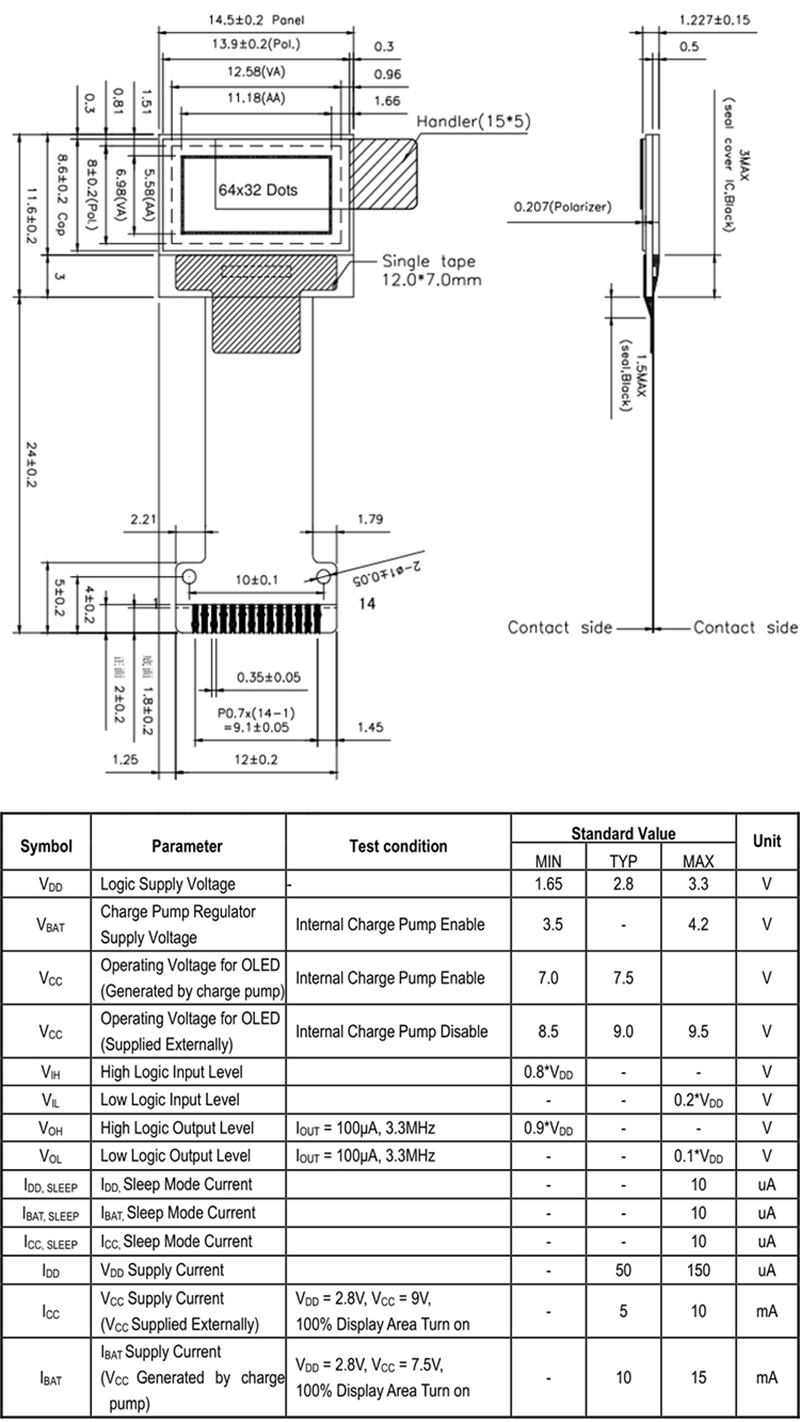

Dimensions

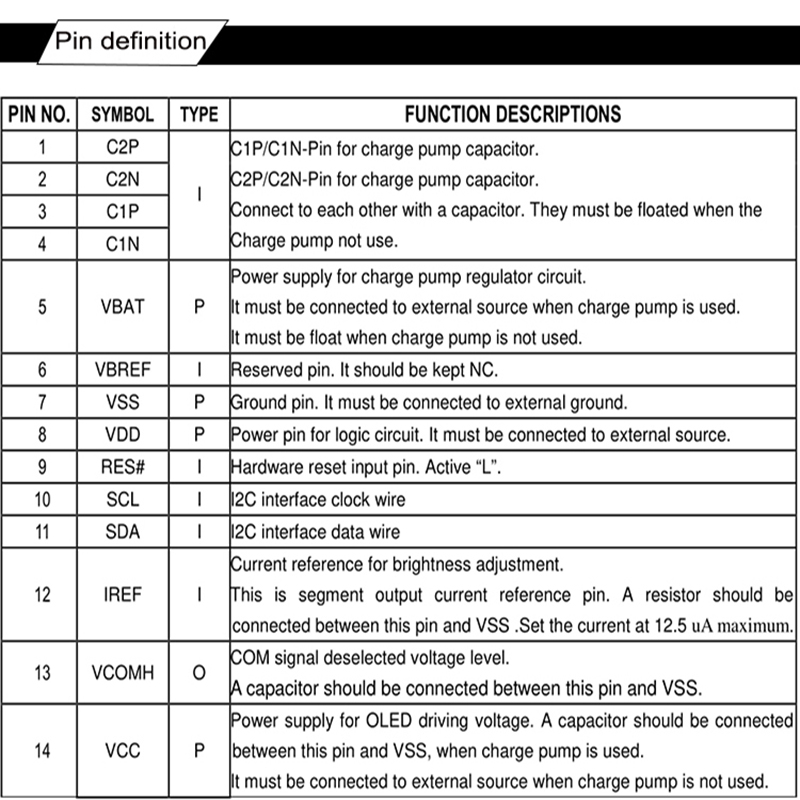

Pin Definitions
