0.69 inch OLED Display Module 96x16 pixels

Description

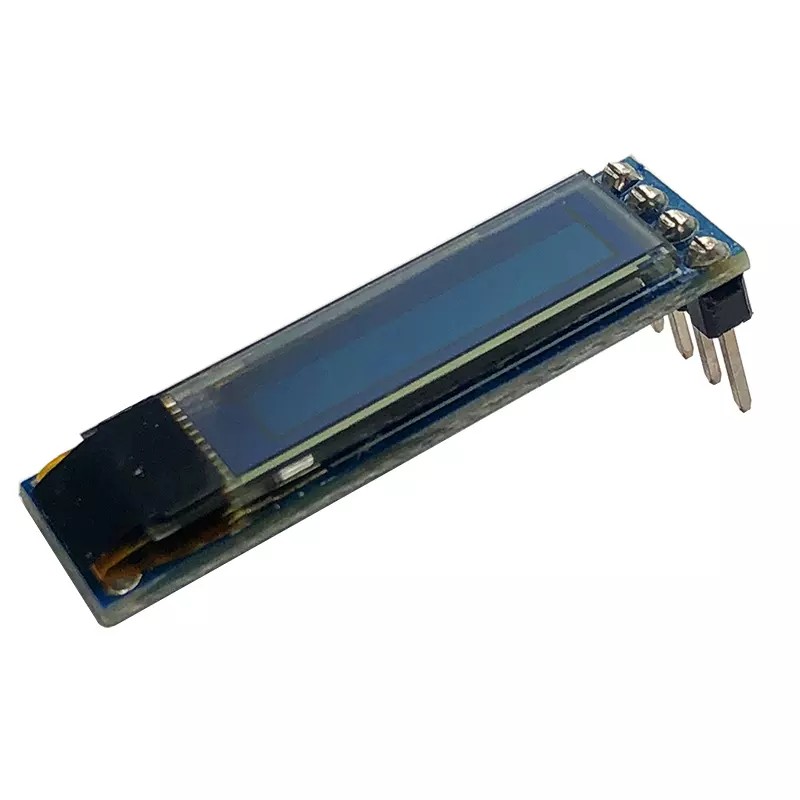

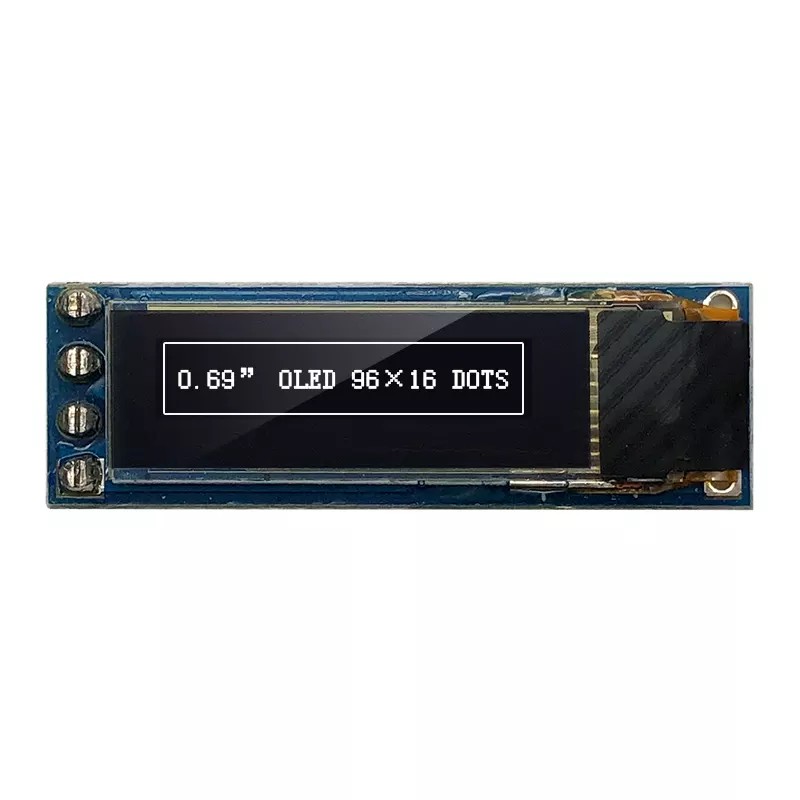

The monochrome 0.69" OLED Module is the graphic COB OLED display and made of 96x16 white OLED pixels, it is with Module Dimension of 32.54 x 10.0 mm,AA size 17.26 x 3.58 mm.it builts in SSD1306 controller ic,communicates via I2C serial interface. this OLED Module is Small,lightweight, low power consumption since it only powers the pixels that is necessary,suitable for industrial equipments,embedded systems,medical and hand-held devices,securities.

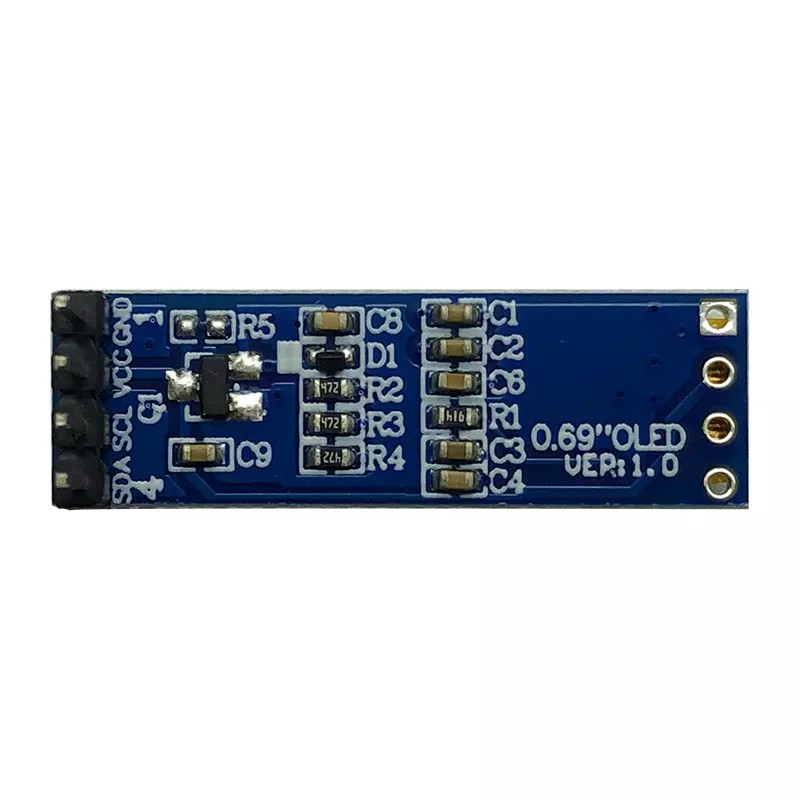

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!




Specifications

• Resolution : 96x16 Dot Matrix COB OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension :32.54 x 16.00 mm
• Viewing Area :17.26 x 3.58 mm
• Power Supply :3.3 V
• Interface : I2C serial
• Controller IC : SSD1306
• Pin No: 4P
• Operation Temperature : -40℃~85℃
• Storage Temperature : -40℃~85℃

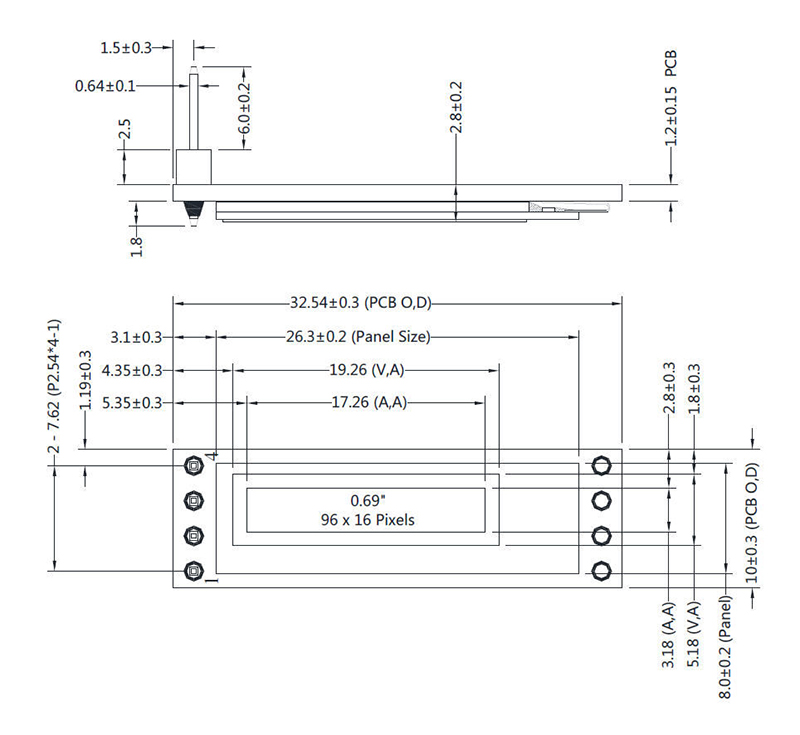

Dimensions

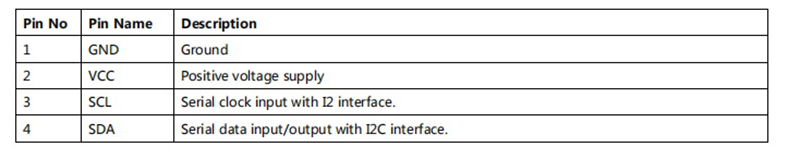

Pin Definitions
