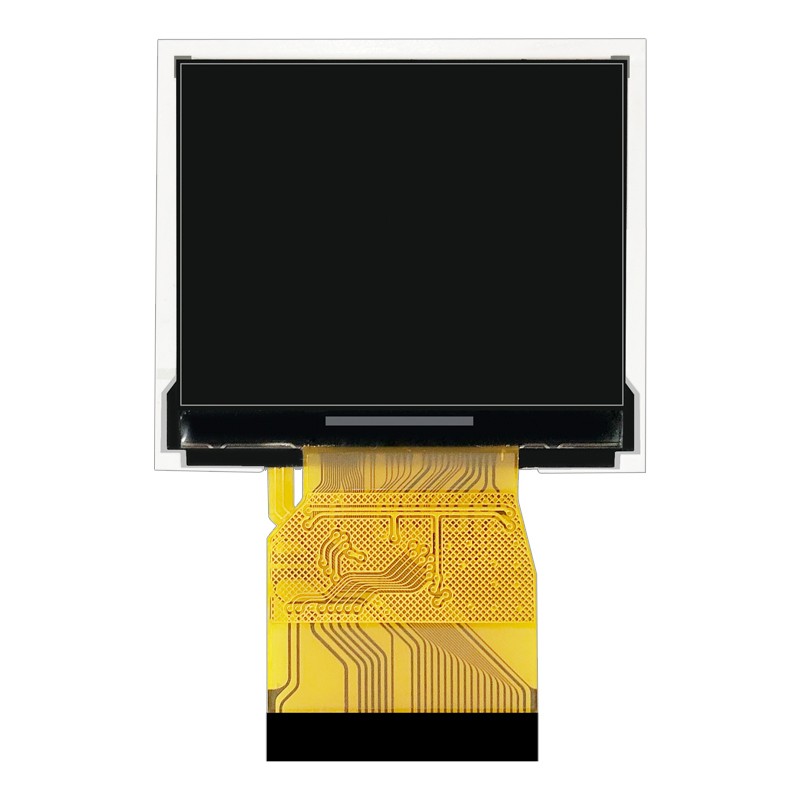

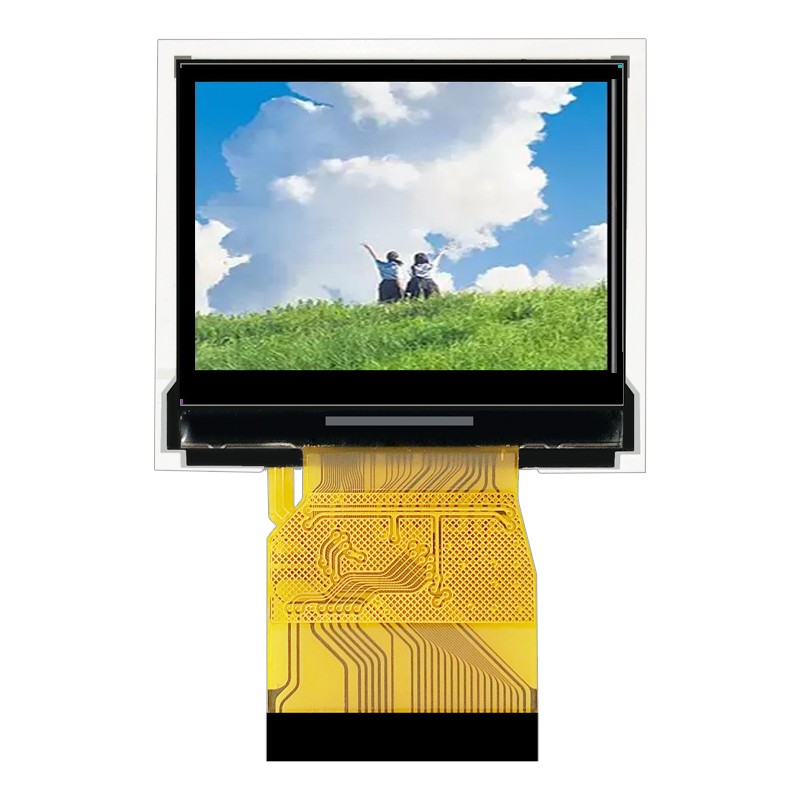

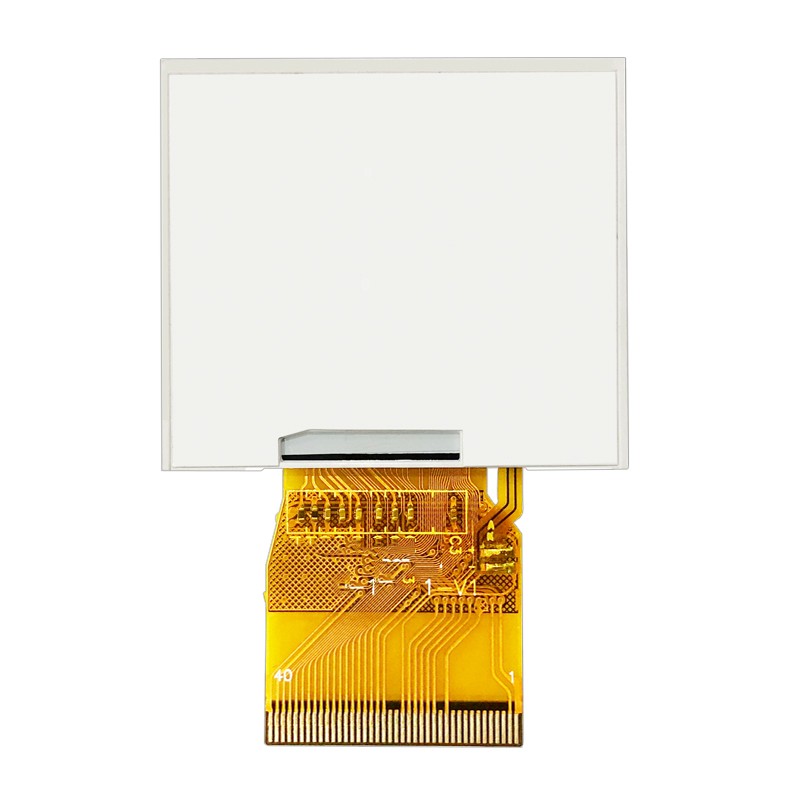

1.5 inch 480x240 Color TFT LCD display

Description

This 1.5"TFT is a IPS Mini color TFT LCD display module is made of resolution 480 x RGBx240 pixels,with outline dimension of 37.10 × 32.70× 2.50mm and AA size 29.76×22.32 mm.this 1.44" TFT display builts in OTA5182 Driver IC and supports SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution: 480 x RGB x 240
• View Direction:6 O'clock
• Display Color : RGB 262K
• Power Supply :2.7-3.3 V
• Interface :RGB
• Controller IC :OTA5182
• Pin No: 40P Connector
• Backlight:1 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :37.10 × 32.70× 2.50 mm
• Viewing Area :29.76×22.32 mm
• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

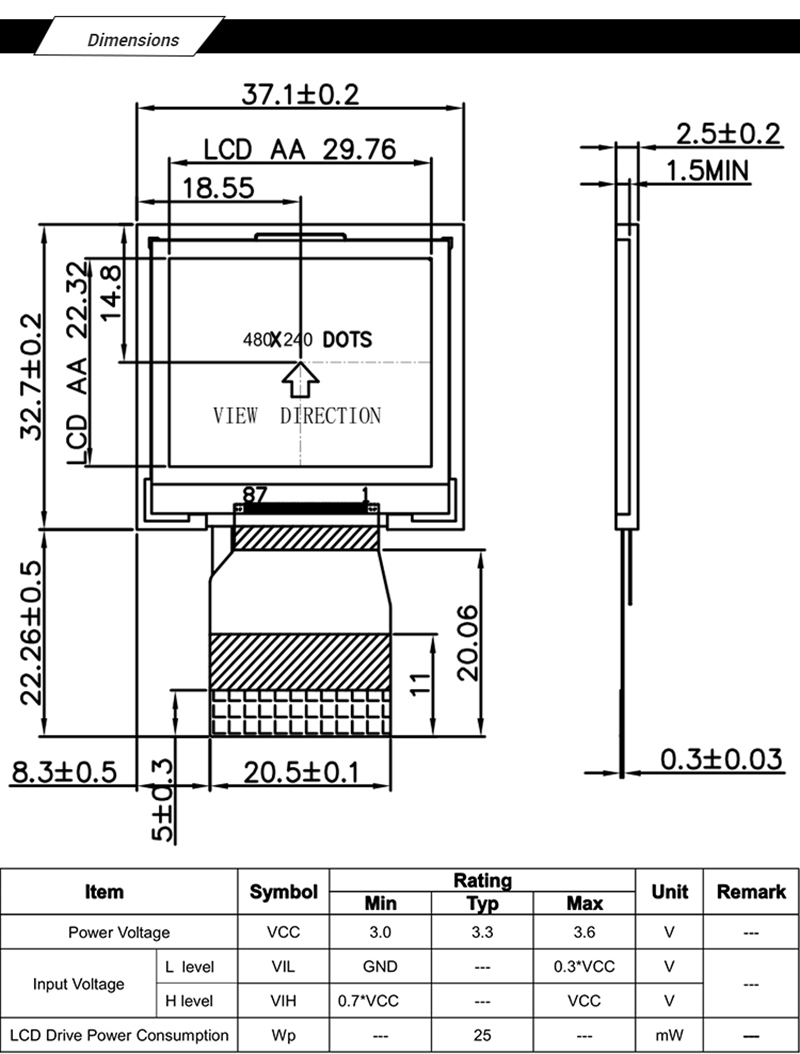

Dimensions

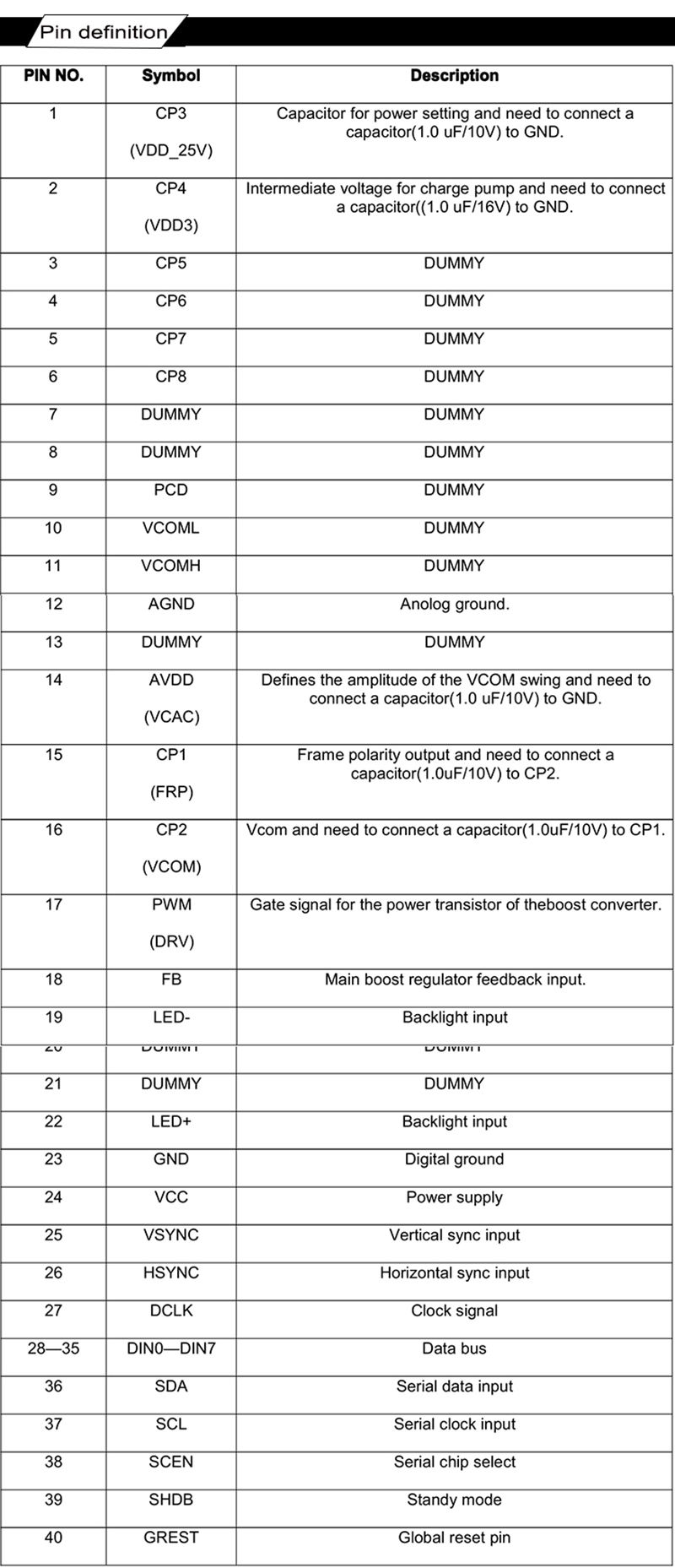

Pin Definitions
