1.44 inch 128x 128 Small TFT LCD Module

Description

This 1.44"TFT is a IPS Mini color TFT LCD display module is made of resolution 128X128 pixels,with outline dimension of 32.26(W ) × 38.00 (H) × 2.50(T) mm and AA size 25.4976(W) x26.5 (H) mm.this 1.44" TFT display builts in ILI9143C Driver IC and supports MCU interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution: 128(RGB) X128
• View Direction:12 O'clock
• Display Color : RGB 262K
• Power Supply :2.7-3.3 V
• Interface :SPI
• Controller IC :ILI9143C
• Pin No: 29P Soldering
• Dot pitch:0.1992 x 0.207 mm
• Backlight:1 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :32.26(W ) × 38.00 (H) × 2.50(T) mm
• Viewing Area :25.4976(W) x26.5 (H) mm
• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

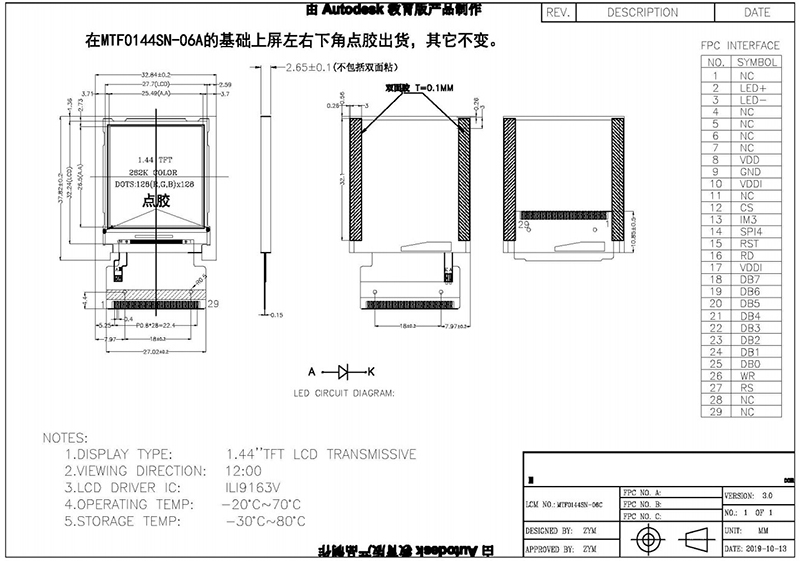

Dimensions

Pin Definitions
