Monochrome Character LCD Module Display 16x1

Category： Character LCD
Size: 2.6 inch Character LCD
Resolution:16 Characters × 1 Line
Driver IC:SPLC780 / ST7066 / AIP31066
Interface:8 bit Parallel
INQUIRY EMAIL

Description

The monochrome 16x1 LCD Module is the Character COB LCD display and made of 16 Characters ×2 Lines,It is with Module Dimension of 80.00(W) x 30.00(H) x 16.5 (T) mm,AA size 59.45 (W) x 64.00 (H) mm.it builts in SPLC780 / ST7066 / AIP31066 controller ic,communicates via 8 bit Parallel interface,The LCD panels are available in STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options.There are different LED backlights are available in various colors including Blue,yellow/green, white...

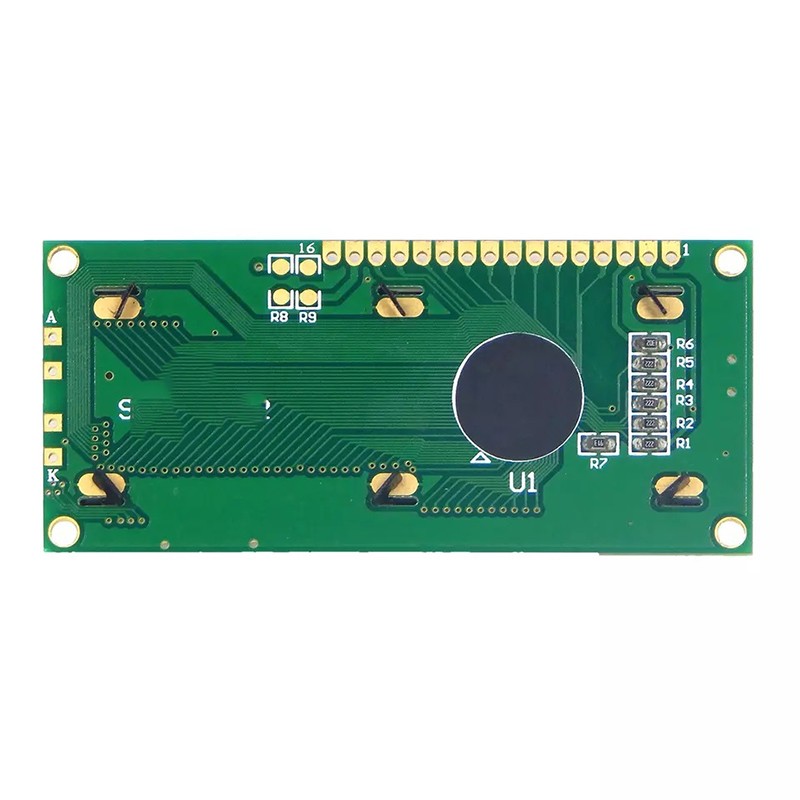

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!

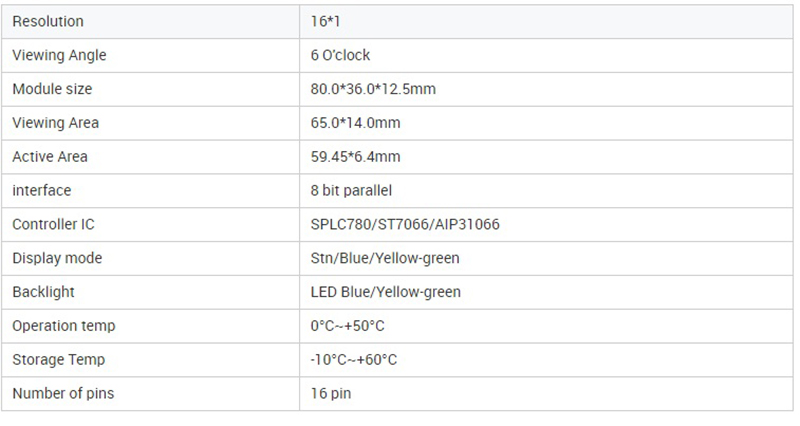

Specifications

Resolution : 16 Characters × 1 Line

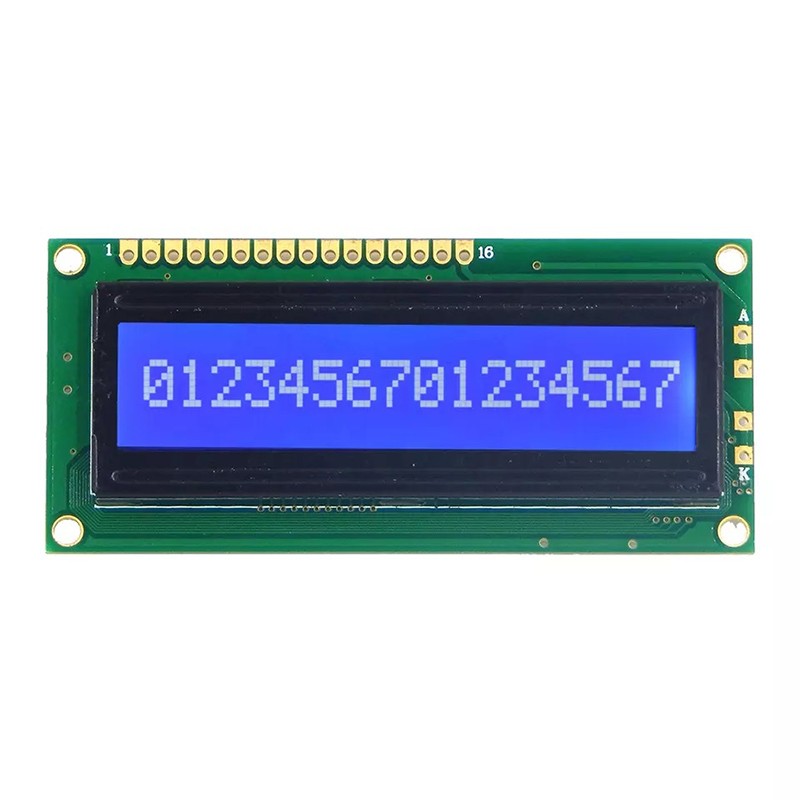

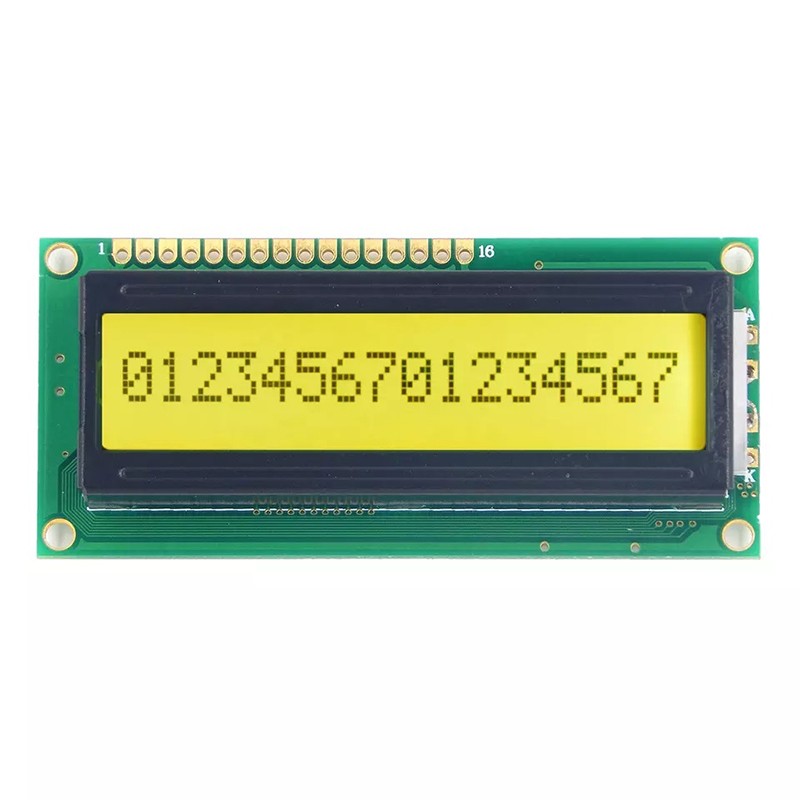

Display Mode : STN /Blue/ Yellow-green
Viewing Angles:6 O'clock
Display Color : Monochrome (blue /Yellow-Green )

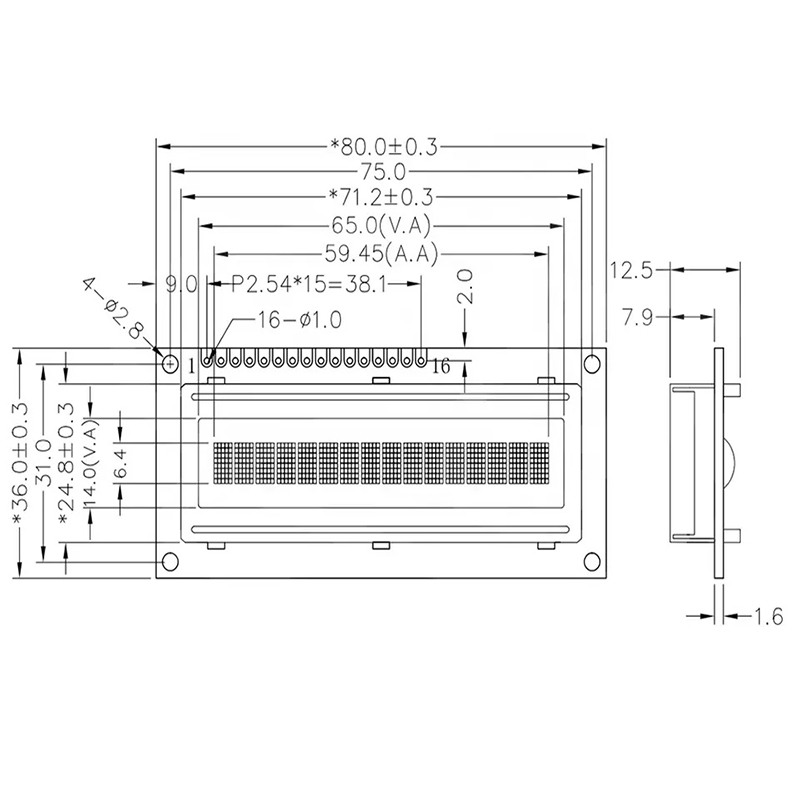

Module Dimension :80.00(W) x 30.00(H) x 16.5 (T) mm
Viewing Area :59.45 (W) x 64.00 (H) mm
Power Supply :3.3 /5 V
Interface : 8 bit Parallel
Controller IC :SPLC780 / ST7066 / AIP31066
Pin No: 16P
Operation Temperature : 0℃~50℃
Storage Temperature : -10℃~60℃
