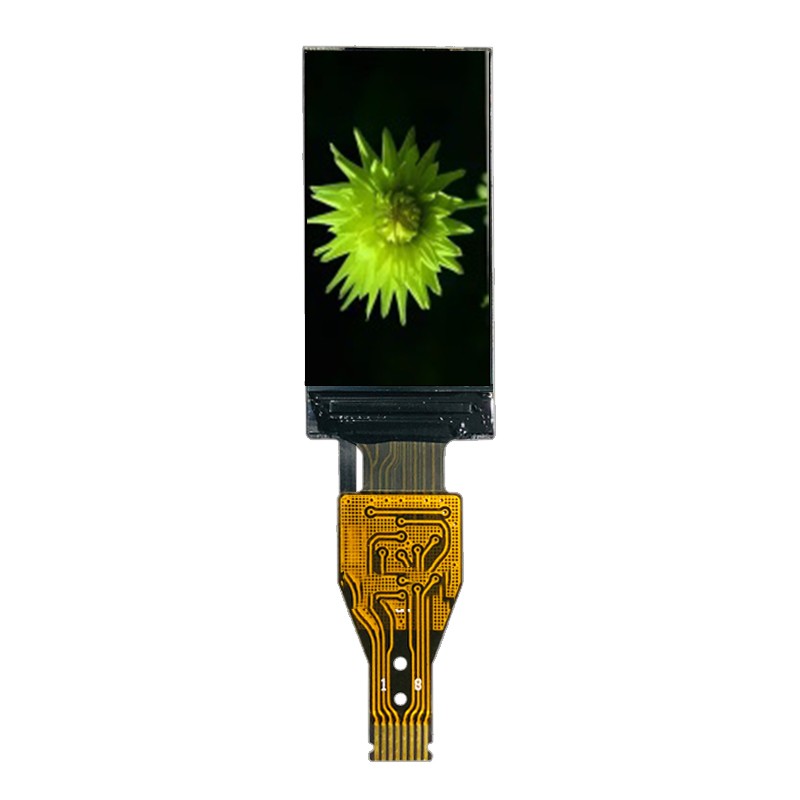

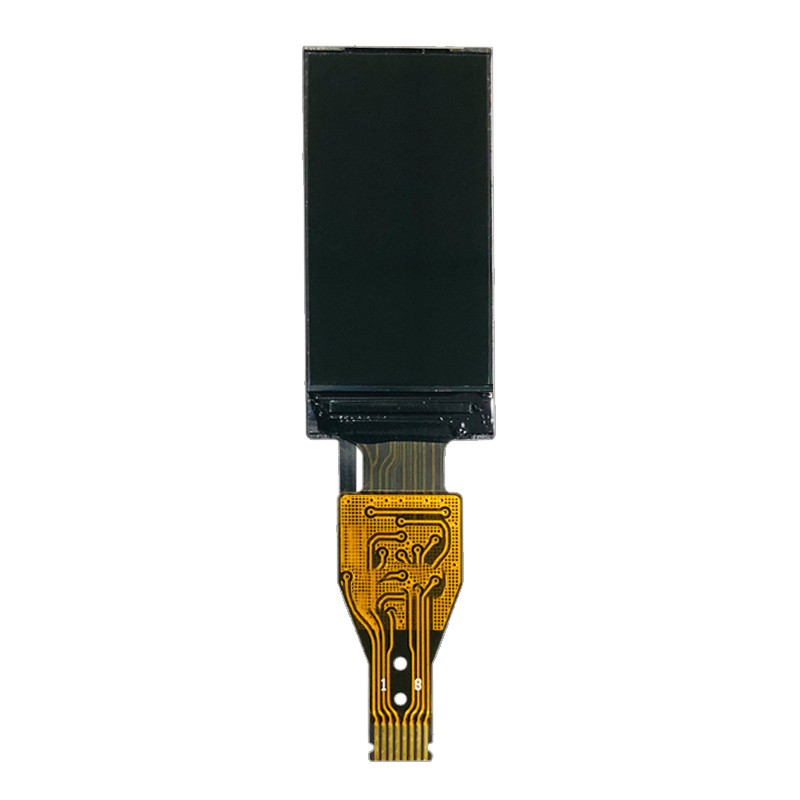

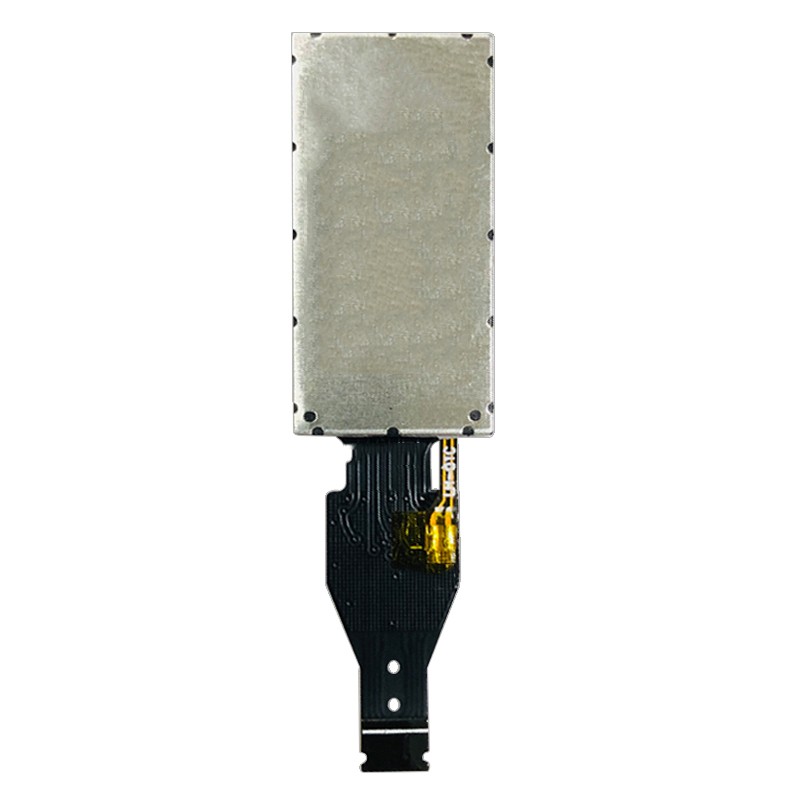

0.96 inch Micro IPS TFT LCD Display 80x160

Description

This 0.96"TFT is a IPS Mini color TFT LCD display module is made of resolution 80 x 160 pixels,with outline dimension of 13.50 × 27.95 x 1.5 mm and AA size 10.8 × 21.7 mm.this 0.96" TFT display builts in ST7735S Driver IC and supports 4-wire SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

Specifications

• Resolution:80x160 dots
• View Direction:IPS
• Display Color : RGB
• Power Supply :2.8-3.0 V
• Interface :  4-Wire SPI
• Controller IC :ST7735S
• Pin No: 8P Connector
• Dot pitch:0.135(H) x 0.1356(V) mm
• Luminance(cd/m2):400 (TYP)
• Backlight:1 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension :13.50 × 27.95 x 1.5  mm
• Viewing Area :10.8 × 21.7 mm

• Touch Screen:without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

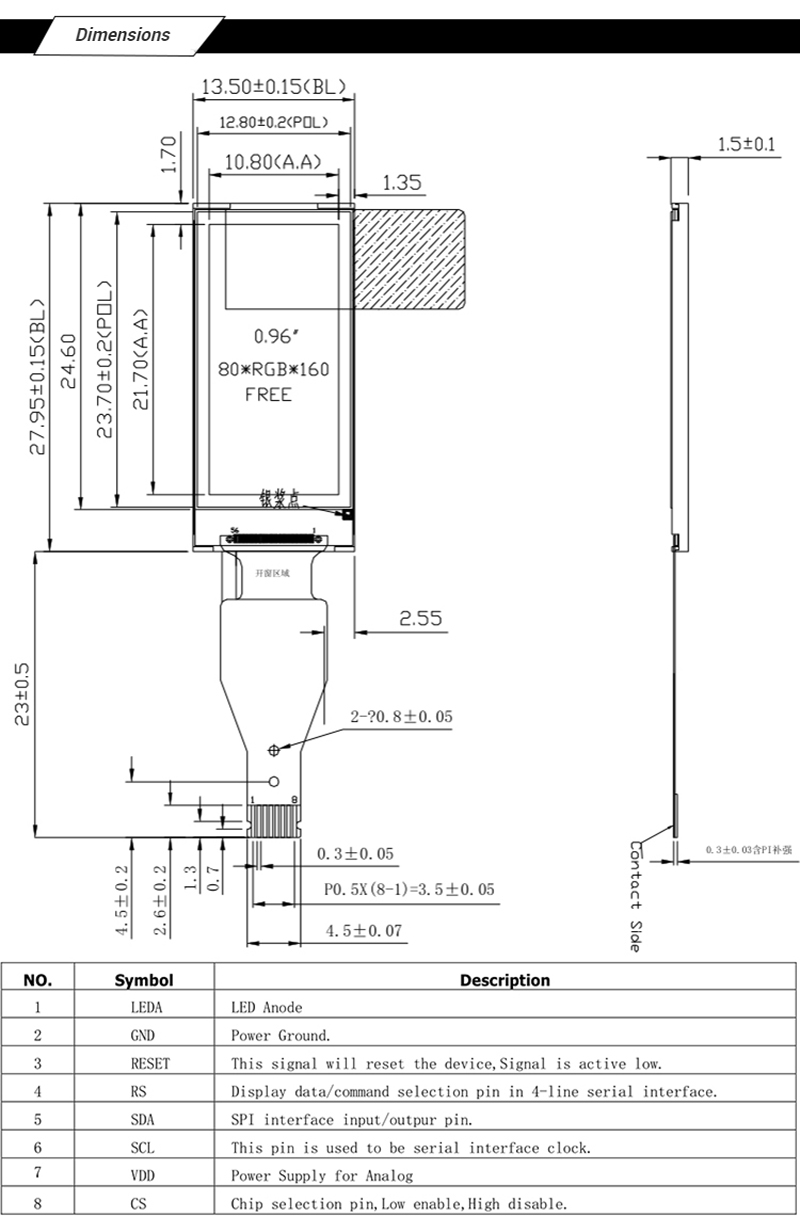

Dimensions

Pin Definitions
