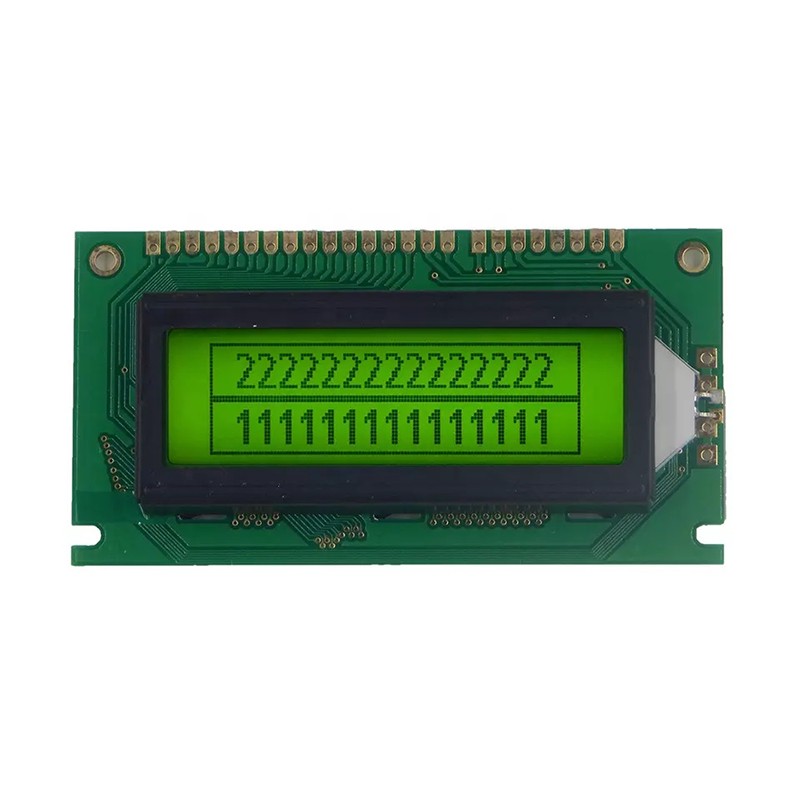

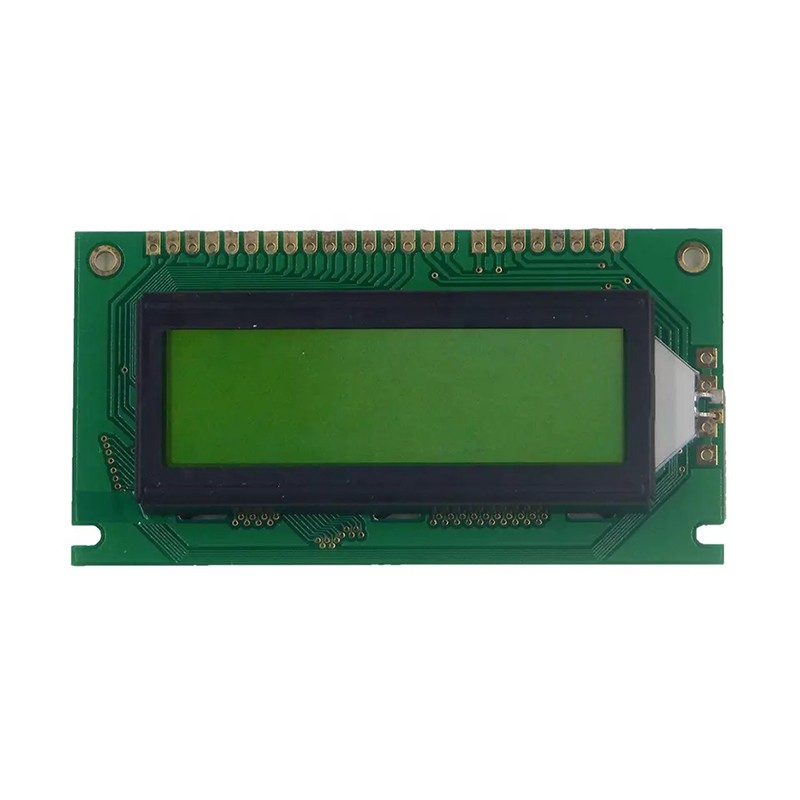

122x32 Graphic LCD Display Module

Description

This 122x32 LCD Display is the graphic LCD display module which is made of 122x32 resolution,with the outline size 84 x 44x13 mm and active area size of 53.6 x 15.6 mm.
This 122x32 graphic LCD display builts in with AIP31020/ST7920 controller IC or compatible controller. It supports parallel/Serial interface and 5V power supply,it also Negative
Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

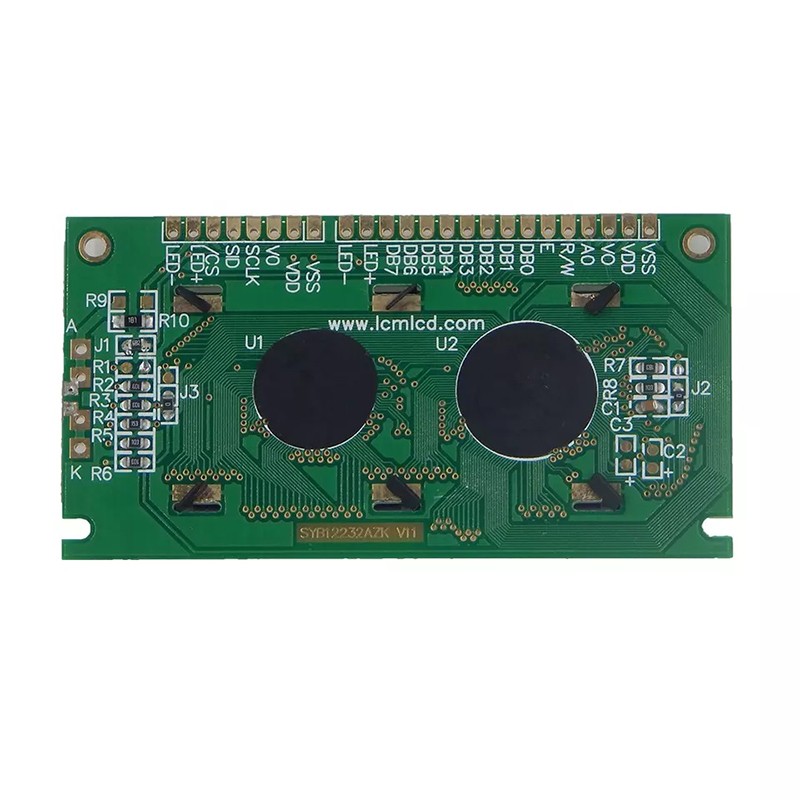

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!

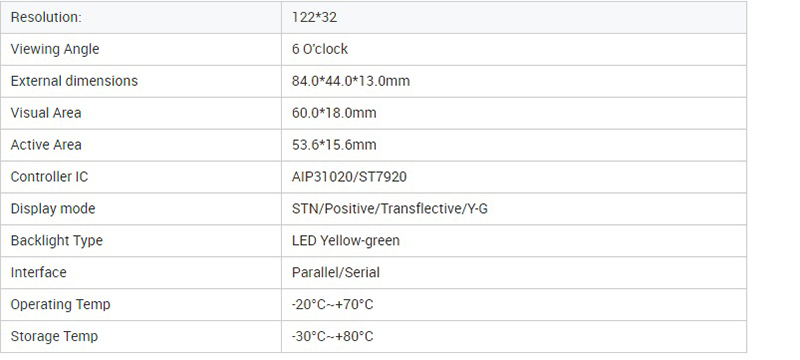

Specifications

• Resolution : 122x32
• Display Mode : STN /Positive/ Transflective/Y-G
• Viewing Angles:6 O'clock
• Display Color : Monochrome (blue /Yellow-Green )
• Module Dimension :84 x 44x13 mm
• Viewing Area :53.6 x 15.6 mm
• Power Supply :3.3 /5 V
• Interface : parallel/Serial
• Controller IC :AIP31020/ST7920
• Pin No: 24P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

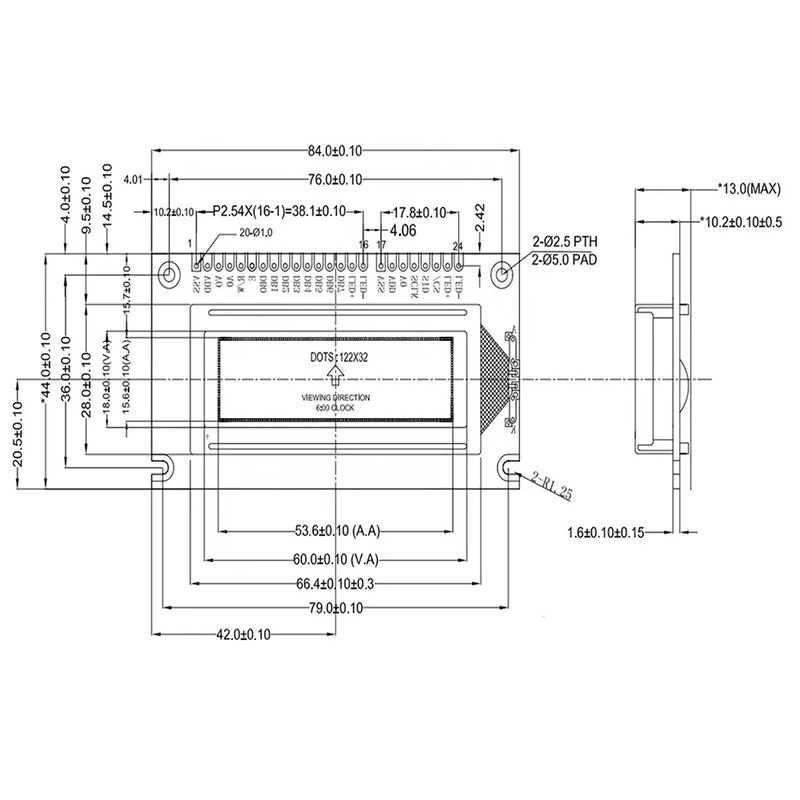

Dimensions
