1.03 inch Micro OLED 2560x2560 1800nits 90HZ Micro display-MIPI

Category： AR/VR Display
Size:1.03 Micro OLED
Resolution:2560XRGBX2560
Brightness:1800cd/m2
Interface: MIPI
INQUIRY EMAIL

Micro AR 1.03 inch Micro OLED Display 2560x2560 for AR (augmented reality) glasses and VR (virtual reality) headset.

Overview

The 1.03 inch Micro OLED, is Micro Si-OLED display screen based on single crystal silicon transistors, thanks to its cutting edge technology with high-end features that brings a perfect choice for virtual reality applications. This Micro Display gives an ultra-sharp 2K resolution 2560x2560 pixels, high luminance 1800nits in typical and 3000nits in Max, a high display contrast ratio of 500000 : 1 (Typ.),which can deliver a crystal clear image with vibrant colors and offer an unparalleled AR VR experience to its users.

Except for its high resolution, this Micro screen is lightweight and portable, which is an ideal oled microdisplay used for virtual reality applications such as AR glasses (augmented glasses),VR ((virtual reality)Headsets, smart glasses,View finders etc.

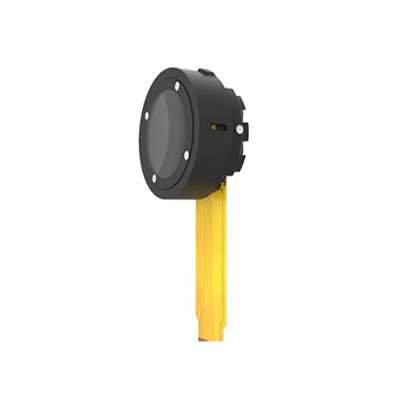

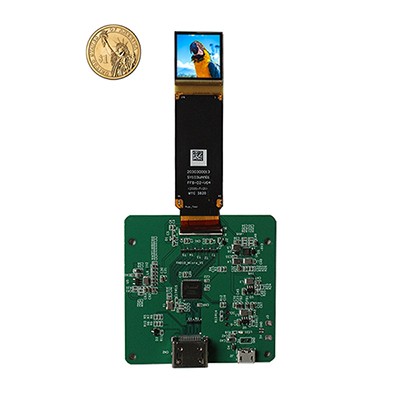

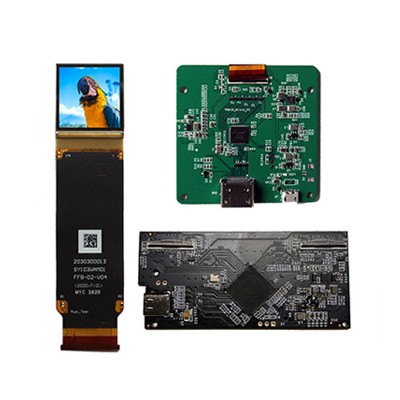

Screen adapter driver board (HDMI Board and TYPE-C) and pancake optics for this Microdisplay to demo.

1.03 inch micro oled 2560x2560 parameter

Diagonal Size：1.03 inch
Display Type：Micro OLED, Micro Si-OLED
Resolution:2560 x RGB×2560 3527PPI
Gray Levels:256
Pixel Size: 7.2umx7.2um
Pixel Format：RGB π type
Orientation：Landscape type
Frame Rate: 60HZ-90HZ

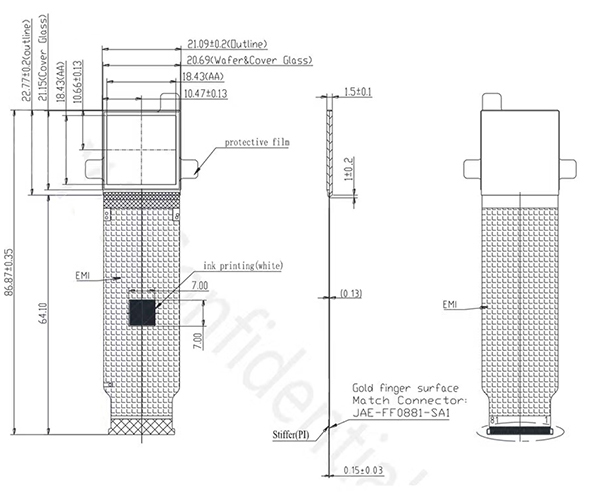

Outline Size：21.09 × 22.77 × 1.58 (H×V×D)
Useable Display Area：18.432 × 18.432 (H×V) mm
Brightness：1800cd/m2 (typ)
Color Depth:16.7M 83% DCI-P3
Contrast Ratio:500000 : 1 (Typ.) (TM)
Interface: MIPII + I2C , 81 pins FPC
Operating Temperature:-20 ~ 70 °C
Storage Temperature:-40 ~ 80 °C
Weight:2g
Application: AR Glasses, VR Headset,HMD(Head mounted displays) ,smart glasses, View finders

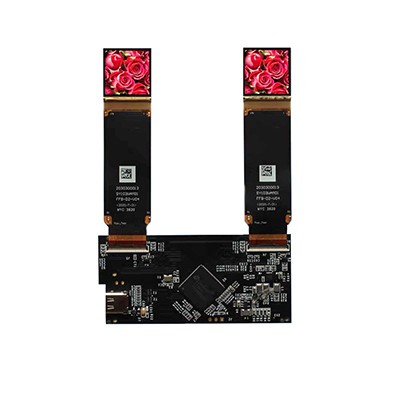

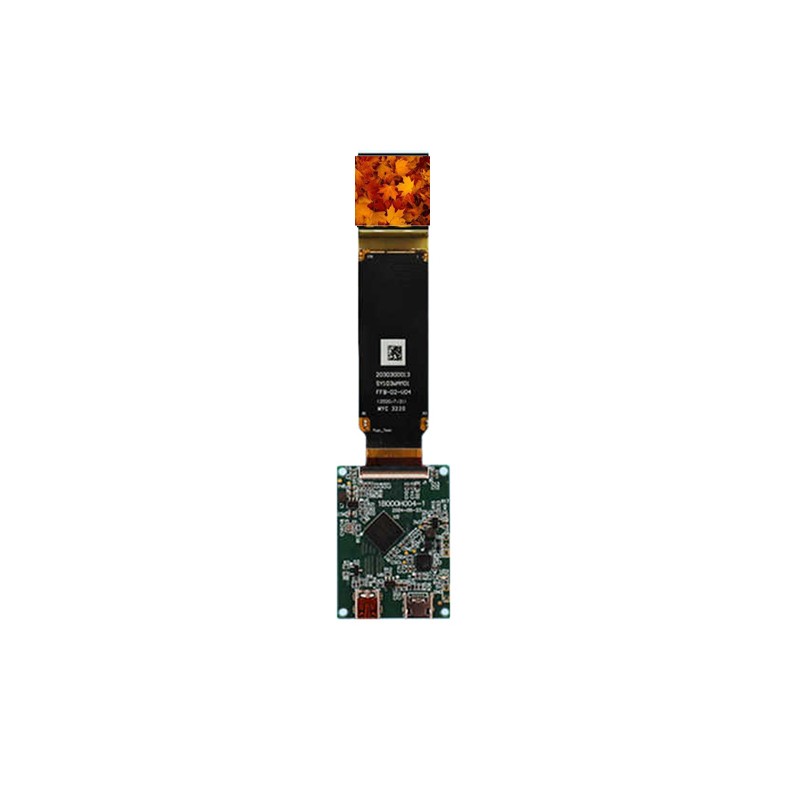

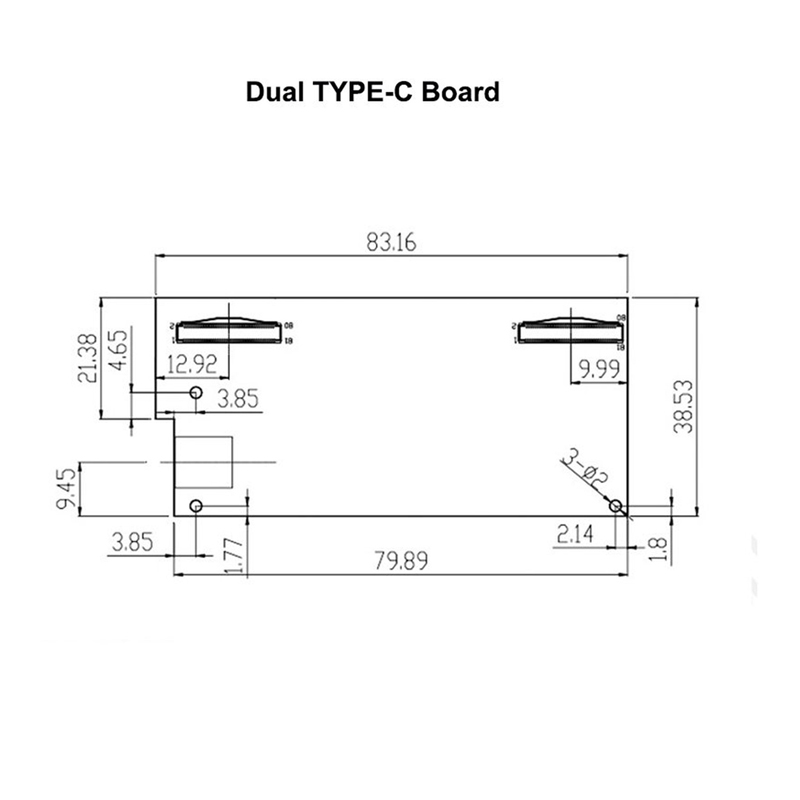

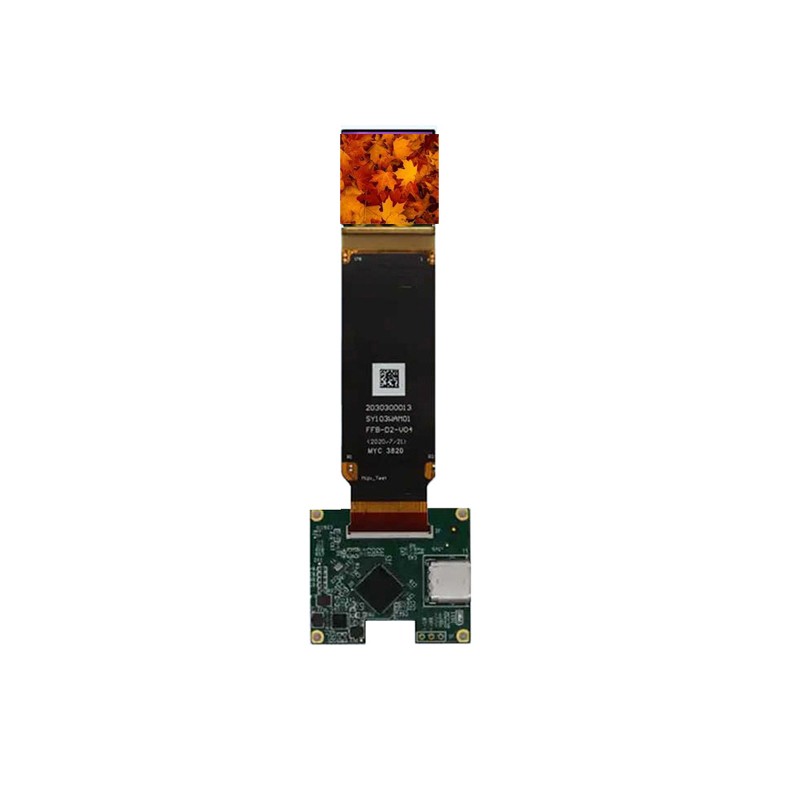

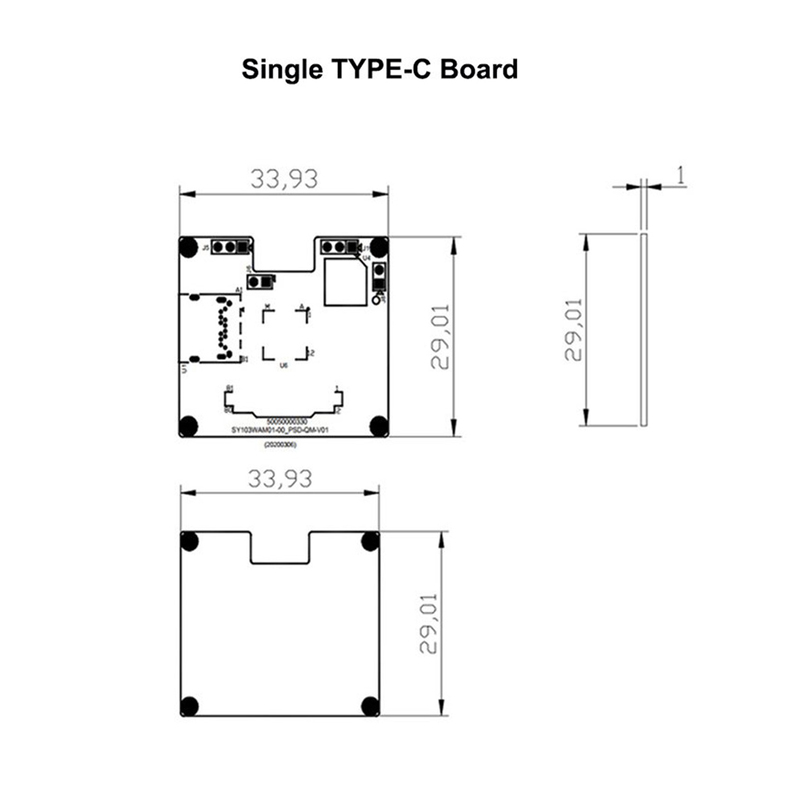

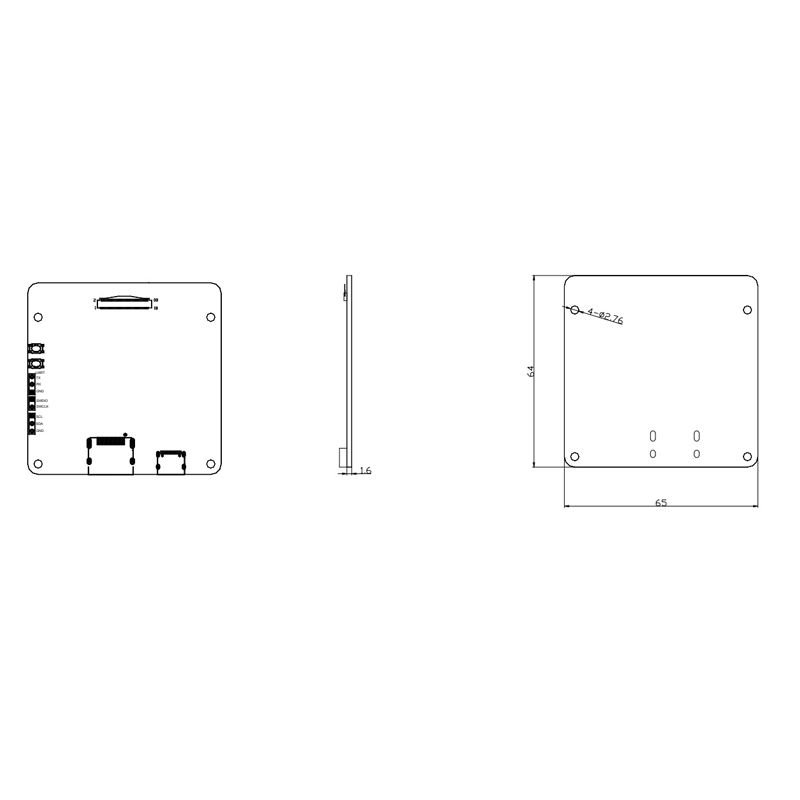

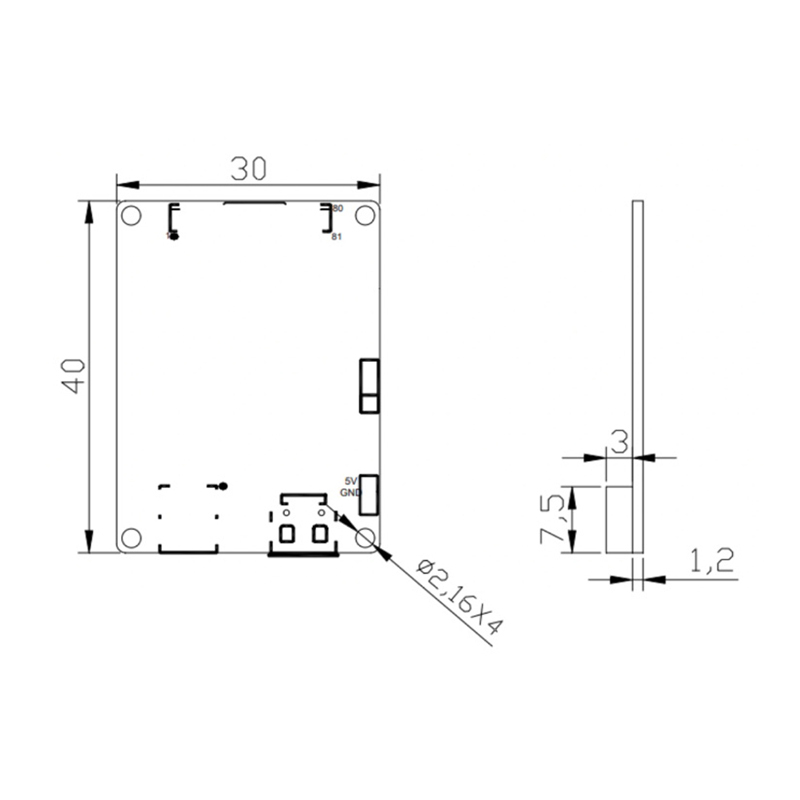

Screen Driver Board: HDMI Driver Board (Monocular/Binocular),TYPE-C Driver Board(Monocular/Binocular)
