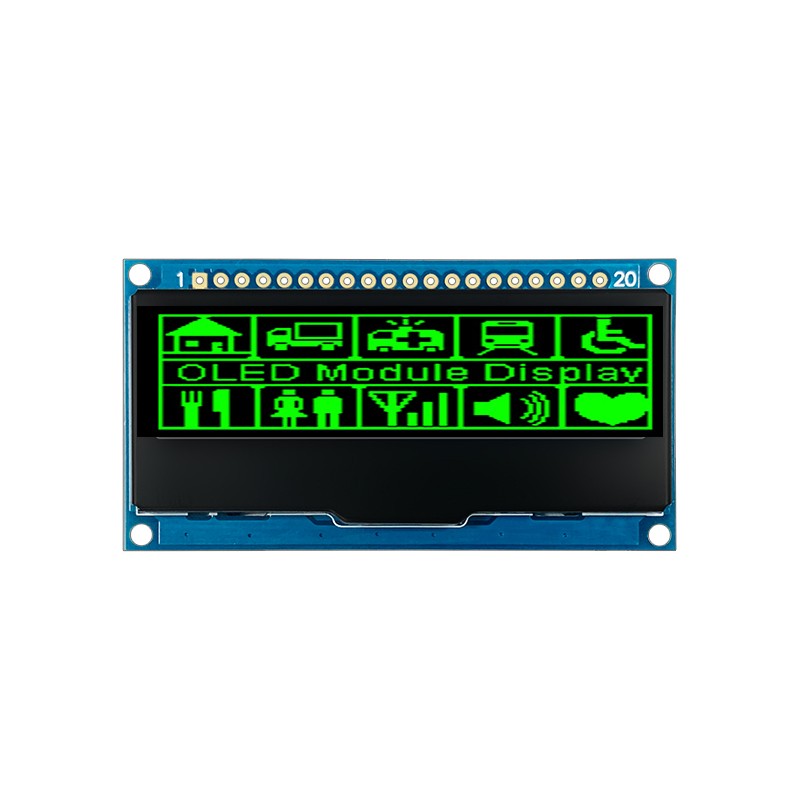

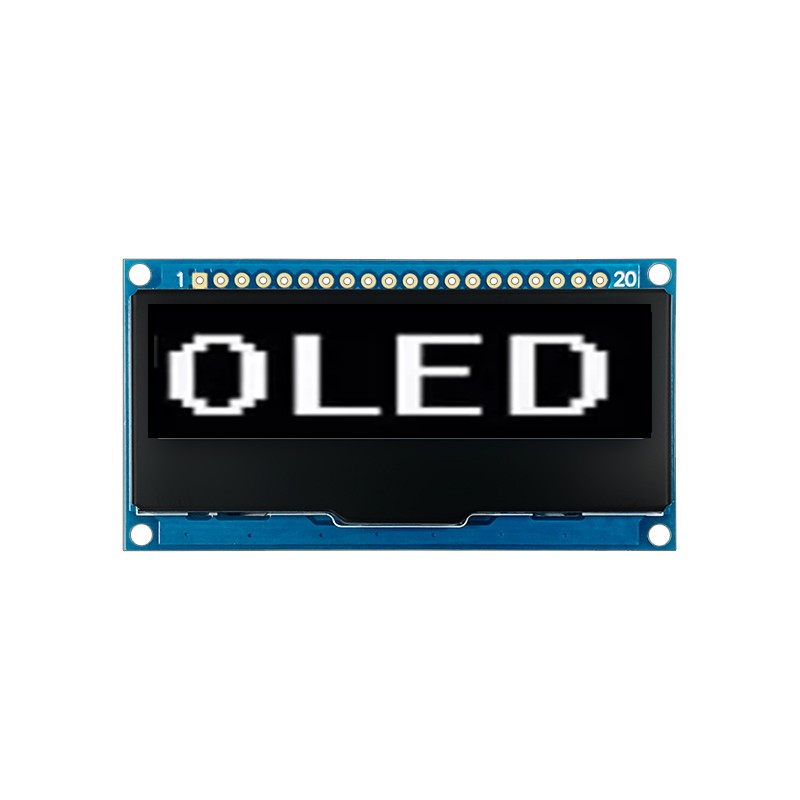

2.23 inch 128x32 Graphic OLED Module

Description

The monochrome 2.23" OLED Module is the graphic COB OLED display and made of 128X32 white OLED pixels, it is with it is with Module Dimension of 63.27 (W) x 43.00(H) x5.8  mm,AA size 60.00 (W) x 18.00 (H) mm.it builts in SSD1305 controller ic,communicates via 6800, 8080, SPI, I2C serial interface. this OLED Module is Small,lightweight, low power consumption since it only powers the pixels that is necessary,suitable for industrial equipments,any embedded systems,medical and hand-held devices,securities.

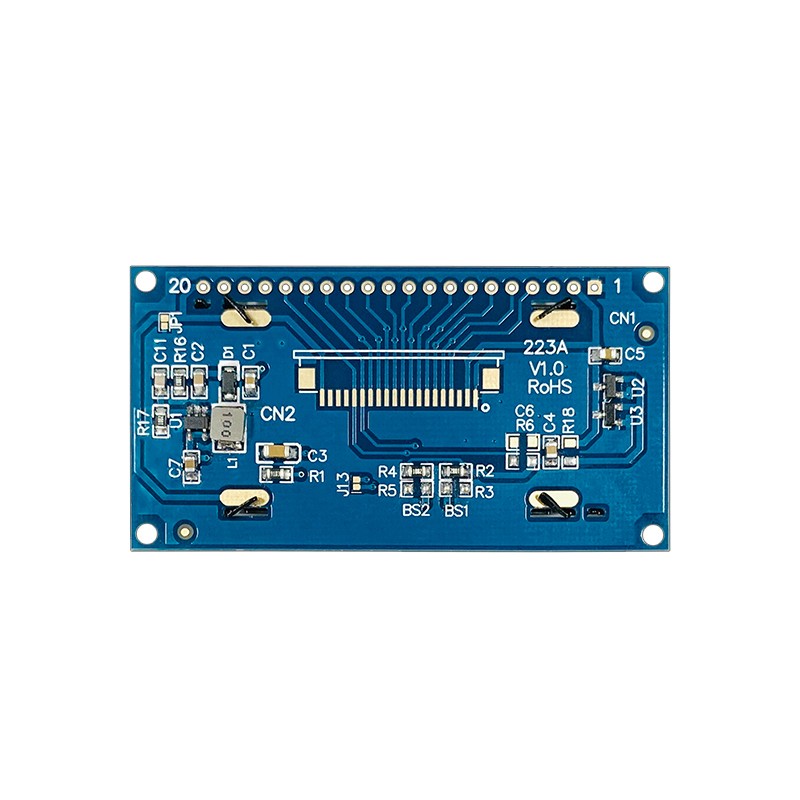

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!




Specifications

• Resolution :128x32 Dot Matrix COB OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS

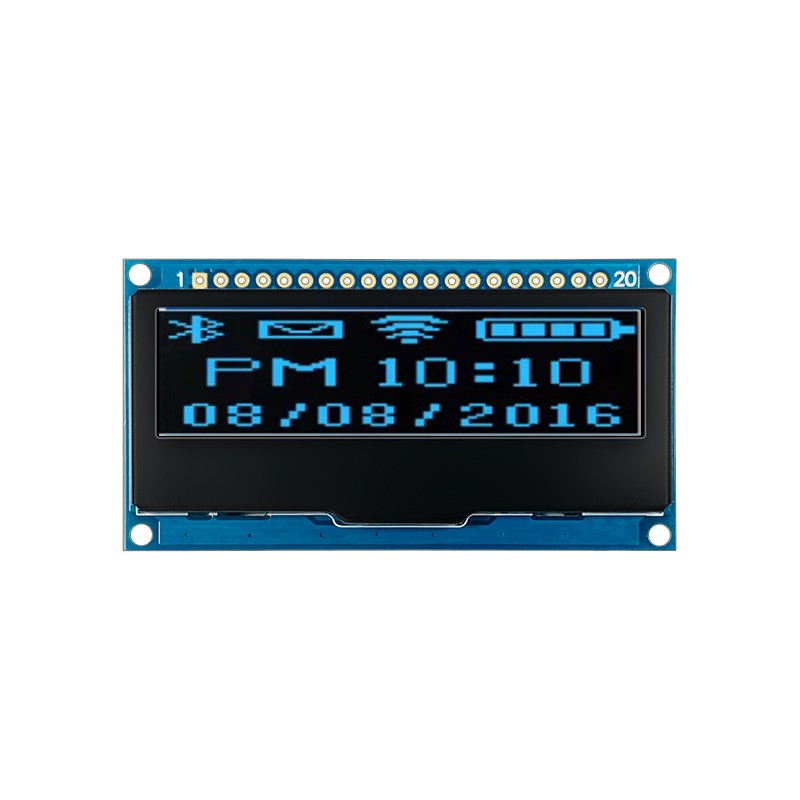

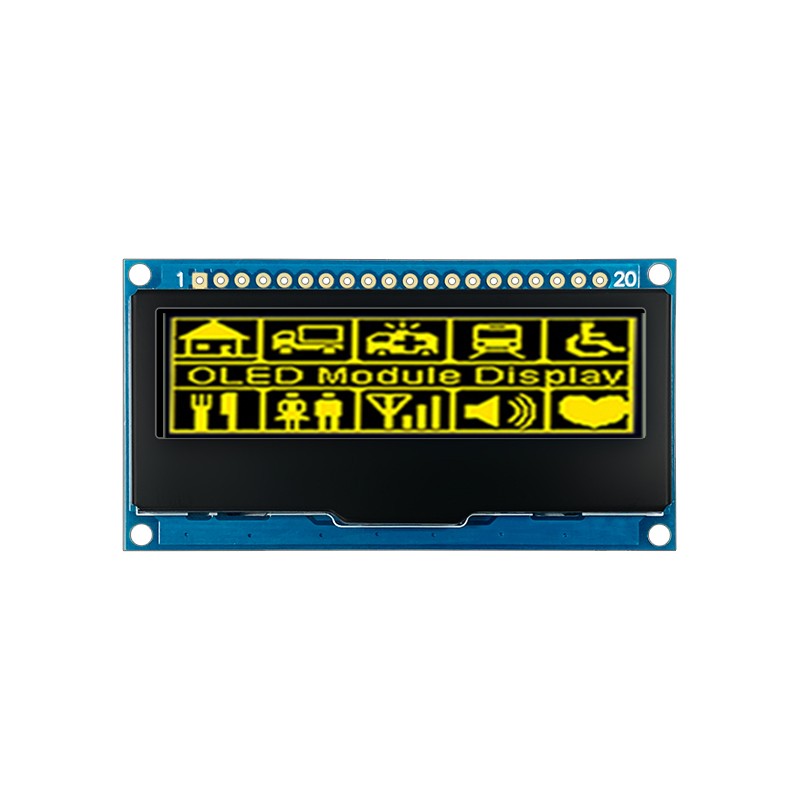

• Display Color : Monochrome (White /Blue/Yellow/Green)
• Module Dimension :63.27 (W) x 43.00(H) x5.8 mm
• Viewing Area :60.00 (W) x 18.00  (H) mm
• Power Supply :2.4-3.6 V
• Interface :6800, 8080, SPI, I2C
• Controller IC :SSD1305
• Dot (Pixel) Size:0.39x 0.39

• Dot (Pixel) Pitch:0.43 x 0.43 mm
• Pin No: 20 P
• Operation Temperature : -30℃~80℃
• Storage Temperature : -40℃~90℃

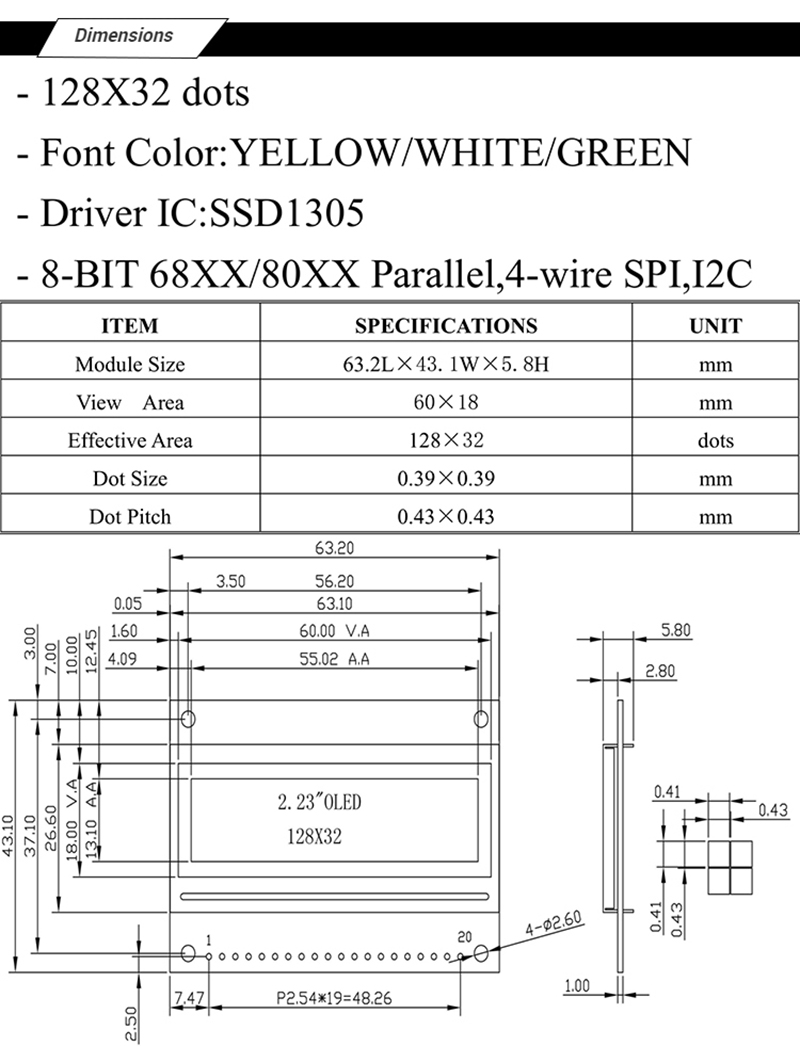

Dimensions

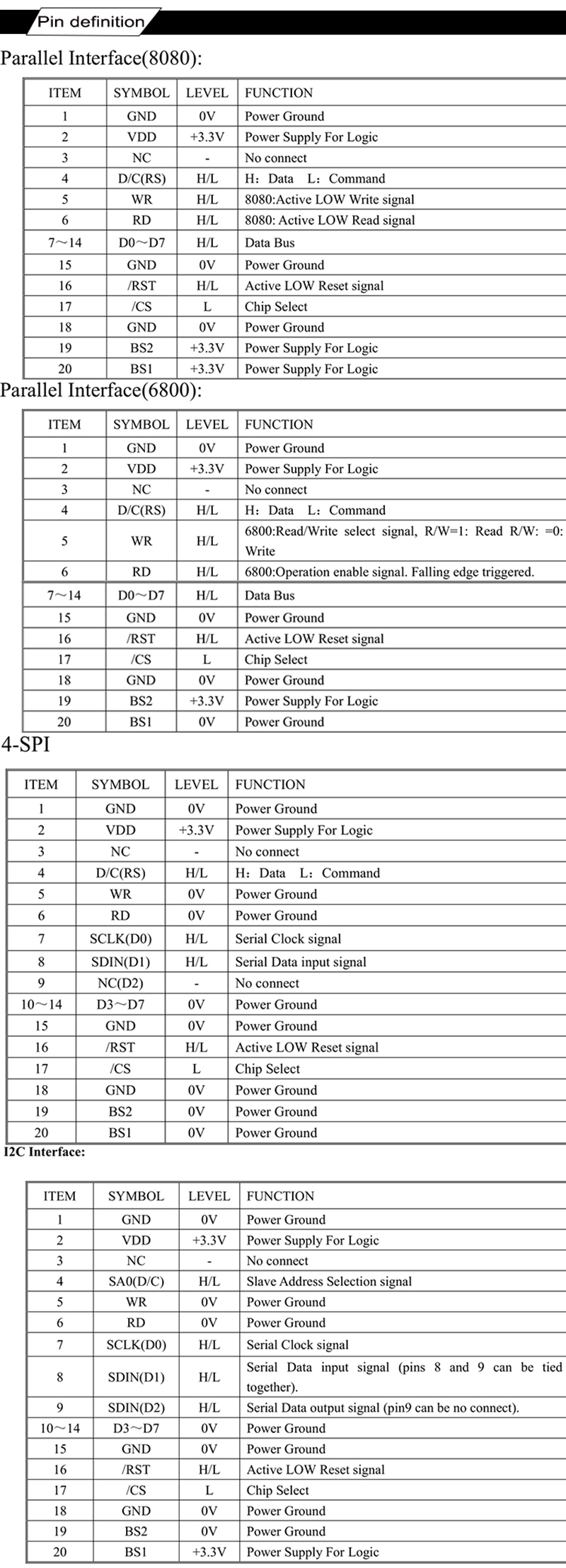

Pin Definitions
