Micro Display 0.71 Inch 1920x1080 FHD OLED Dual Eyes Board for AR/VR

Category： AR/VR Display
Size:0.71 inch OLED Display
Resolution:1920(RGB) × 1080
Brightness:500 cd/m2
Driver Board: HDMI Port
INQUIRY EMAIL

0.71inch 1920x1080 Micro Display FHD 1080P OLED screen 0.7 Inch ECX335AF high Brightness Monitor Display

Overview

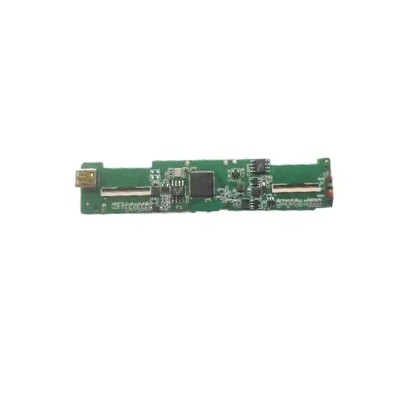

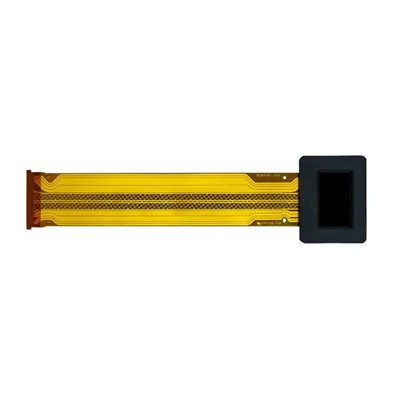

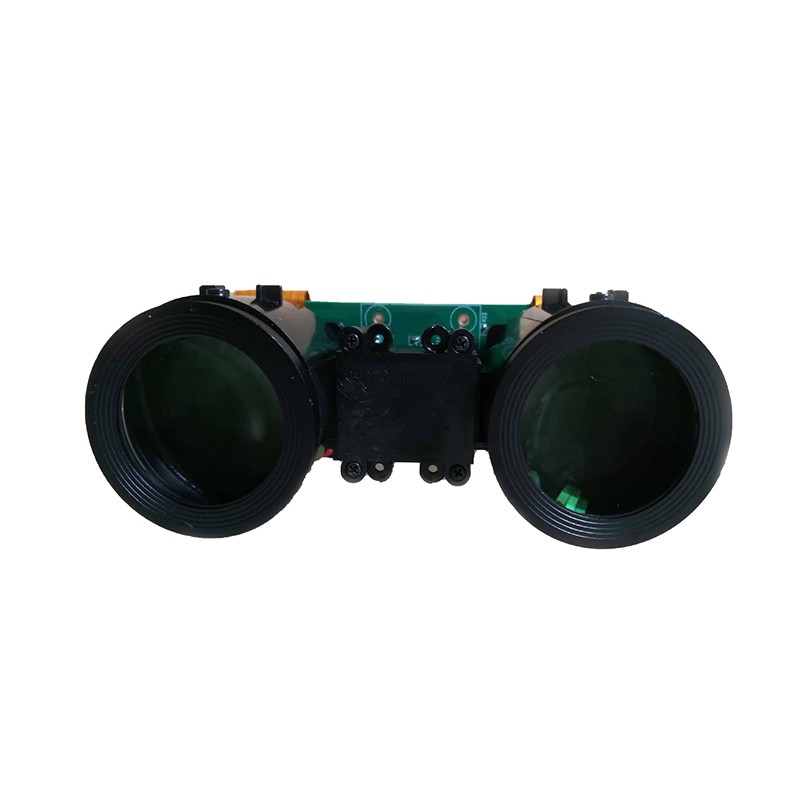

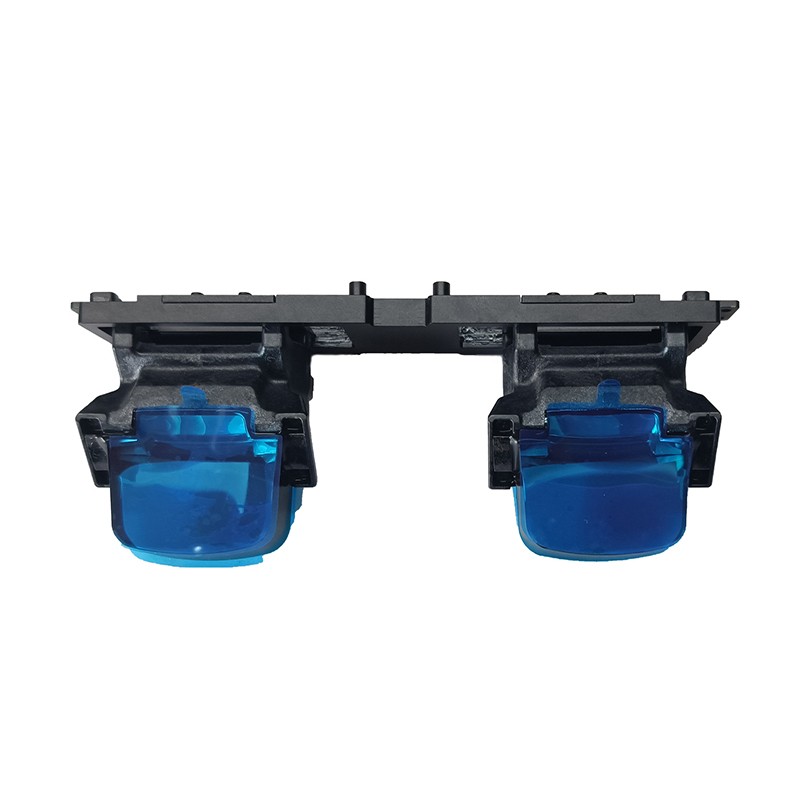

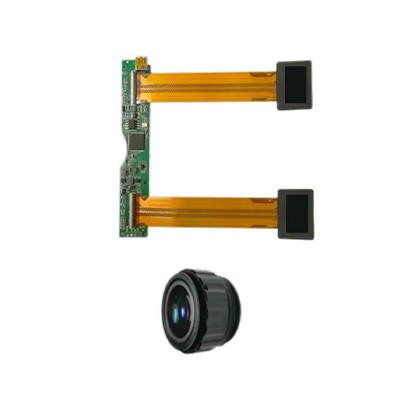

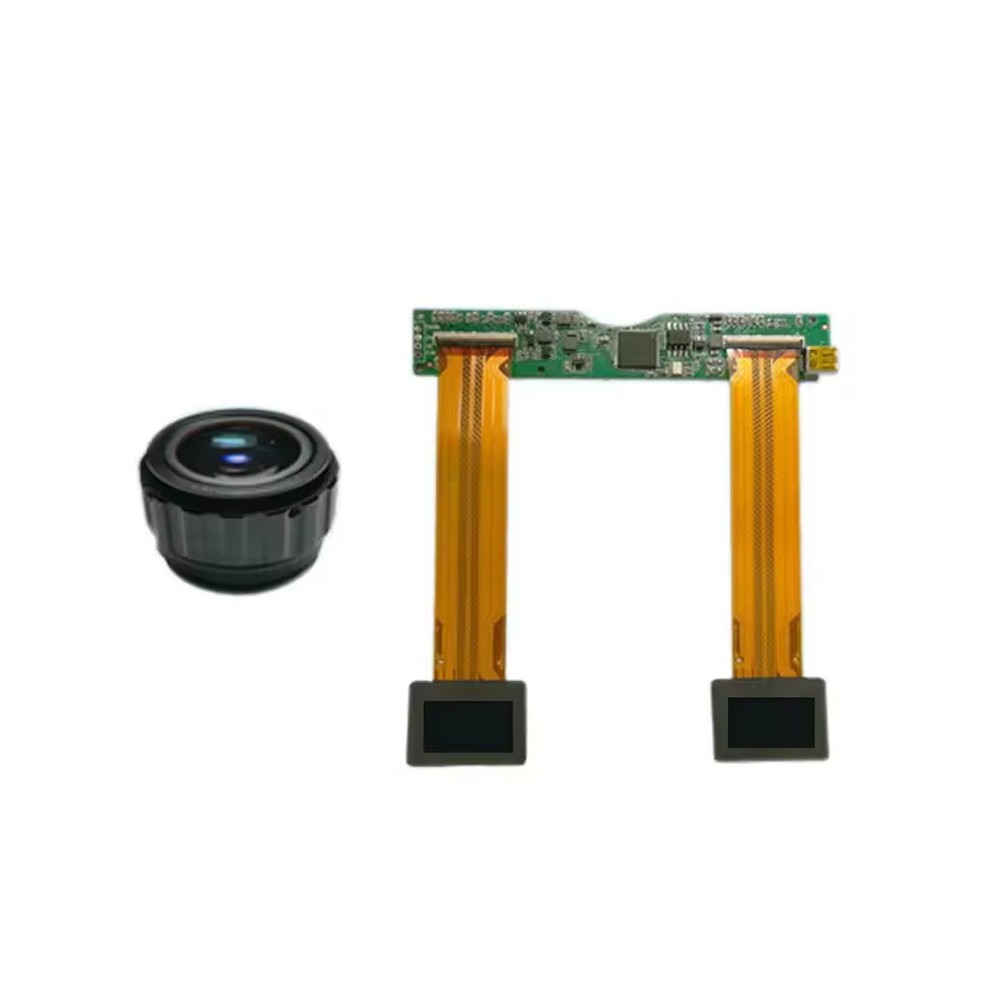

This Micro OLED Display module consists of Dual 0.71'' 1080P OLED screens+Optical Magnifying Lens+HDMI-A controller board+Connecting cables. the screen Brightness can be adjusted through the button in the HDMI driver board and 2D/3D display modes can be switched. and the 0.71" micro oled display is SONY ECX335AF Oled microdisplay with a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 high resolution and up 500nits high brightness, using single crystal silicon transistors. This Micro display panel incorporates panel driver and logic driver, and realizes small size, light weight and high definition.

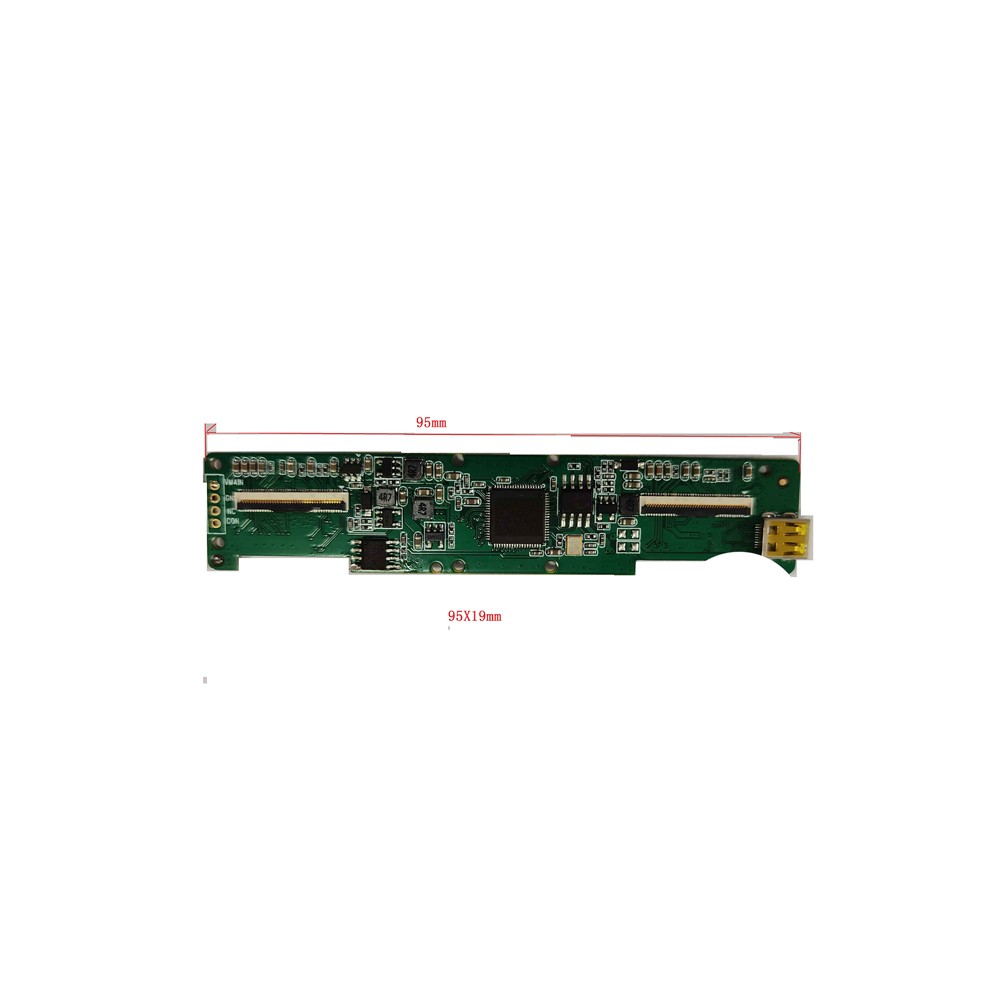

The display adapter board can test 2 pcs of the 0.71" Micro oled display, this micro screen is applied for viewfinder, helmet mounted display, very small monitors etc.

0.71" Micro Display Screen Parameter

◆Display Type:OLED Display
◆Display Size:0.71"
◆Display Color:Full color
◆Resolution: 1920(RGB) × 1080
◆Luminance:500 cd/m2
◆Pin No:81P
◆Driver Board: HDMI Port
◆Optics: Resin Optics
◆Module Dimension:25.24x99.50x0.15 (mm)
◆Operatingn Temperature : -10℃~70℃
◆Storage Temperature : -30℃~80℃

Application Areas

◆ The electronic viewfinder of the digital camera / camera

◆) Portable civilian equipment such as micro projector, video glasses, head entertainment equipment, 3D display, game helmet and so on.

◆ Security monitoring, military use: single soldier helmet display, electronic sight, infrared night vision instrument, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection visual device.

◆ Medical and industrial applications: man-machine visual engineering research, endoscopy, portable B-ultrasound, vision correction equipment, spectacles, various portable testing equipment

◆Aero model: aerial, remote control aircraft parameter display system, remote control car video display terminal, etc.

◆ Minerals: coal exploration, metal mineral exploration

0.71" Micro oled screen Features

◆ Small size high definition type 0.70 display dots: 1920 (RGB)×1080 = 6.22 M dots
◆ High contrast
◆ Wide color reproduction range
◆ High-speed response
◆ Thin type and light weight
◆ Power saving function
◆ Up/down and/or right/left inverse display function
◆ Orbit supported
