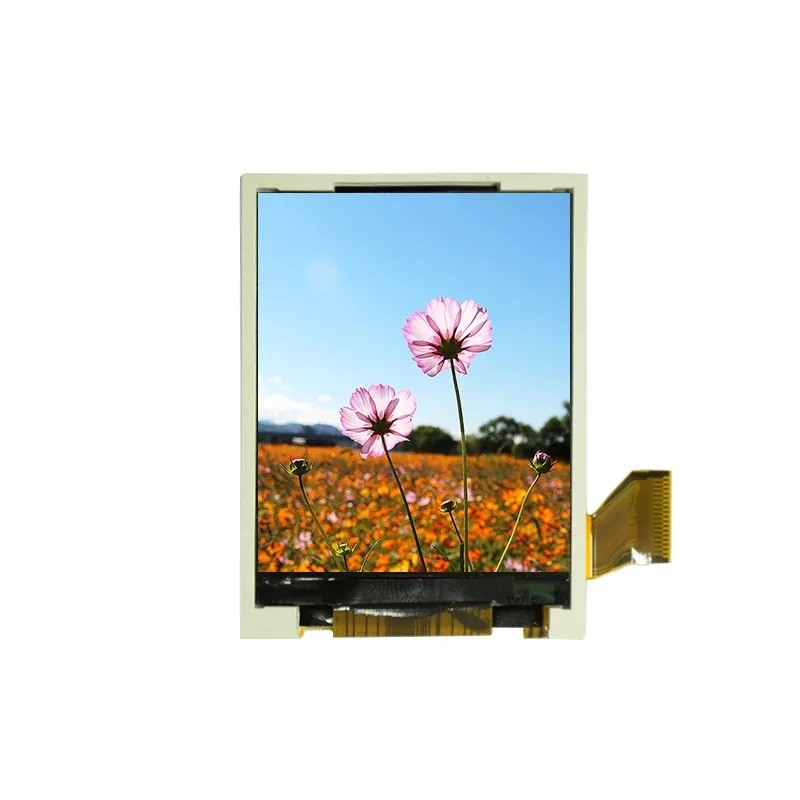

2.2 inch SPI TFT LCD Module 176X220

Description

This 2.2"TFT is a IPS Mini color TFT LCD display module is made of resolution176x RGBx220 pixels,with outline dimension of 42.1(H) x 56.6(V) x 4.2(D) mm and AA size 34.85 x 43.56 mm.this 2.2" TFT display builts in ILI9225C Driver IC and supports MCU interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:176x(RGB)x220
• View Direction:12 O'clock
• Display Color : RGB 262K
• Power Supply :3-3.6 V
• Interface :  MCU
• Controller IC :ST7789
• Pin No: 35P Connector
• Backlight: 4 Chip-LED White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension: 42.1(H) x 56.6(V) x 4.2(D) mm
• Viewing Area :34.85 x 43.56  mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

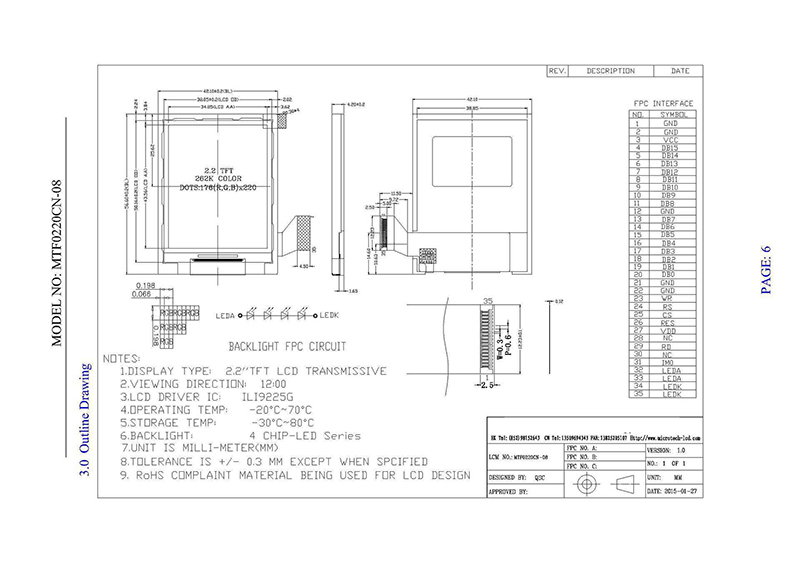

Dimensions
