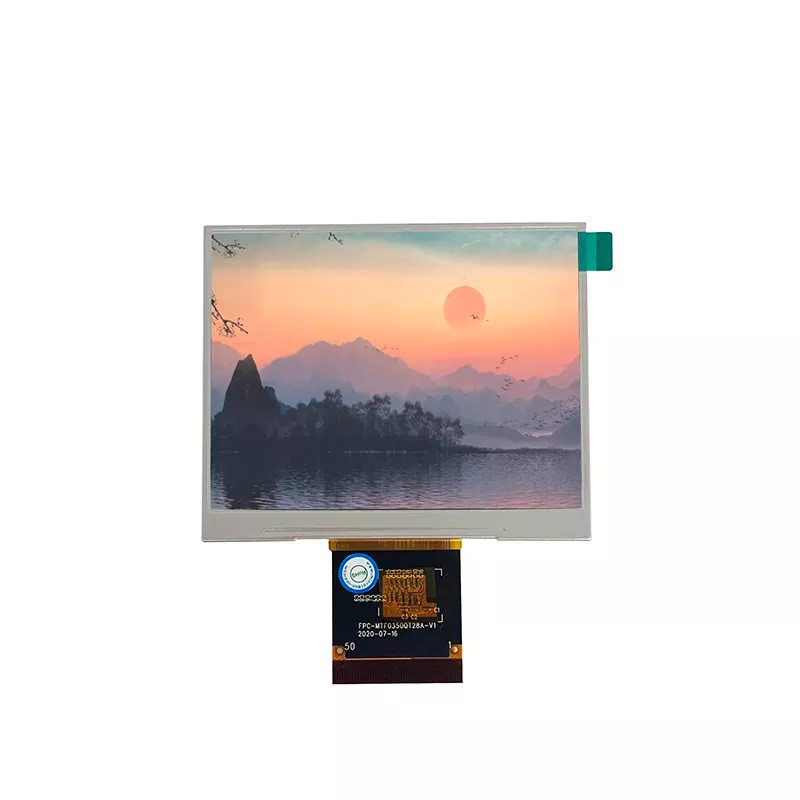

3.5 inch TFT LCD Screen Display 320x240 with touch screen panel

Description

This 3.5"TFT is a IPS Mini color TFT LCD display module is made of resolution 320x RGBx240 pixels,with outline dimension of 76.84(H) × 63.84(V) × 3.15(T) mm and AA size 70.08(W) x52.56(H) mm.this 3.5" TFT display builts inSSD2119 Driver IC and supports 4-wires Serial interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

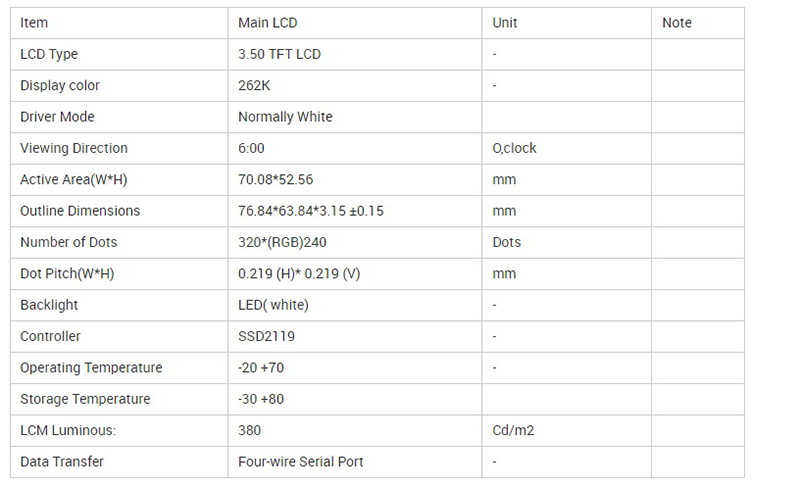

• Resolution:320x(RGB)x240
• View Direction:6 O'clock
• Display Color : RGB 262k
• Power Supply :2.7-2.9 V
• Interface :4-wires Serial
• Controller IC :SSD2119
• Pin No: 50P
• Dot pitch:0.219(H)x0.219(V) mm
• Luminance(cd/m2):380 (TYP)

• Backlight:White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:76.84(H) × 63.84(V) × 3.15(T) mm
• Viewing Area :70.08(W) x52.56(H) mm
• Touch Screen:with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

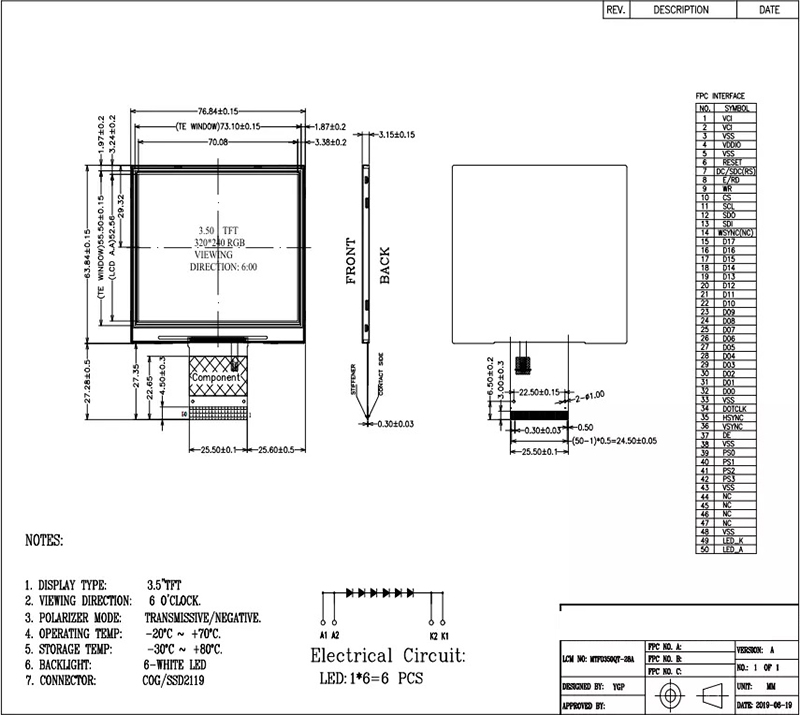

Dimensions
