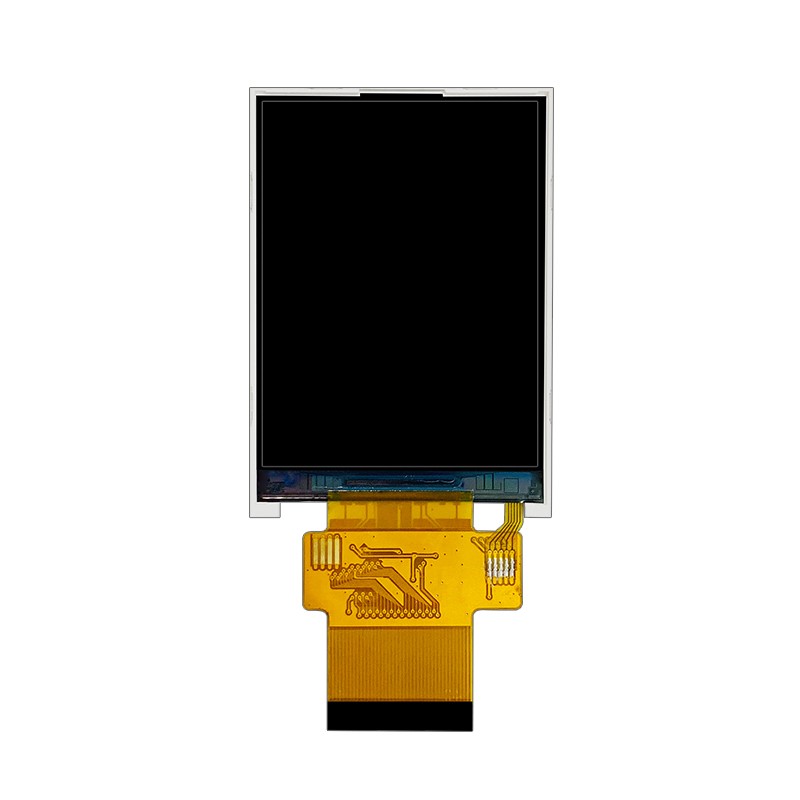

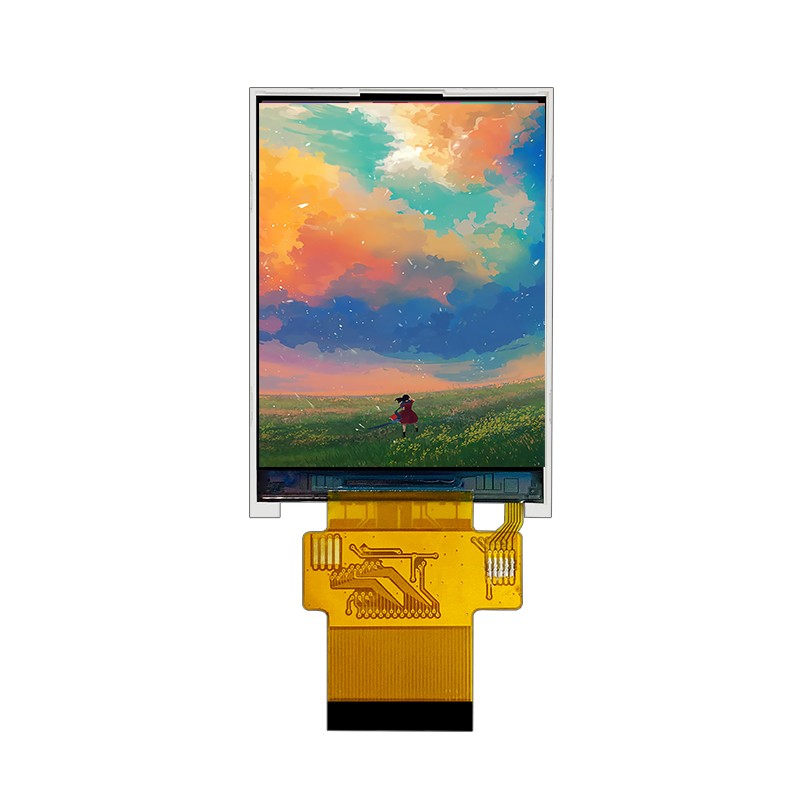

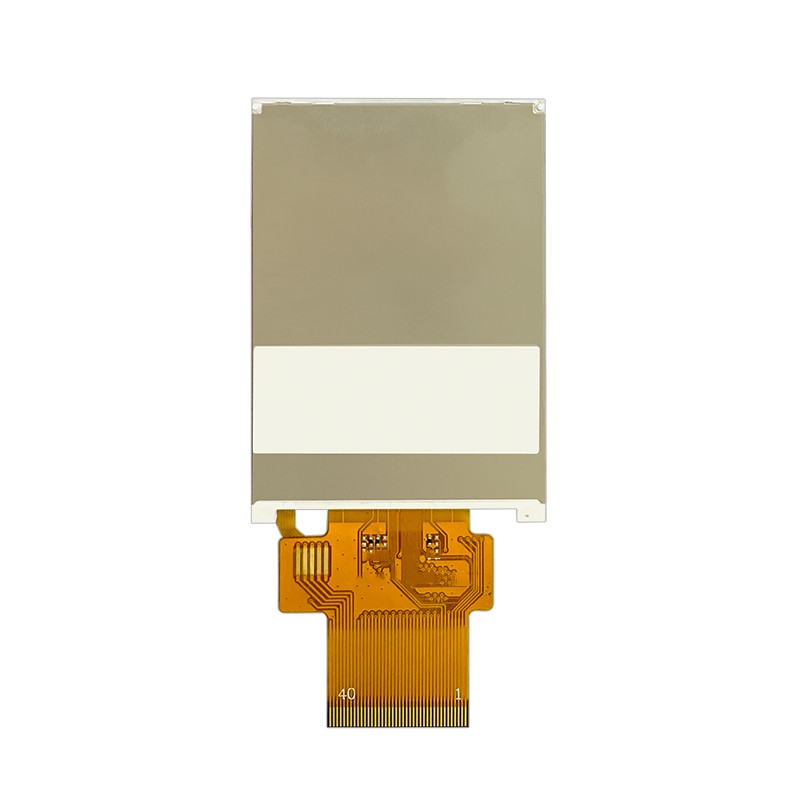

2.4 inch TFT LCD Module 240x320

Description

This 2.4"TFT is a IPS Mini color TFT LCD display module is made of resolution 240x RGBx320 pixels,with outline dimension of 42.32(H) ×59.91× 2.40(V)
mm and AA size  36.72(H) X48.96(V) mm.this 2.4" TFT display builts in ST7789 Driver IC and supports MCU/SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:240x(RGB)x320
• View Direction:ALL O'clock
• Display Color : RGB 262K
• Power Supply :2.5-3.5 V
• Interface : MCU/SPI
• Controller IC :ST7789
• Pin No: 40P Connector
• Backlight: White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension: 42.32(H) ×59.91× 2.40(V) mm
• Viewing Area : 36.72(H) X48.96(V) mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

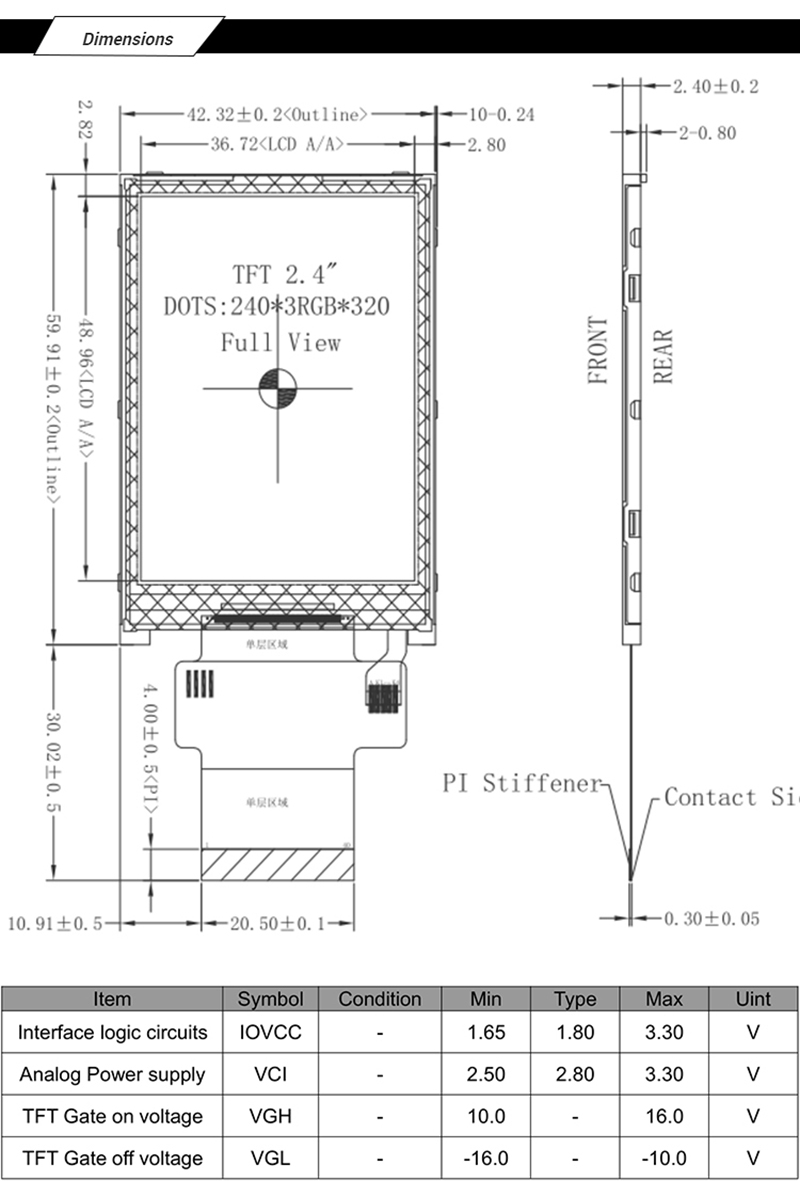

Dimensions

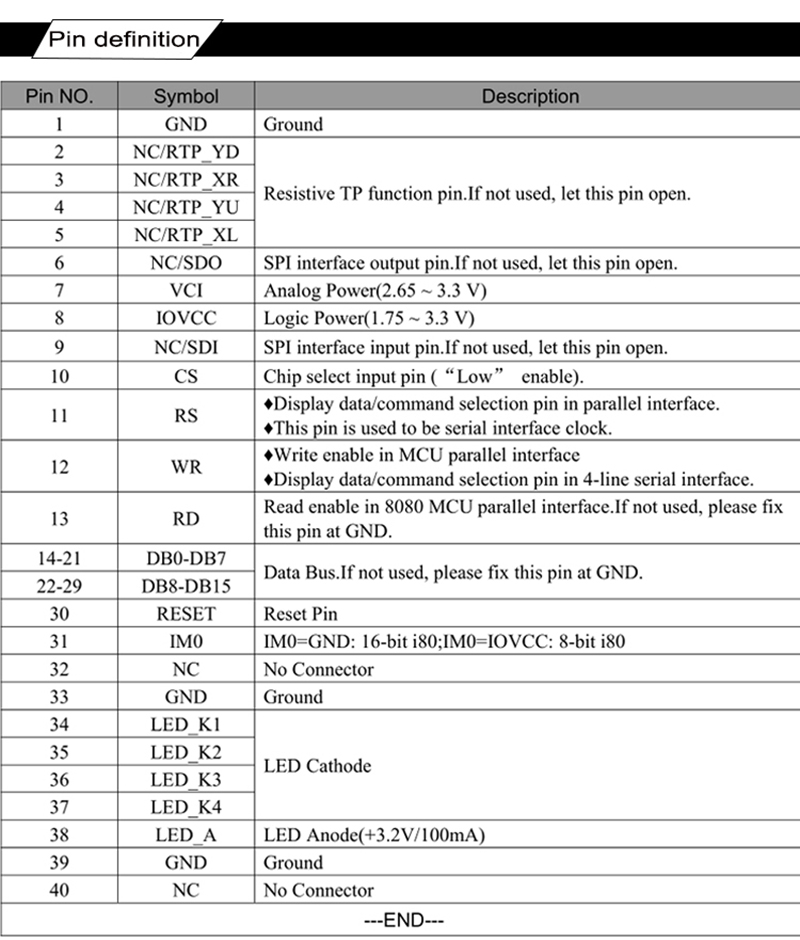

Pin Definitions
