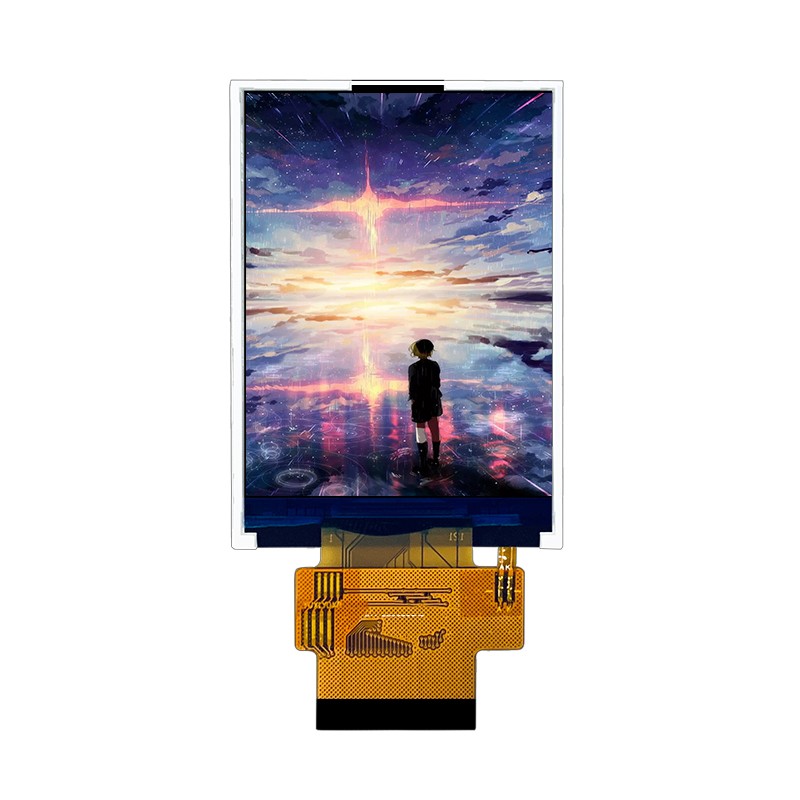

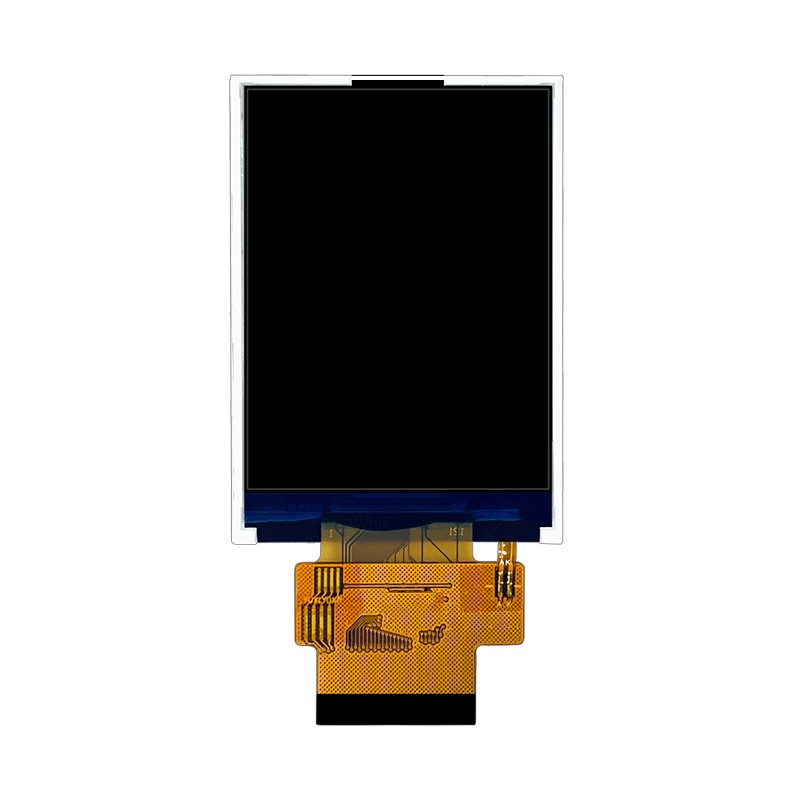

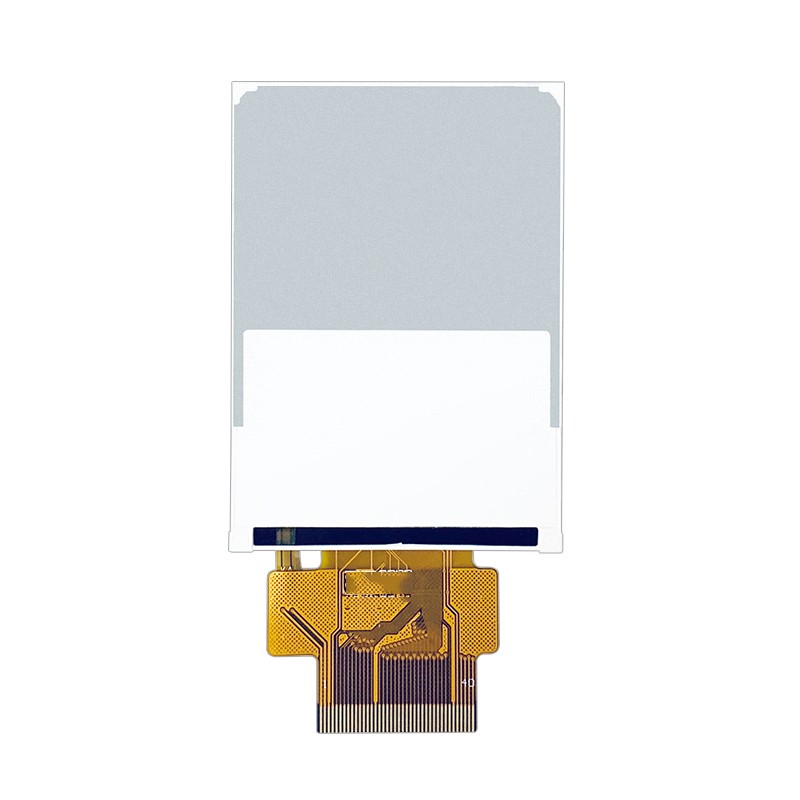

2.4 inch 240x320 TFT LCD Module ST7789

Description

This 2.4"TFT is a IPS Mini color TFT LCD display module is made of resolution 240x RGBx320 pixels,with outline dimension of 42.72(H)X60.26(V)X2.30 mm and AA size 36.72(H)X48.96(V) mm.this 2.4" TFT display builts in 36.72(H)X48.96(V) Driver IC and supports MCU/RGB/SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:240x(RGB)x320
• View Direction:ALL O'clock
• Display Color : RGB 262K
• Power Supply :2.5-3.5 V
• Interface : MCU/RGB/SPI
• Controller IC :ST7789
• Pin No: 40P Connector
• Dot pitch:0.153(H)X0.153(V) mm
• Backlight: White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension: 42.72(H)X60.26(V)X2.30mm
• Viewing Area : 36.72(H)X48.96(V)mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

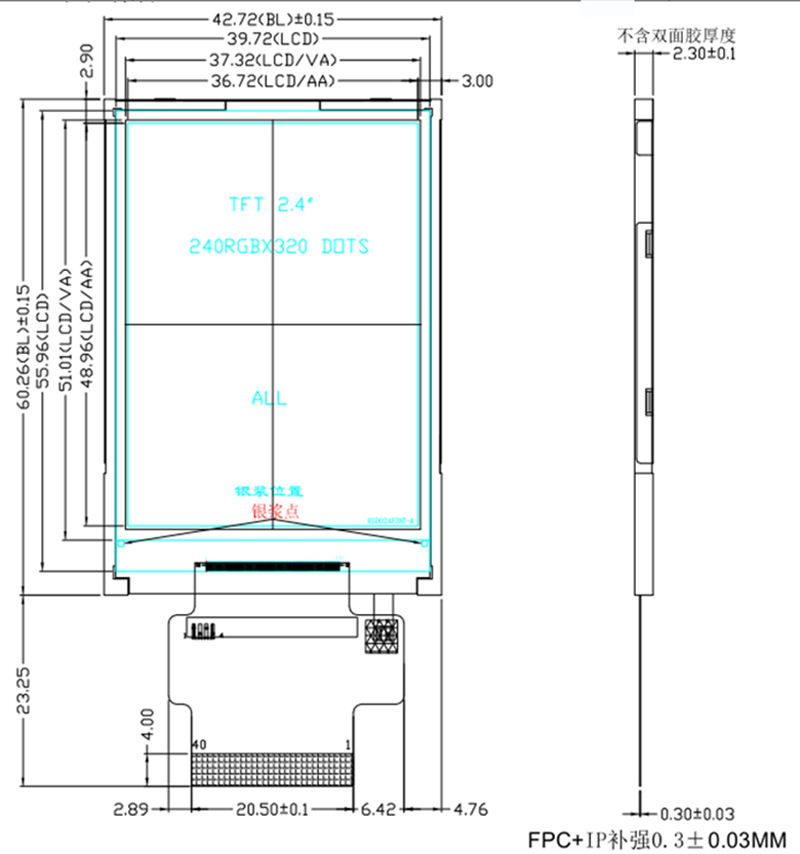

Dimensions

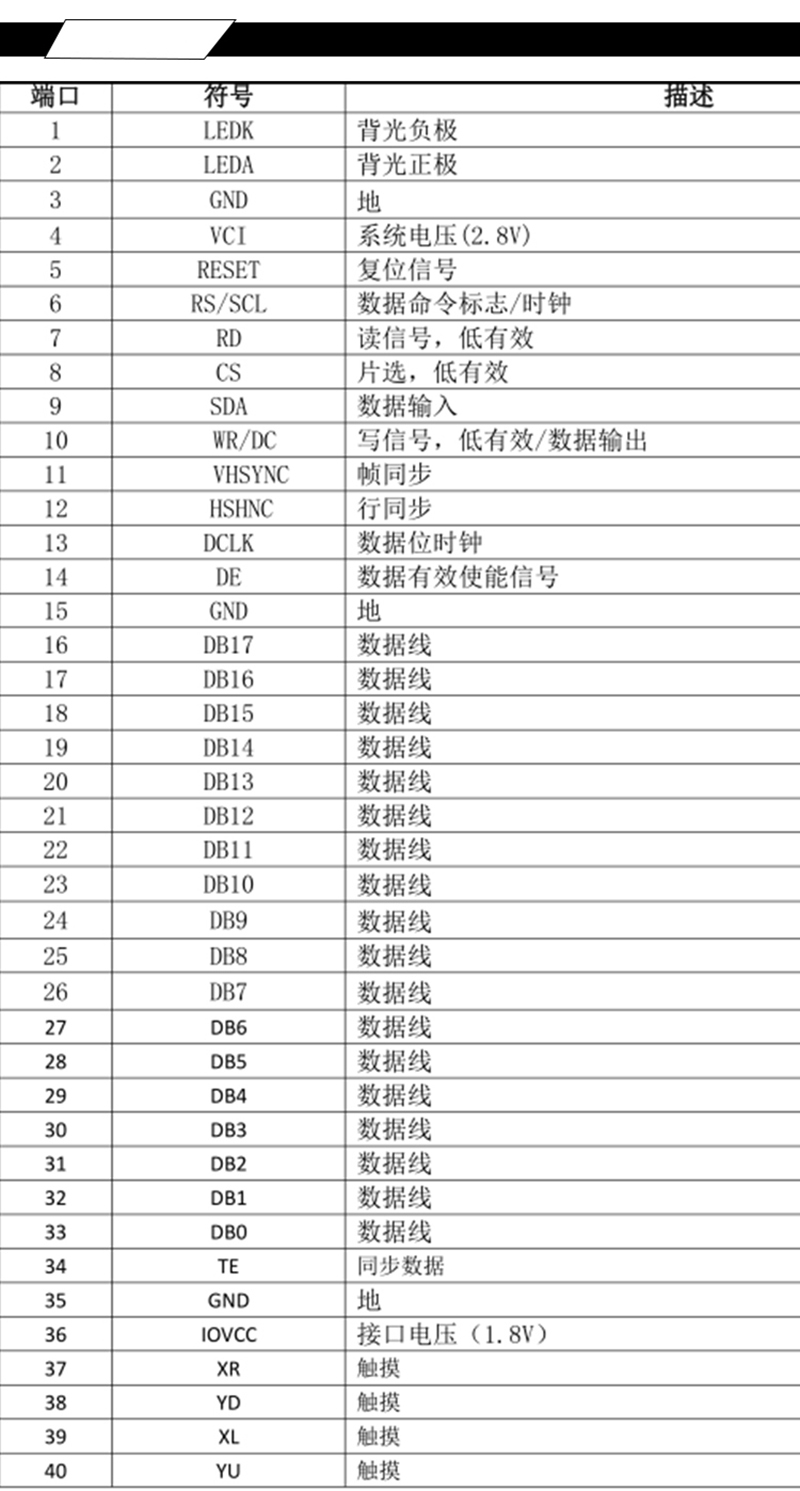

Pin Definitions
