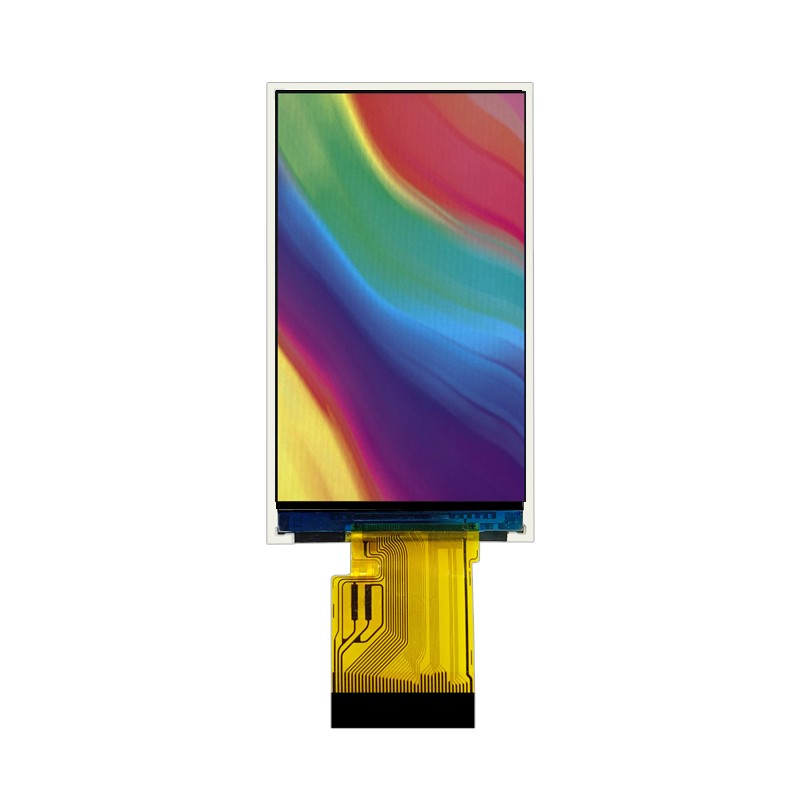

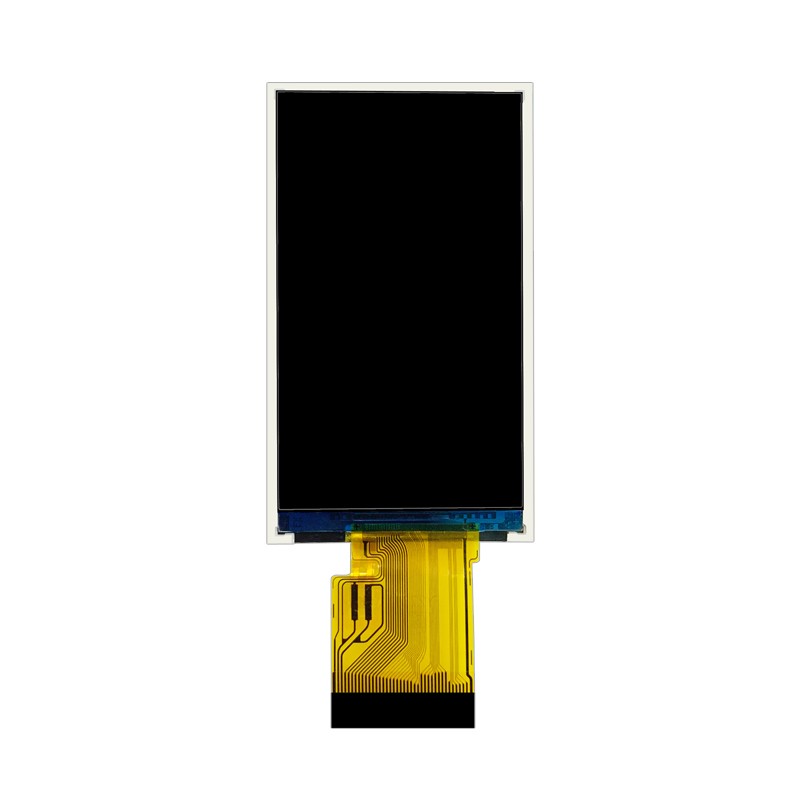

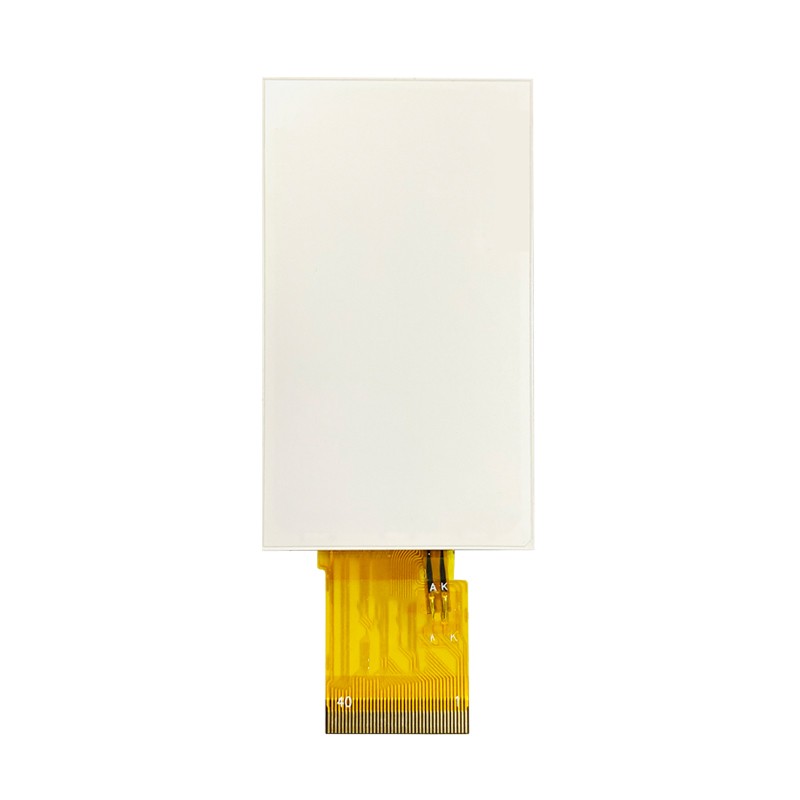

2.7 inch 960x240 TFT LCD module screen RGB interface

Description

This 2.7"TFT is a IPS Mini color TFT LCD display module is made of resolution 960x RGBx240 pixels,with outline dimension of 39.1(H) × 67.5(V) × 2.4(T) mm and AA size 30.06(H)×58.8(V) mm.this 2.7" TFT display builts in ILI8961 controller IC and supports RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:960x(RGB)x240
• View Direction:3 O'clock
• Display Color : RGB 262K
• Power Supply :2.45-3.3 V
• Interface : RGB
• Pin No: 40P Connector
• Dot pitch:0.06125(H)×0.13775(V)mm

• Backlight: 3  White LEDS

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:9.1(H) × 67.5(V) × 2.4(T) mm
• Viewing Area :30.06(H)×58.8(V) mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

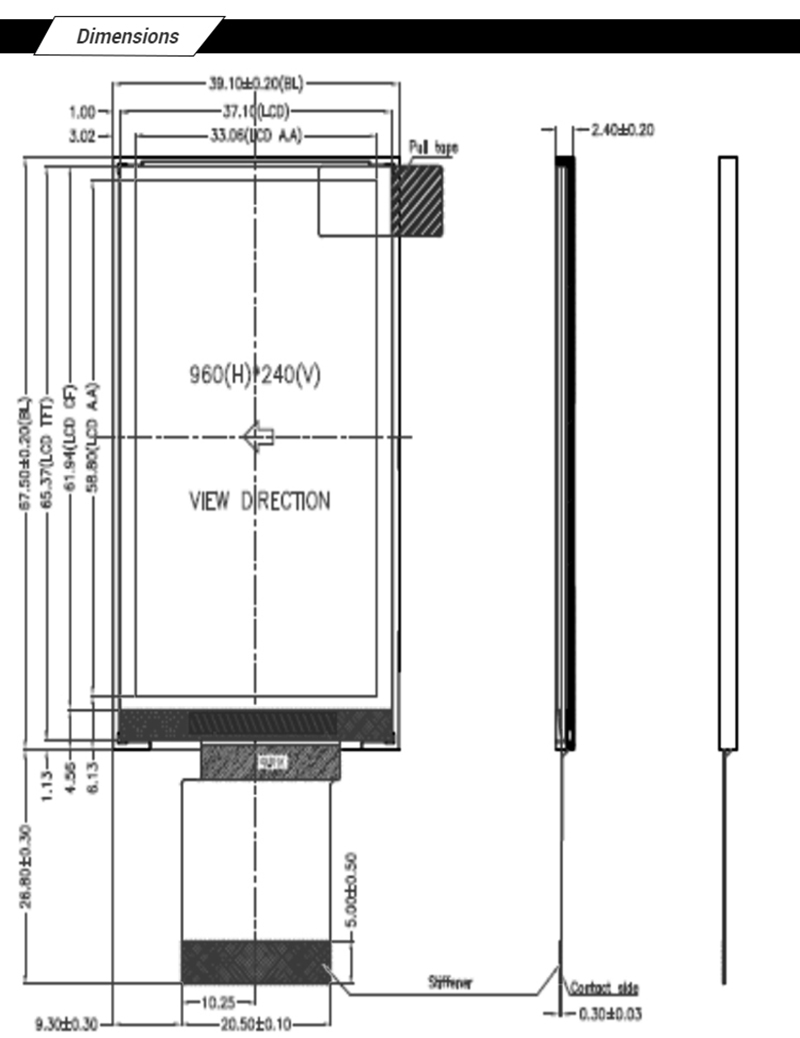

Dimensions

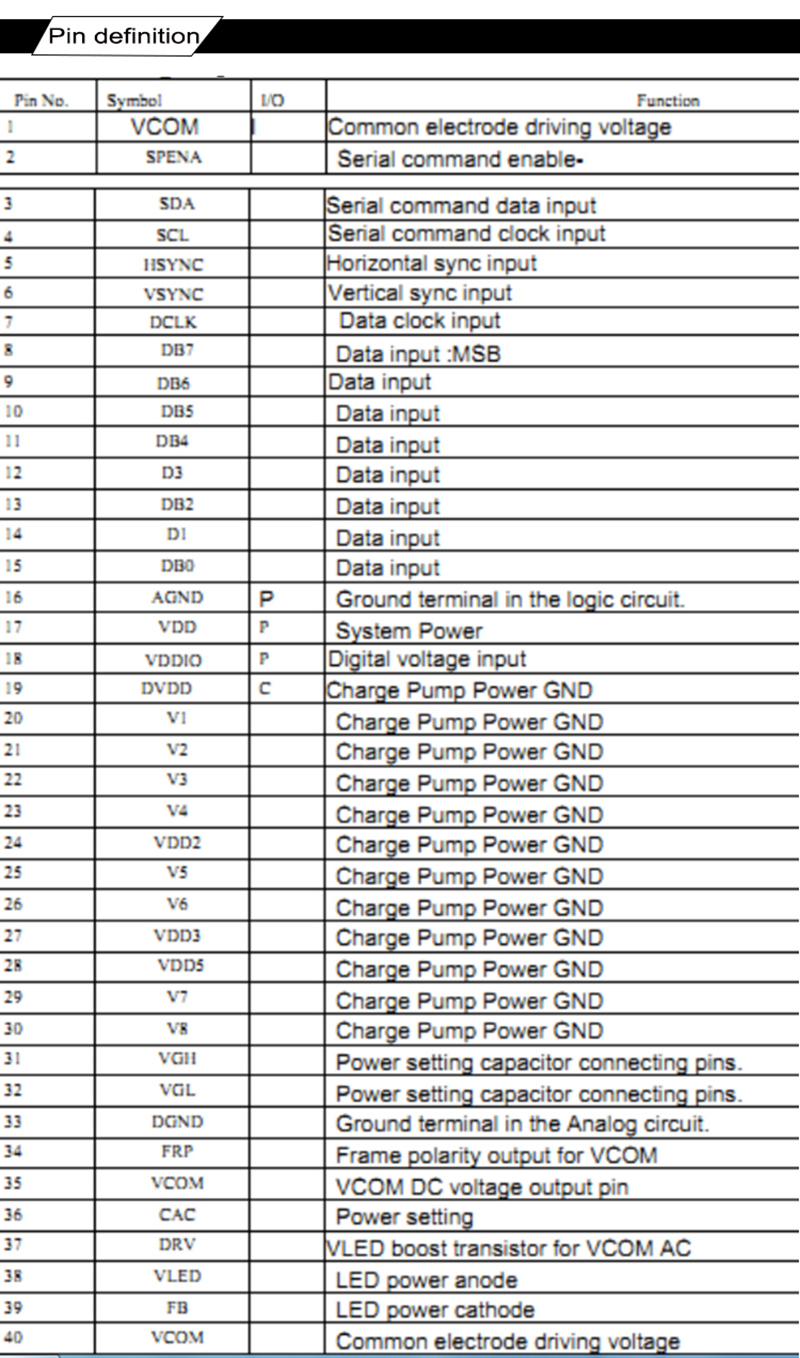

Pin Definitions
