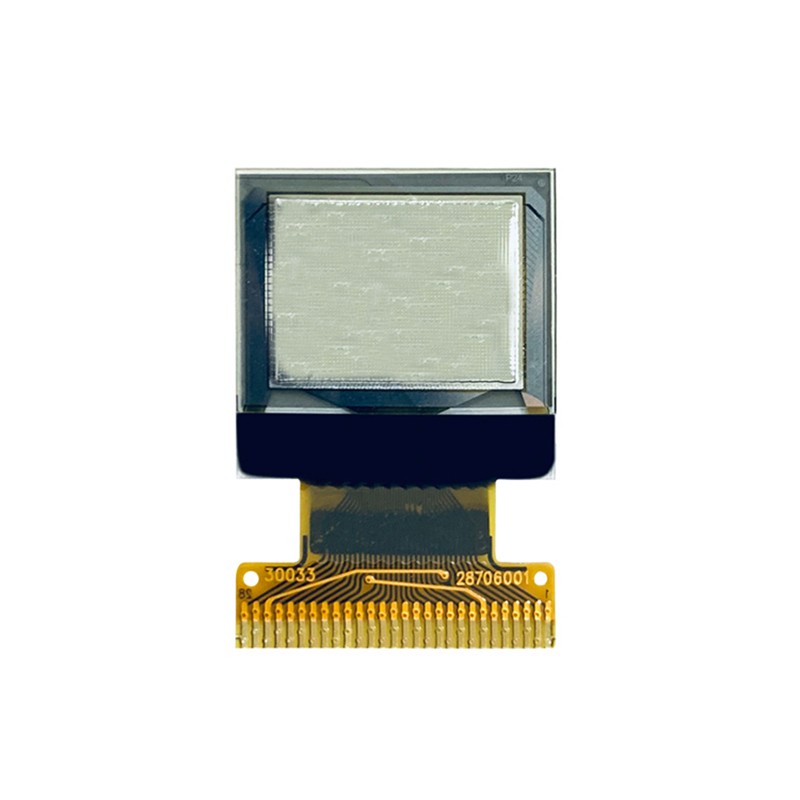

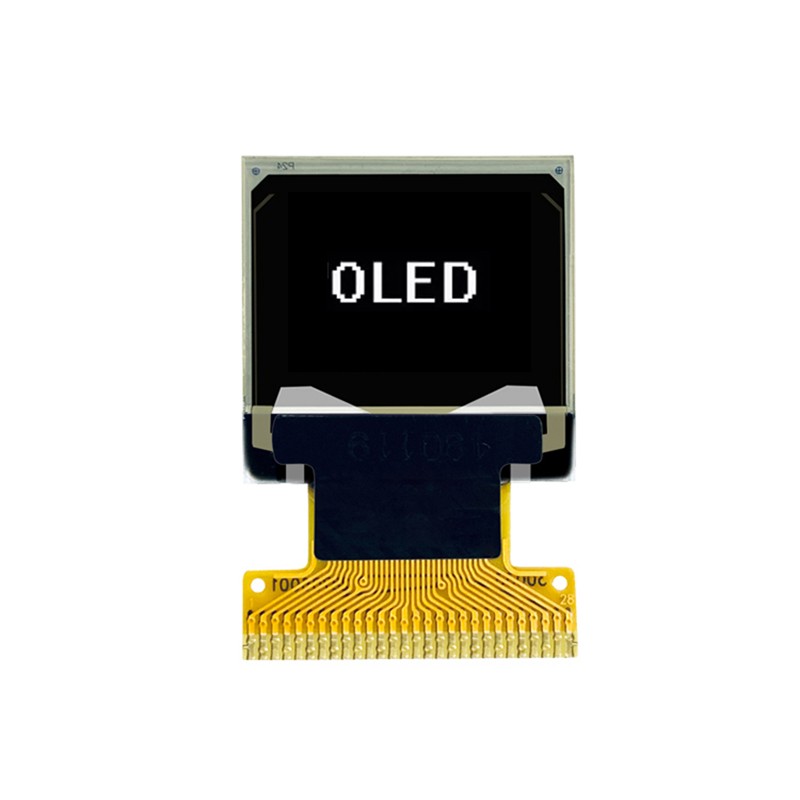

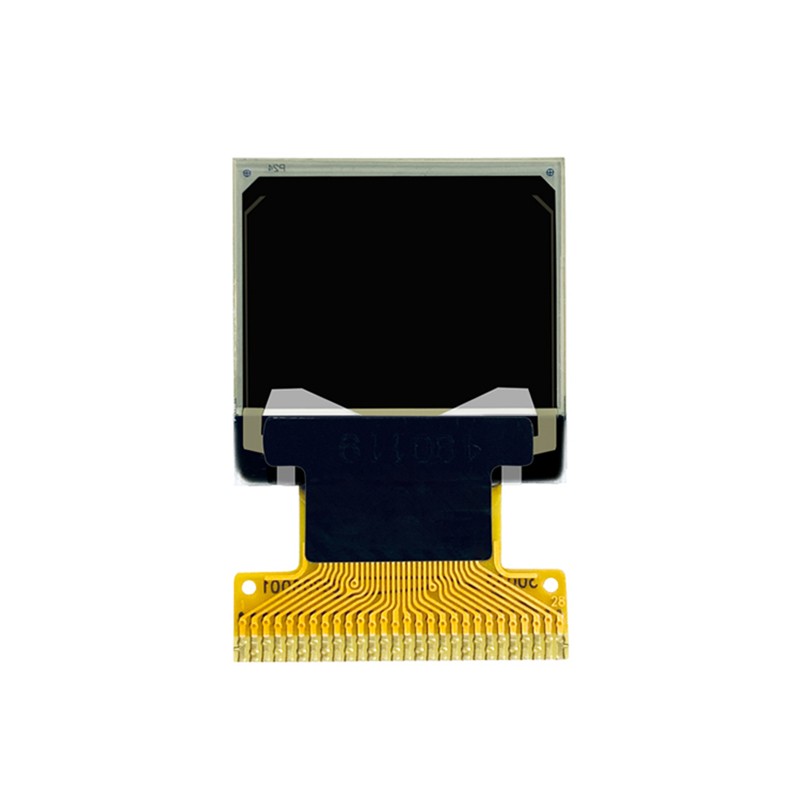

0.66 inch white Graphic OLED Display Module 64x48 pixel

Description


This 0.66" OLED is a Mini graphic OLED display module which is made of 64x48 pixels white OLED,it is with outline dimension of 18.46 × 18.10 mm and AA size 13.42 × 10.06 mm, it builts in SSD1306 controller ic,communicates via 6800/8080 4-bit/8-bit parallel and I2C/4-wire serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

The FFC is the soldering types,no need connectors.Just soldering the FPC on your own PCB directly.




Specifications


  • Resolution : 64x48 Dot Matrix OLED
  • Display Mode : Passive Matrix
  • Viewing Angles: IPS
  • Display Color : Monochrome (White)
  • Module Dimension : 18.48x18.1x1.4 mm
  • Viewing Area : 13.42X10.06 mm
  • Power Supply :1.65-3.5 V
  • Interface : 6800,8080,SPI,I2C
  • Controller IC : SSD1306
  • Pin No: 28P Sodering
  • Operation Temperature : -40℃~85℃
  • Storage Temperature : -40℃~85℃

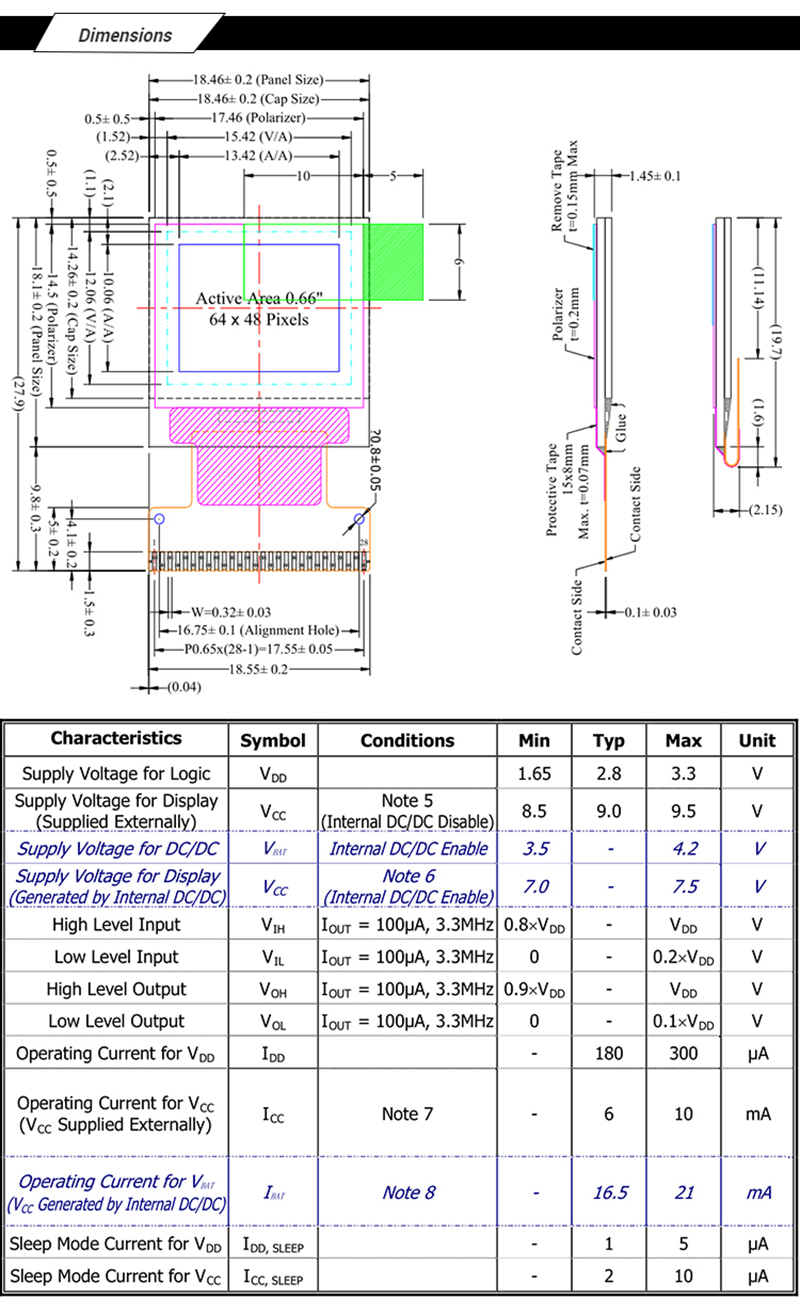

Dimensions

64x48 pixel oled display

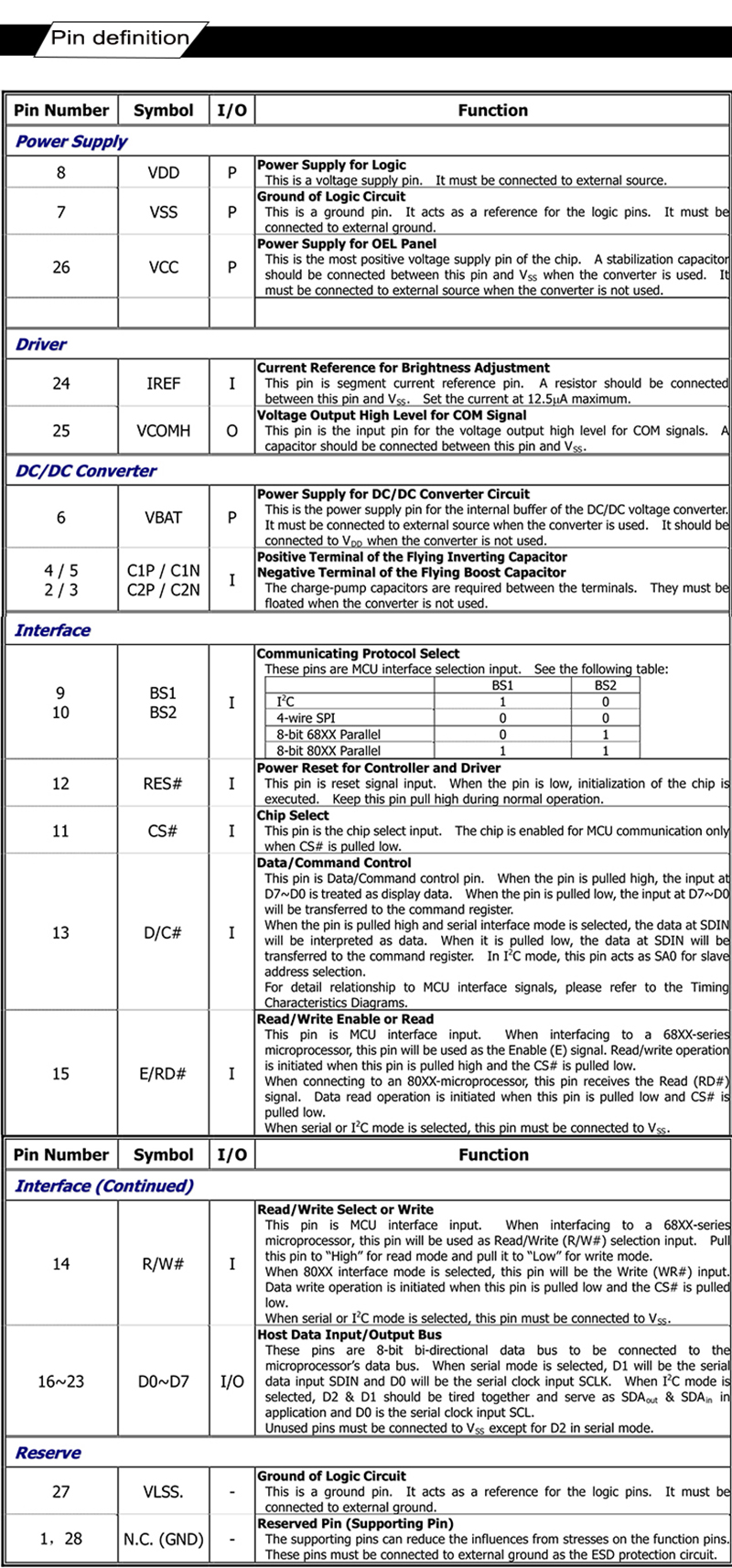

Pin Definitions

 0.66 inch 64x48 pixel Micro OLED Display Module SSD1306 drier ic
