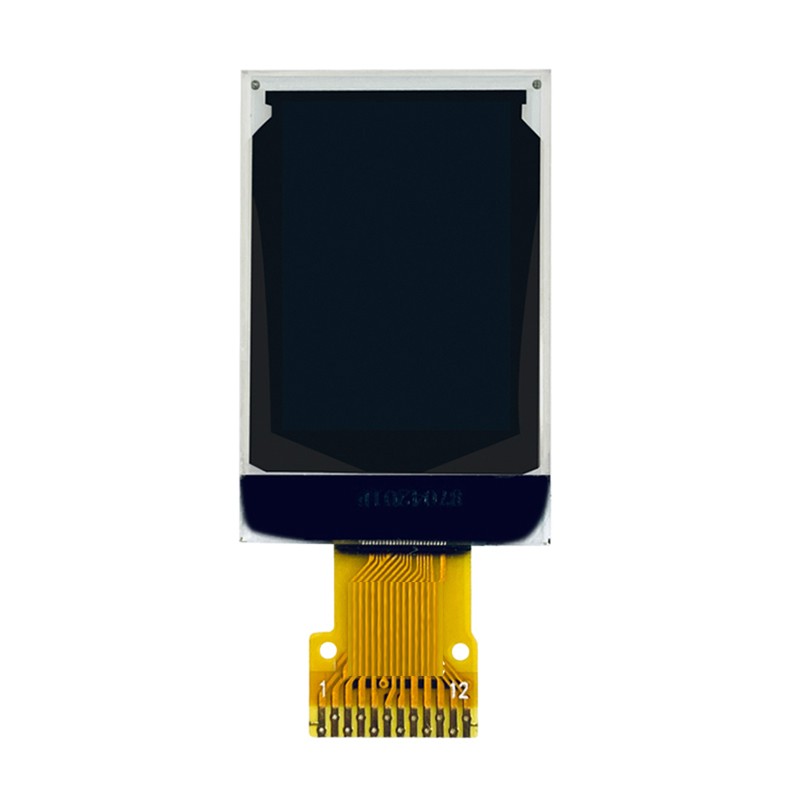

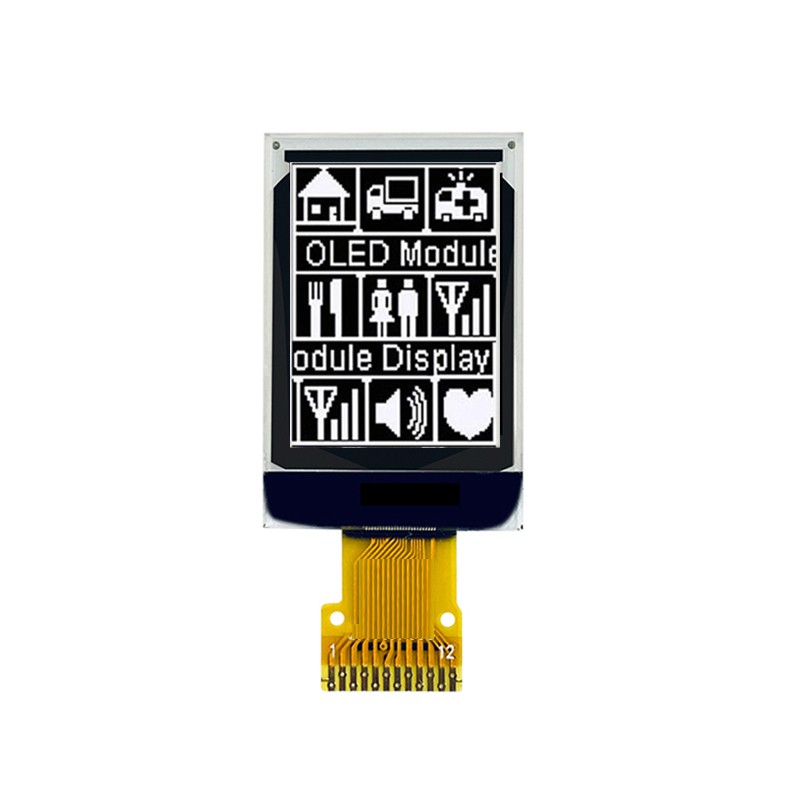

0.73 inch Graphic OLED Display 128X88 pixels

Description

This 0.73" OLED is a Mini graphic OLED display module which is made of 48x64 pixels white OLED,it is with outline dimension of 14.6× 22.34 mm and AA size 10.54 × 15.34 mm, it builts in SH1107 controller ic,communicates via 3/4 wire SPI,I2C serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

The FFC is the soldering types,no need connectors.Just soldering the FPC on your own PCB directly.

Specifications

• Resolution : 128X88 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension : 14.60 x 22.34 x 1.22mm
• Viewing Area : 10.54 X 15.34 mm
• Power Supply :1.65-3.5 V
• Interface :3/4 wire SPI,I2C
• Controller IC : SH1107
• Pin No: 12P Sodering
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

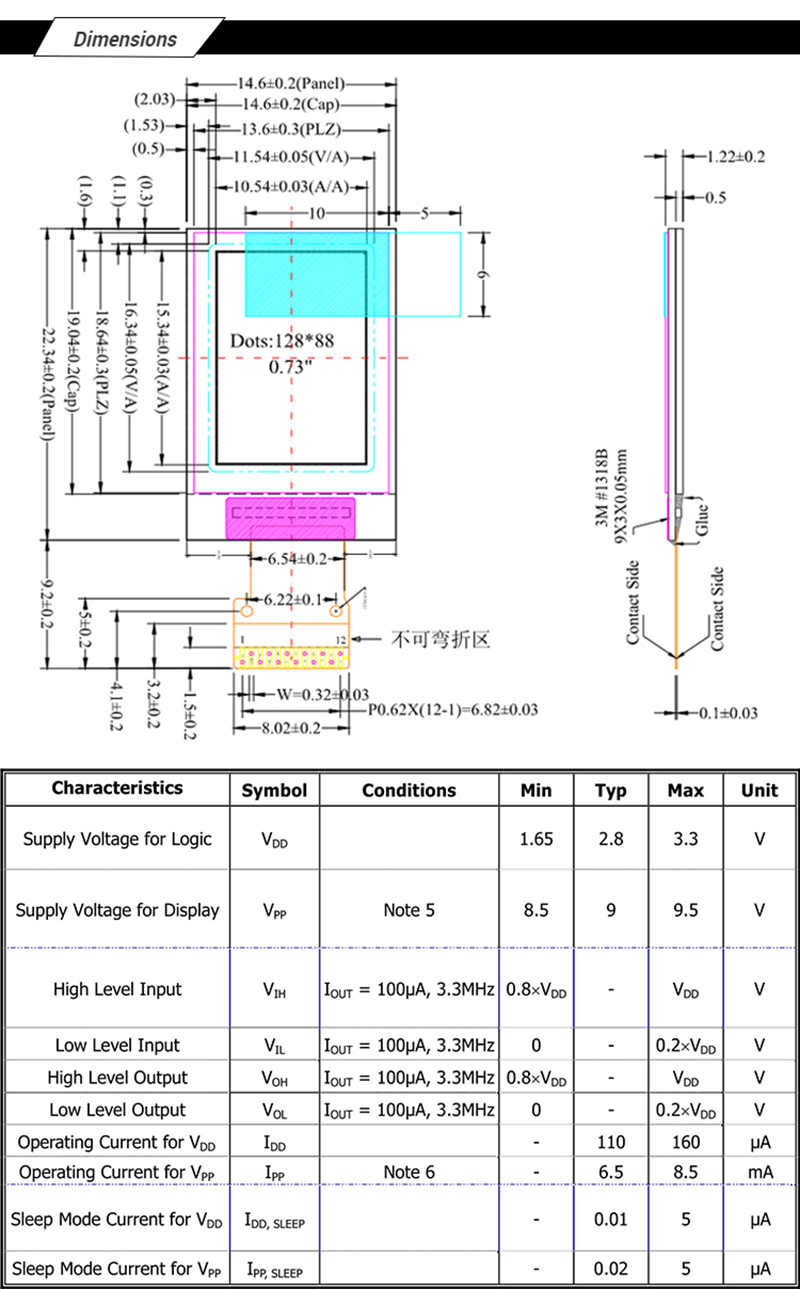

Dimensions

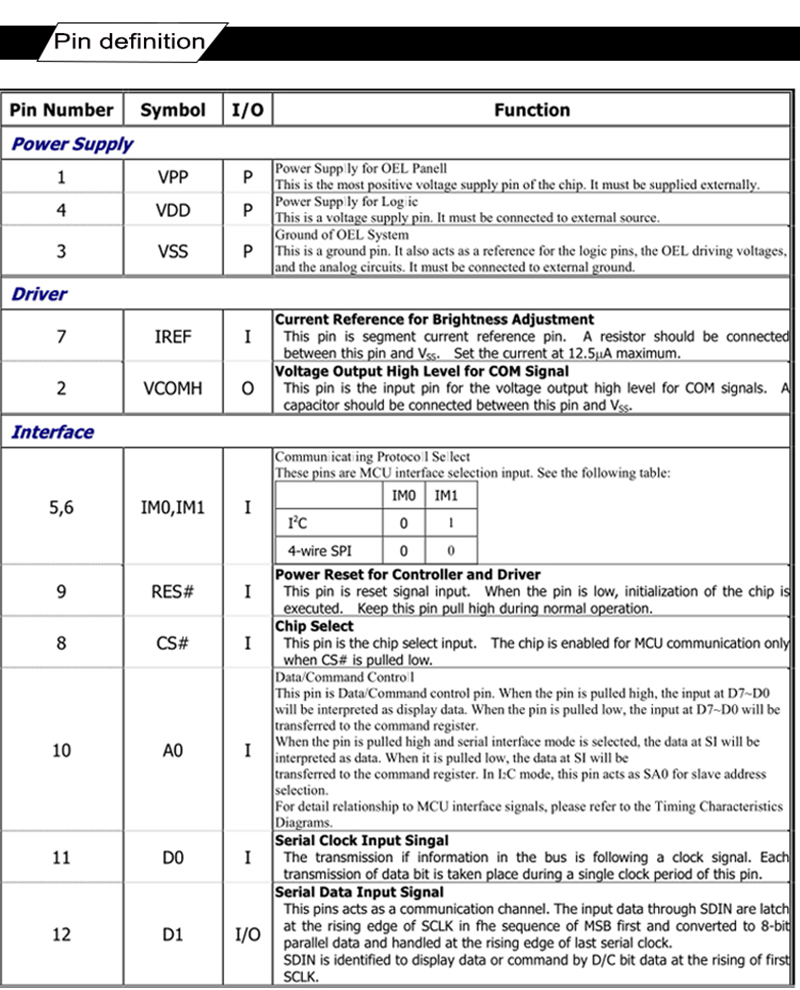

Pin Definitions
