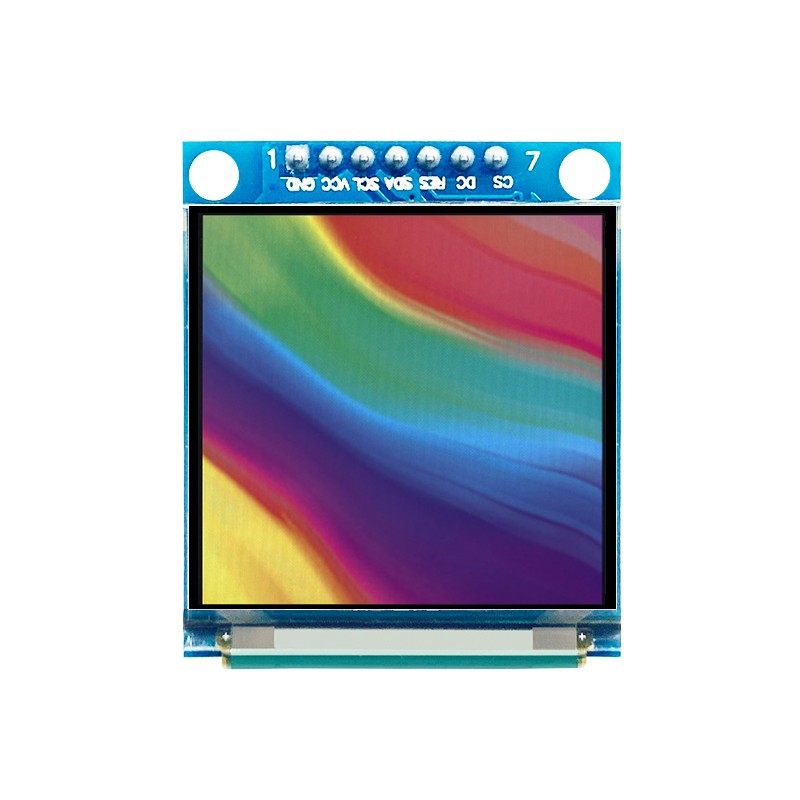

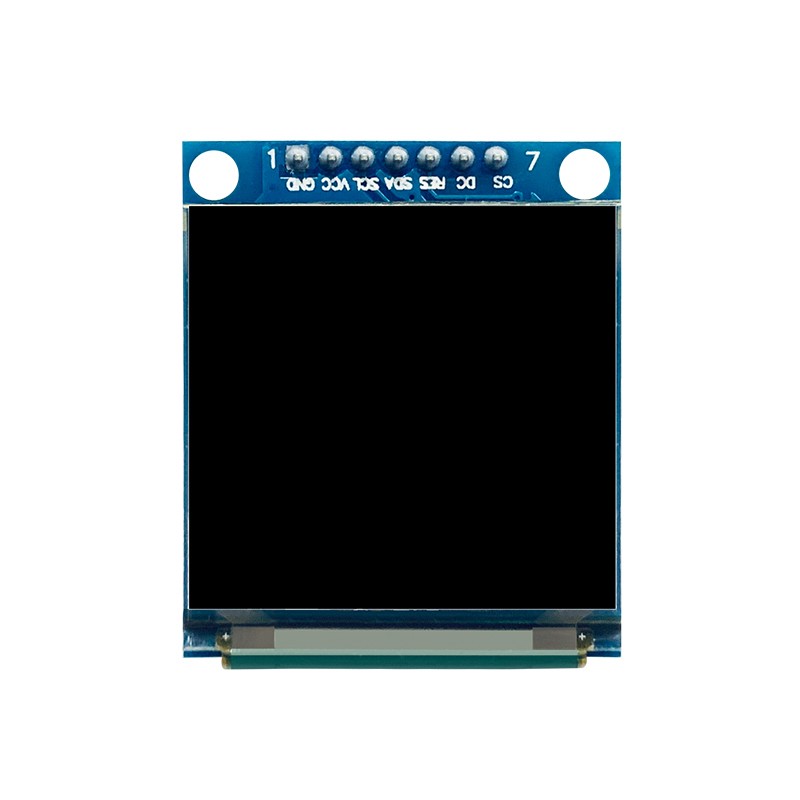

1.5 inch Color OLED Display Module 128x128 Pixels

Description

The monochrome 1.5" OLED Module is the COB color  OLED display and made of 128x128 white OLED pixels, it is with it is with Module Dimension of 33.8 L×40.0 W×3.4(MAX)H mm,AA size 28.855×28.865 mm.it builts in SSD1351 controller ic,communicates via SPI serial interface. this OLED Module is Small,lightweight, low power consumption since it only powers the pixels that is necessary,suitable for industrial equipments,any embedded systems,medical and hand-held devices,securities.

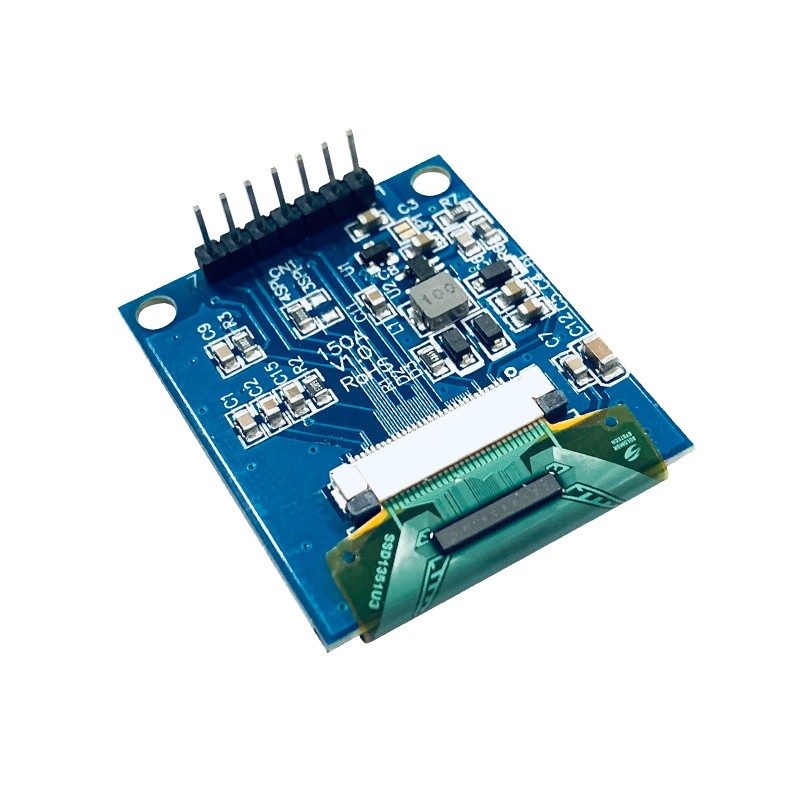

It's pin headers connected by defaults,so it is easy to fix the modules on your applications since it is with PCB Board on it!




Specifications

• Resolution : 128x128 Dot Matrix COB OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Color
• Module Dimension :33.8 L×40.0 W×3.4(MAX)H mm
• Viewing Area : 23.74 (W) x 13.204(H)28.855×28.865 mm
• Power Supply :3.3 V
• Interface :SPI
• Controller IC :SSD1351
• Dot (Pixel) Size:0.185 x 0.194

• Dot (Pixel) Pitch:0.21 x0.21 mm
• Pin No: 7P
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

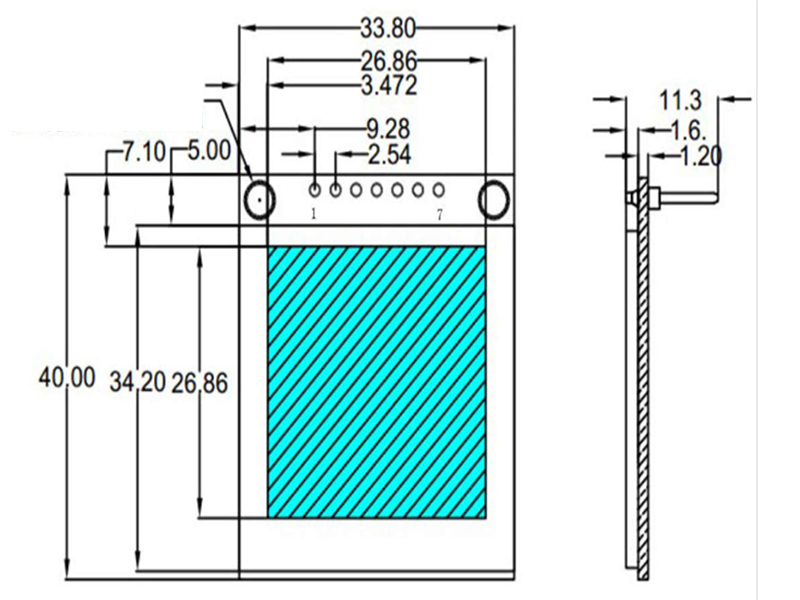

Dimensions

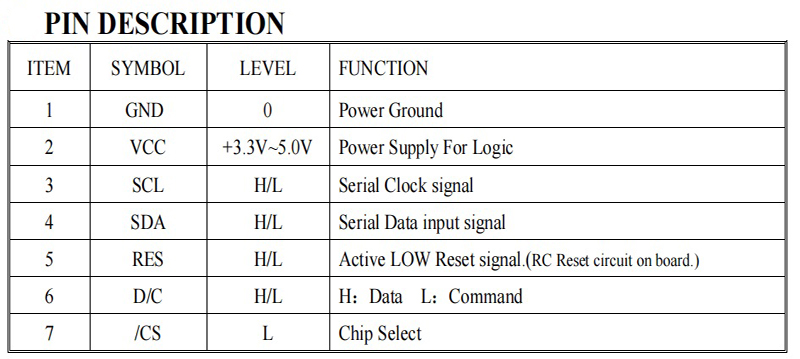

Pin Definitions
