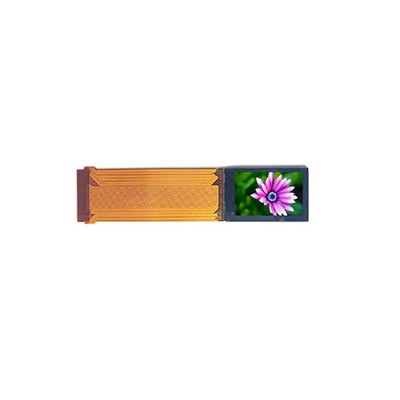

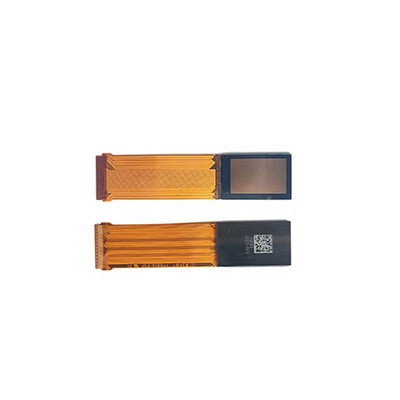

0.68 inch Micro OLED Display 1920x1200 5000 nits-LVDS

Sony ecx343 micro oled 0.68 inch 1920x1200 high resolution micro display screen for Augmented reality Glasses.

Description

This 0.68 inch Micro OLED Display is a high-quality and technologically advanced displaya micro SI-OLED display, with a high resolution of 1920x1200 pixels and a pixel density of 3135 PPI,this 0.68 Mciro display makes the images and text appearing sharp and vibrant; with high luminance of 5000 nits,high brightness level ensures makes this 0.68 micro screen offer excellent visibility even in challenging lighting conditions, plus its high contrast ratio of 100000:1 (Typ.), this microoled is ideal considered as an outdoor applications and scenarios where sunlight readability is crucial.


This microdisplay also features low power consumption, mini sized, light weight and Thin type,High-speed response, so it is popular used in multiple applications such as AR VR Display, view finders,  head mounted displays very small monitors, etc.

0.68 inch Micro Display 1920x1200 parameter:

Diagonal Size:0.68″
Panel Type:Micro OLED, Si-OLED
Resolution:1920(RGB)×1200 WUXGA
Display Area:9.425 × 12.933 (H×V) mm
Outline Size:12.738×20.34×1.475 (H×V×D)
Frequency：60Hz
Luminance:5000 cd/m² (Typ.)
Contrast Ratio:100000:1
Interface: LVDS, 61pin
Power Supply:1.8V (logic) 3.3V, -6.6V (analog)
Application: AR headsets;VR AR Display

0.68 inch Micro-OLED Features

Thin and light
Sequential emission
Fast response and High contrast
Idle mode for save power
Support scanning direction selection
Color enhancement

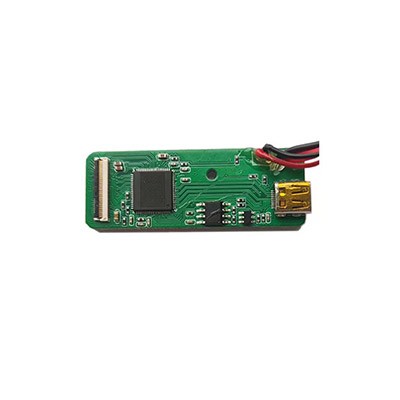

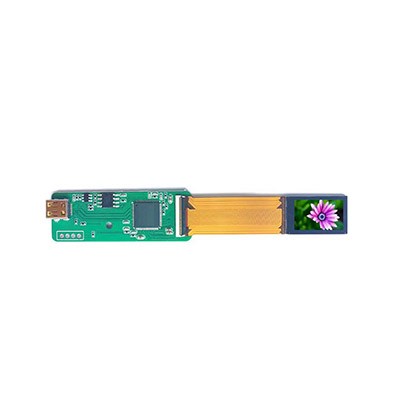

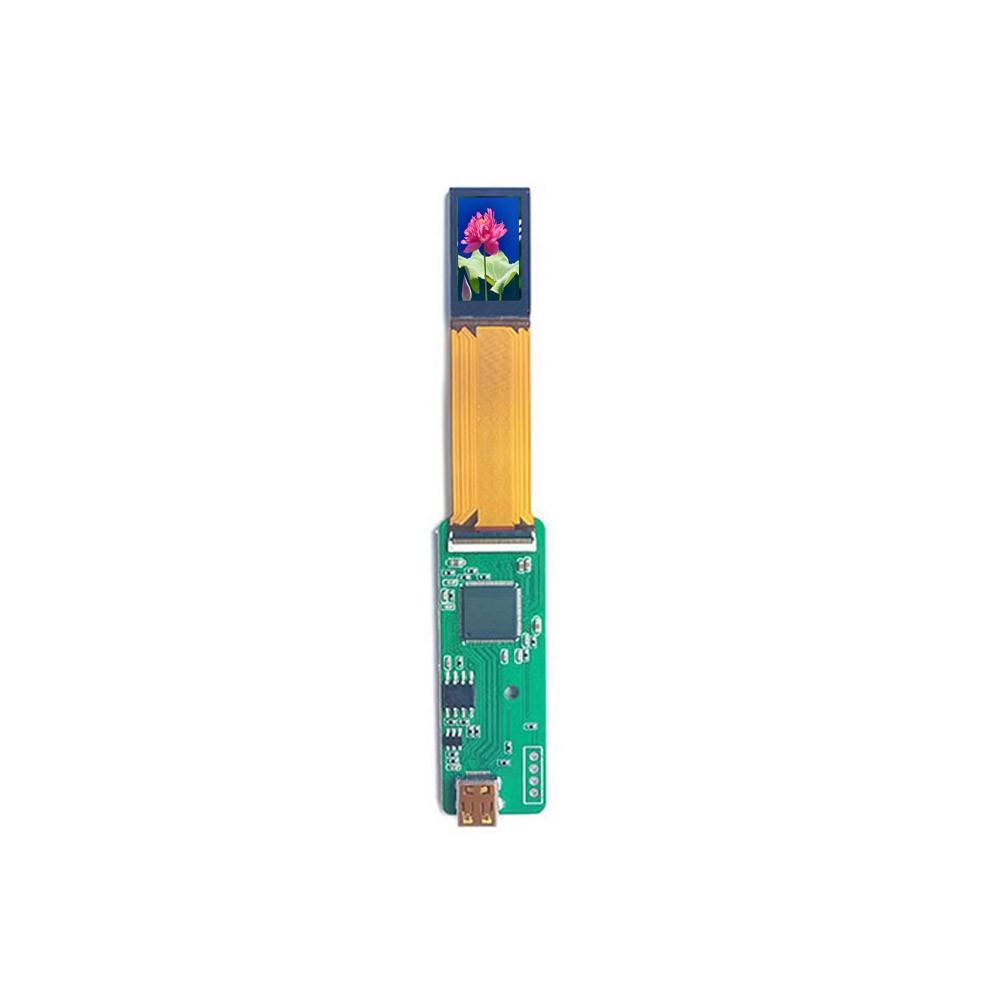

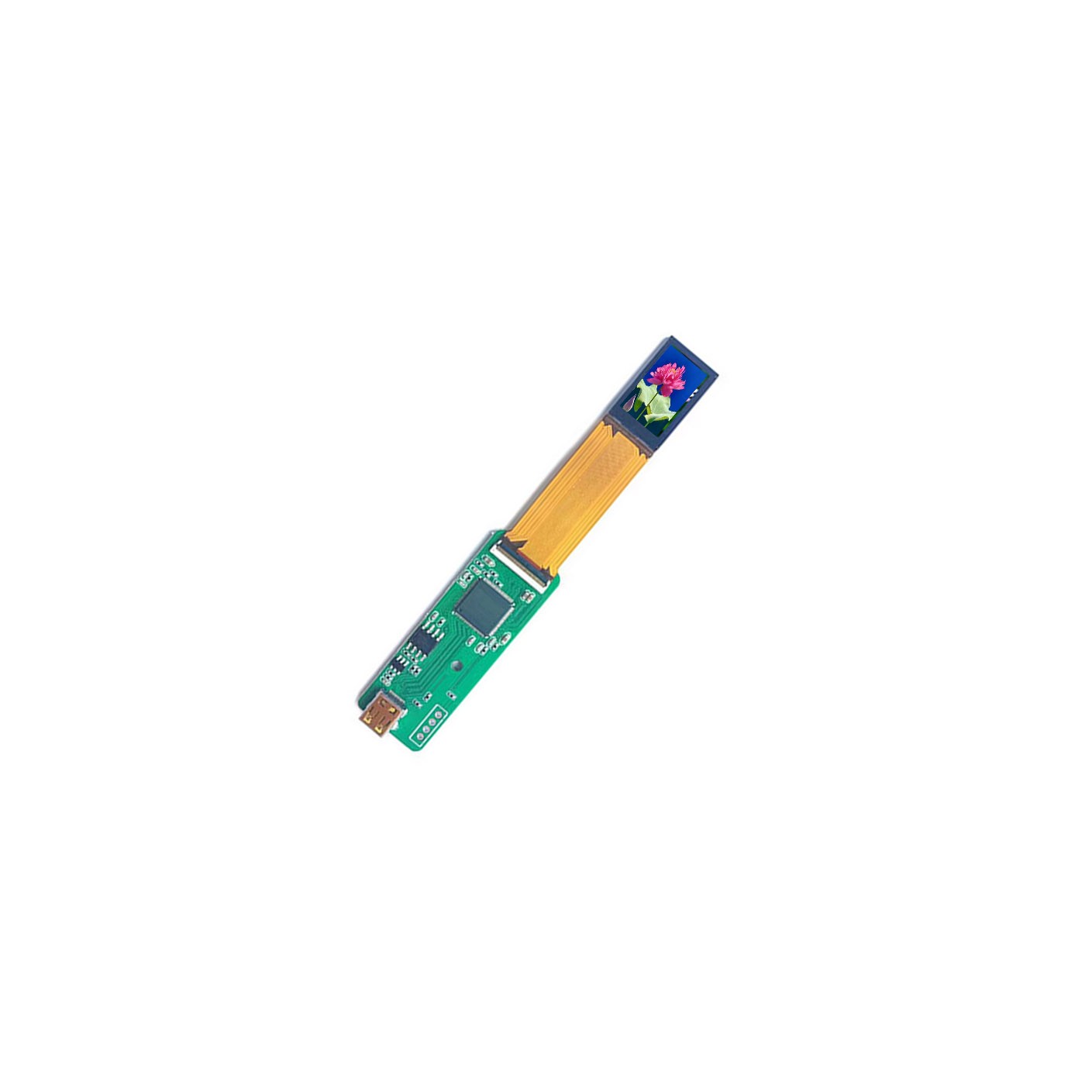

Demo driver board HDMI and USB-C available
Optics lens

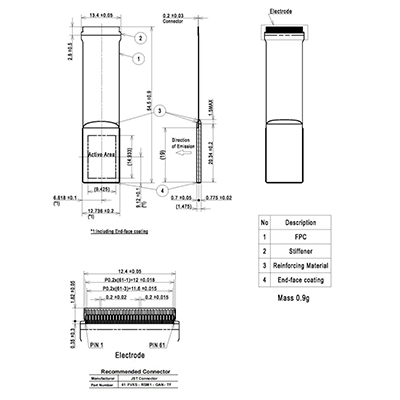

Dimensions
