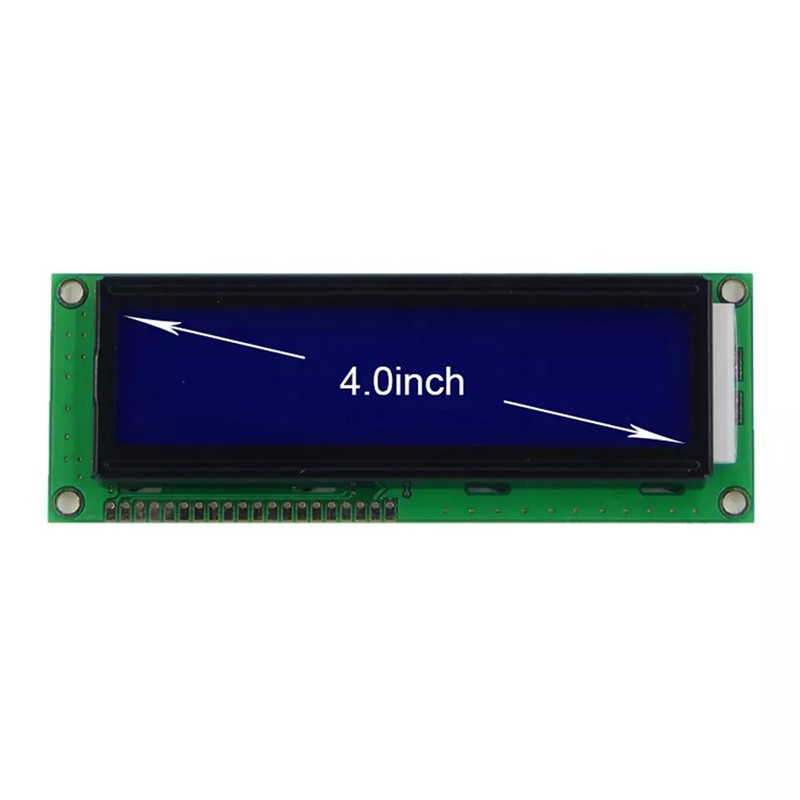

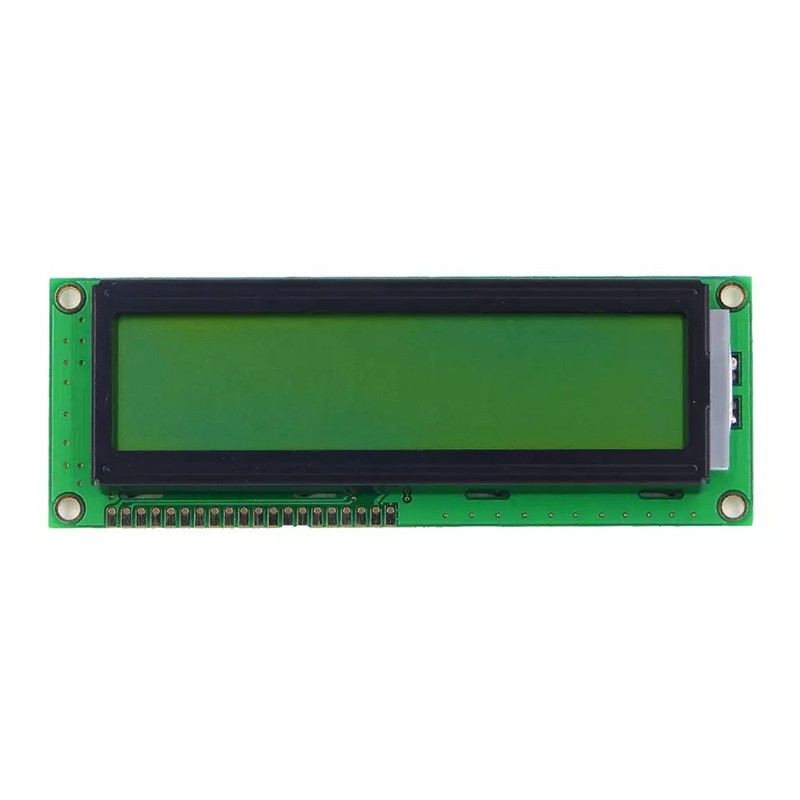

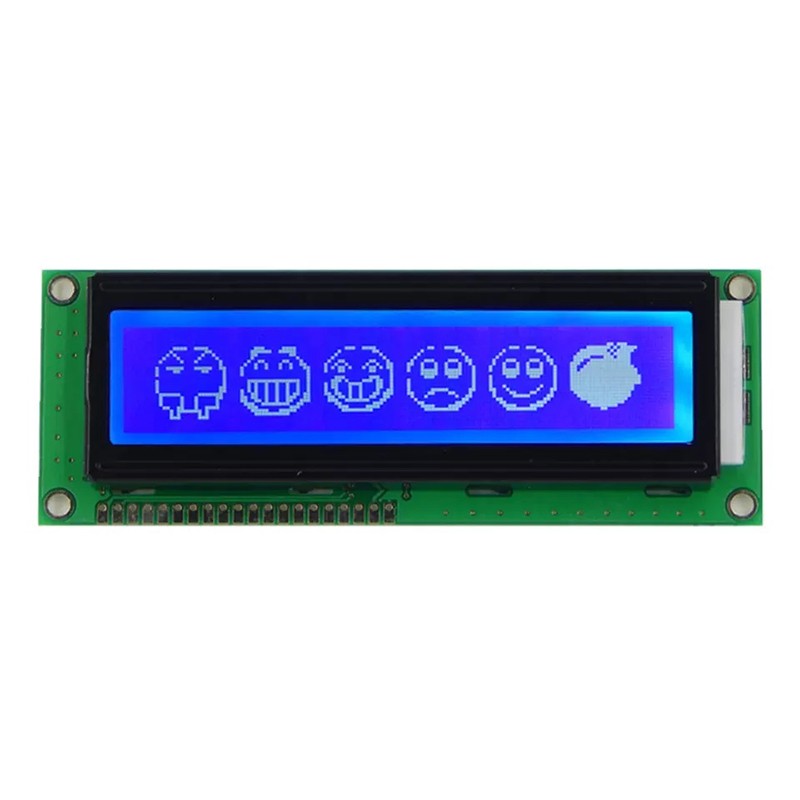

160x32 Dot Matrix Graphic LCD Display

Description

This 160X32 LCD Display is the graphic LCD display module which is made of 160X32  resolution,with the outline size 122.00 x 44.00 x 13.0 mm and active area size of 94.36 x 18.84 mm.This 160X32  graphic LCD display builts in the ST7920/AIP31020 Controller IC and supports 8 bit Parallel and 5V power supply,it also Negative Voltage Generator 3V optional,wide operating temperature range,rohs compliant.

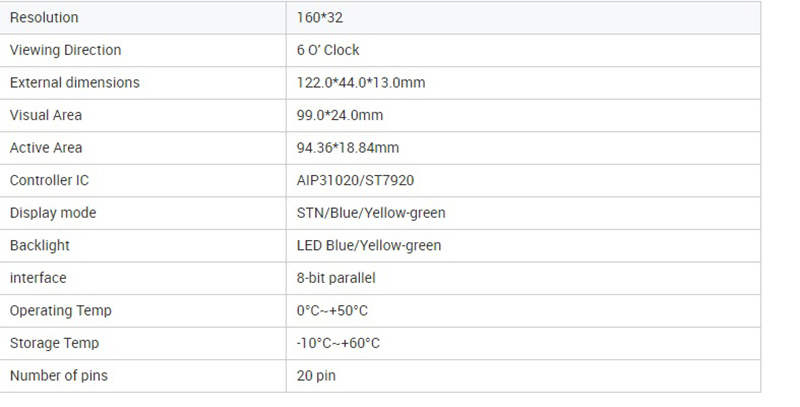

• Resolution :160x32 dots
• Display Mode : STN /Yellow-Green/Blue
• Viewing Angles:6 O'clock
• Display Color : Blue/Yellow-Green
• Module Dimension :122.00 x 44.00 x 13.0  mm
• Viewing Area :94.36 x 18.84 mm
• Power Supply :5 V
• Interface : 8 bit Parallel
• Driver IC:ST7920/AIP31020
• Pin No: 20P
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

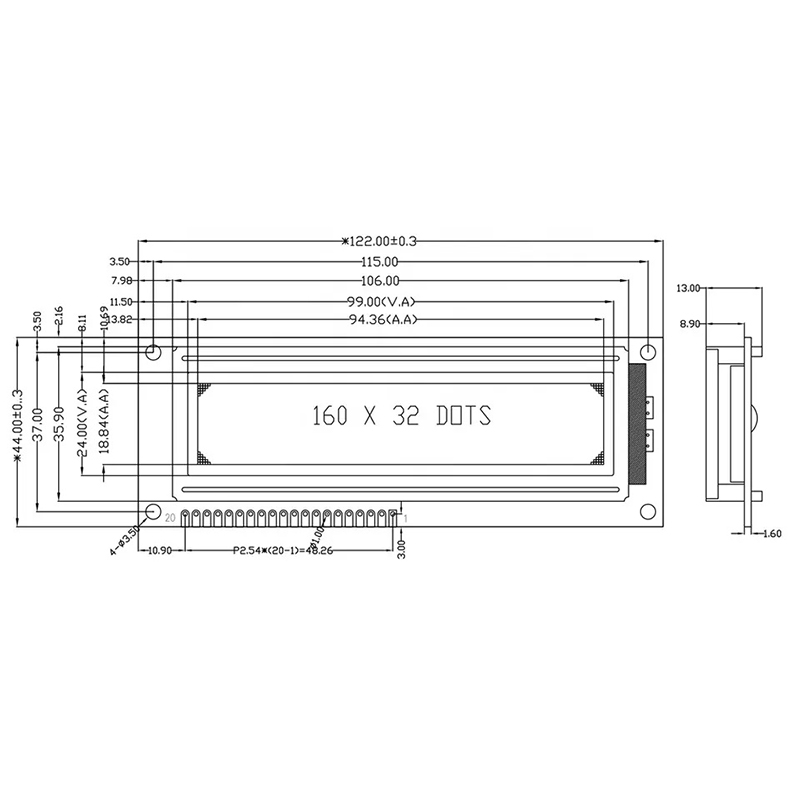

Dimensions
