0.91 inch OLED Module 128x32

Description

This 0.91" OLED is a Mini graphic OLED display module which is made of 128x32 pixels white OLED,it is with outline dimension of 30.0× 11.5 mm and AA size 22.384 × 5.584 mm, it builts in SSD1306 controller ic,communicates via I2C interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

Specifications

• Resolution : 128x32 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White/Blue)
• Module Dimension :30.0× 11.5 x 1.2 mm
• Viewing Area : 22.384 × 5.584 mm
• Power Supply :1.65-3.3 V
• Interface :I2C
• Controller IC : SSD1306
• Pin No: 8P Connector
• Operation Temperature : -40℃~85℃
• Storage Temperature : -40℃~85℃

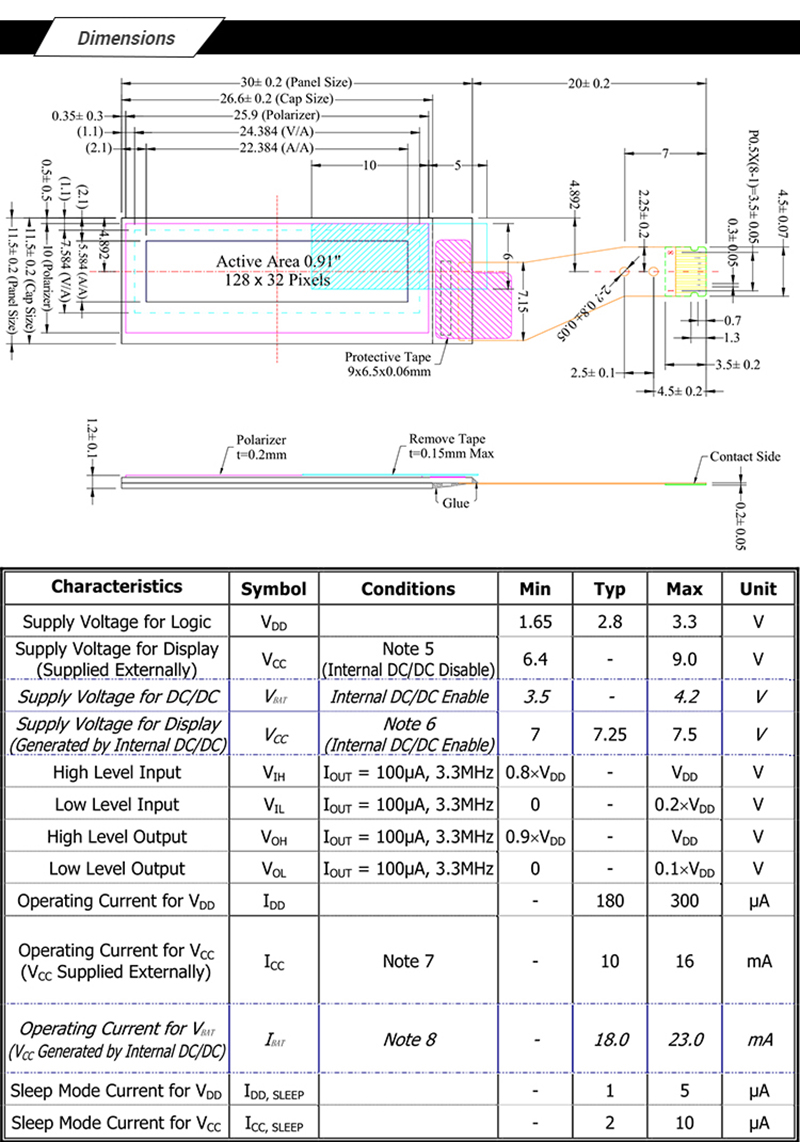

Dimensions

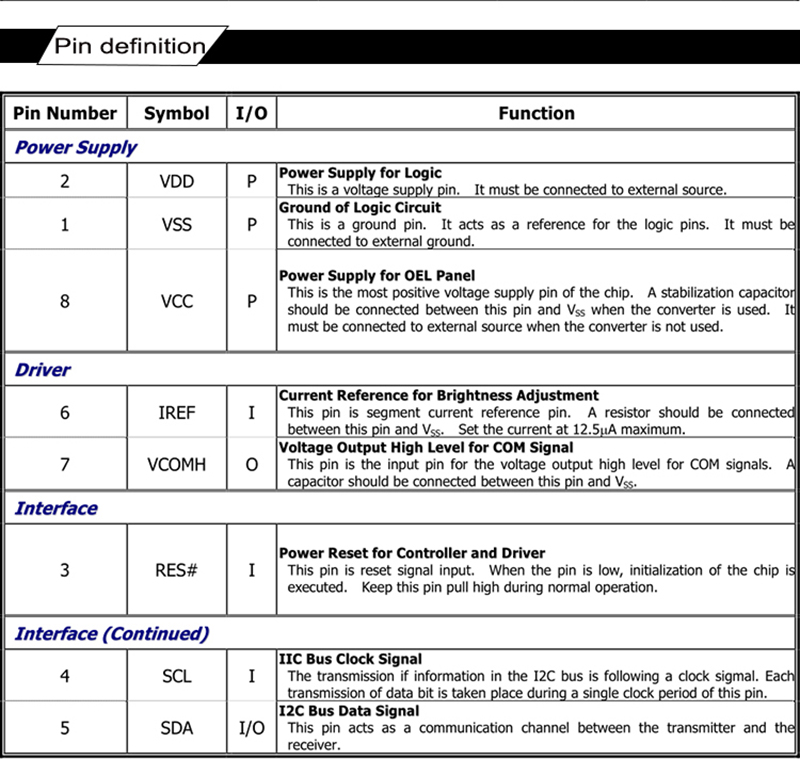

Pin Definitions
