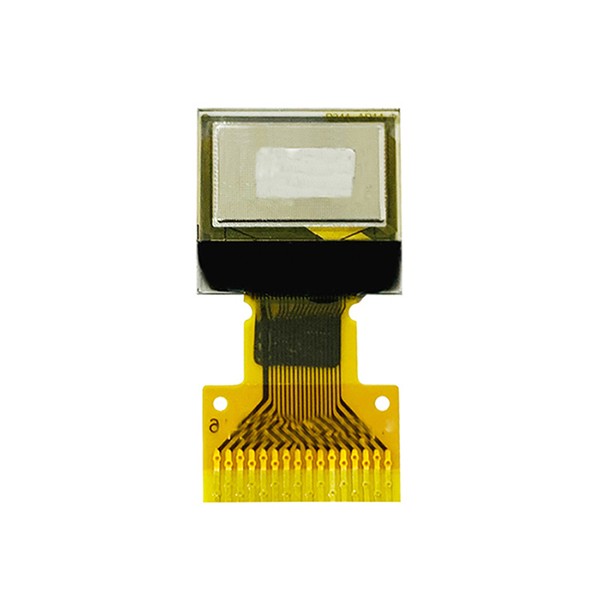

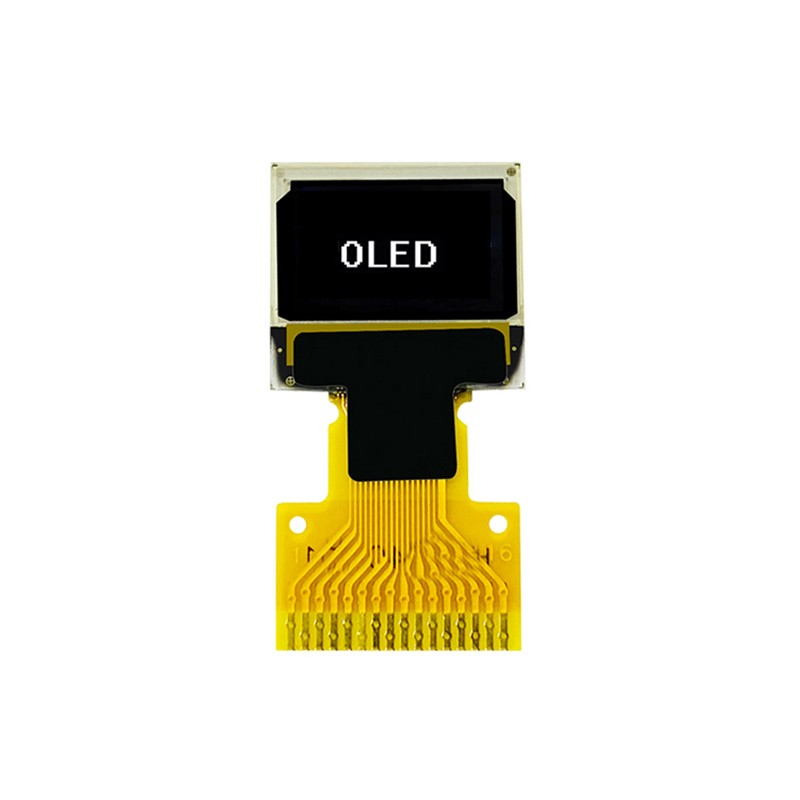

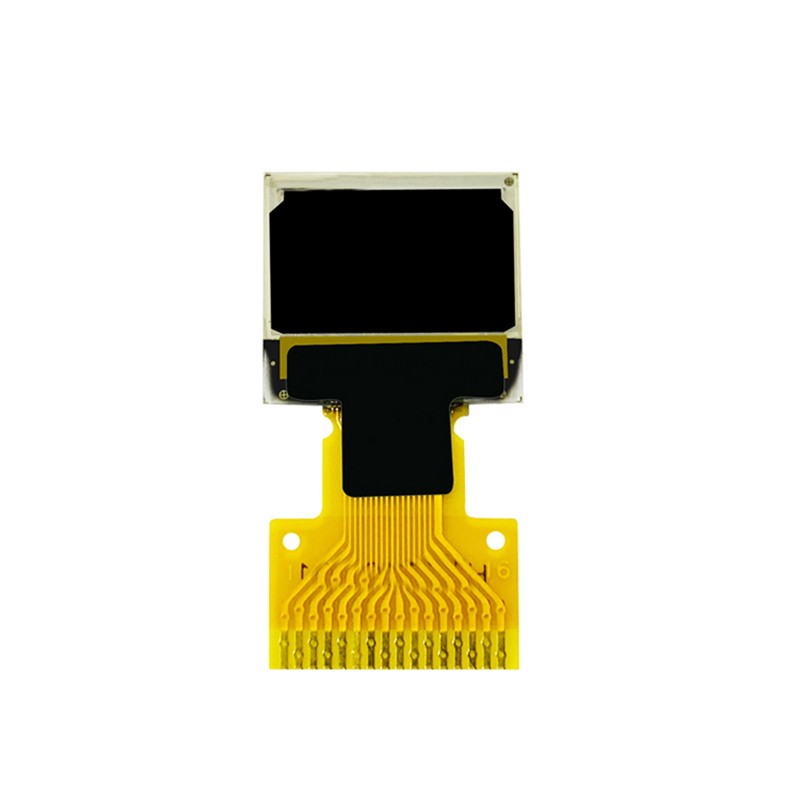

White 0.42" inch OLED Display Panel 72x40

Description

This 0.42 oled is the graphic OLED display panel made of 72x40 individual white OLED pixels,diagonal is only 0.42 inch. The controller ic SSD1306B, communicates via I2C serial and 4-wire SPI interface,thanks to controller's built-in voltage generation,only a single 3.3V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly. it's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.

Specifications

• Resolution :72x40 Dot Matrix OLED
• Display Mode : Passive Matrix
• View Angle: IPS
• Display Color : White
• Module Dimension : 12.00 x 11.10 x 1.25 mm
• Viewing Area : 9.196 x 5.18 mm
• Power Supply :1.6-3.5 V
• Interface : 4 line SPI/I2C
• Controller IC : SSD1106/SSD1306
• Pin No: 16P Soldering
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

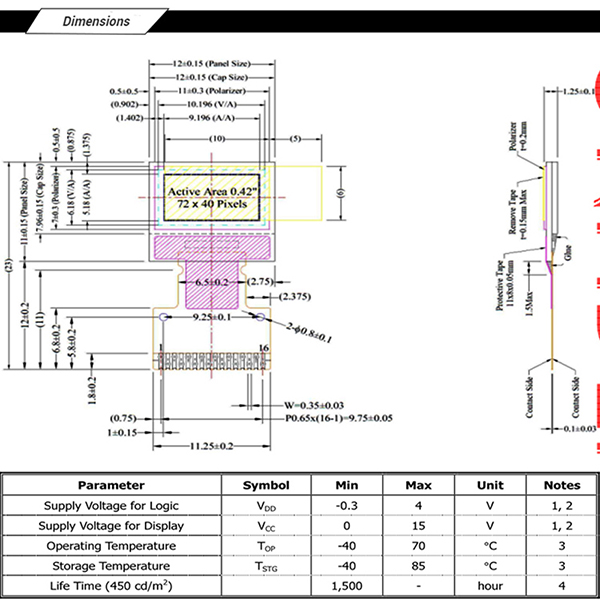

Dimensions

Pin Definitions
