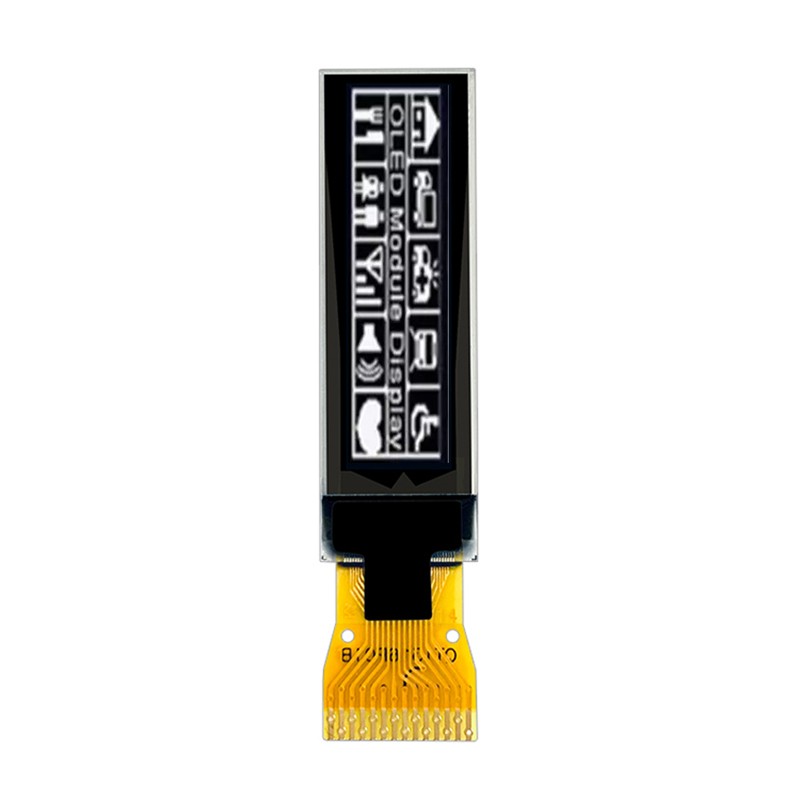

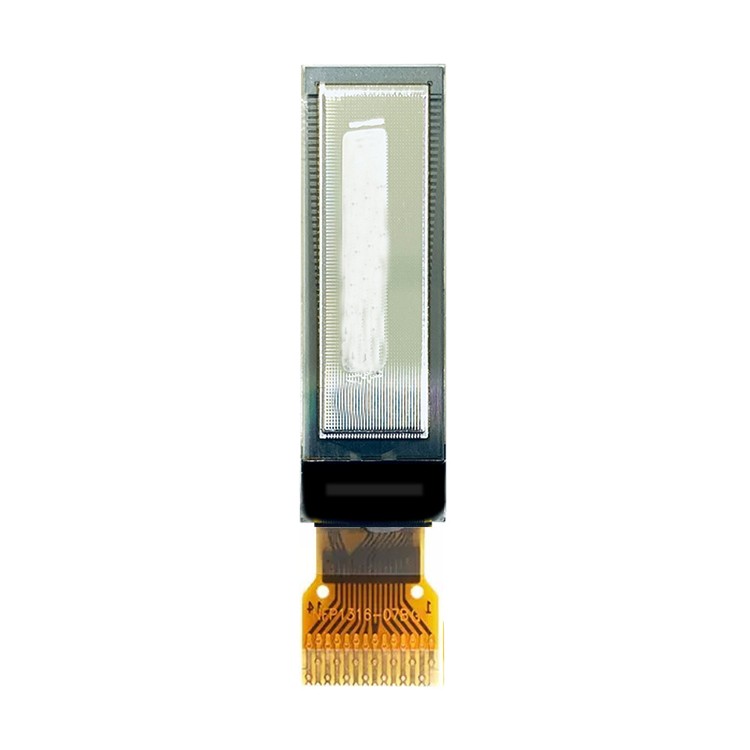

128x32 Dots 0.87 Inch White OLED Display module

Description

This 0.87" OLED is a Mini graphic OLED display module which is made of 128x32 pixels white OLED,it is with outline dimension of 39.5× 8.7 mm and AA size 21.356 × 5.324 mm, it builts in SSD1316 controller ic,communicates via 4-wire serial interface.this mini COG OLED display is very thin,lightweight and low power consumption since no backlight is needed;so it has such high contrast,extremely operating temperature,applied for any embedded systems,wearable device,industrial devices,medical and hand-held devices,personal care appliance, voice recorder pen and securit,mp3,etc.

The FFC is the soldering types,no need connectors.Just soldering the FPC on your own PCB directly.

Specifications

• Resolution : 128x32 Dot Matrix OLED
• Display Mode : Passive Matrix
• Viewing Angles: IPS
• Display Color : Monochrome (White)
• Module Dimension : 39.50 x 8.7 x 1.2 mm
• Viewing Area : 21.356 X 5.324 mm
• Power Supply :1.65-3.3 V
• Interface :I2C
• Controller IC : SSD1306
• Pin No: 14P Sodering
• Operation Temperature : -40℃~70℃
• Storage Temperature : -40℃~85℃

Dimensions

Pin Definitions
