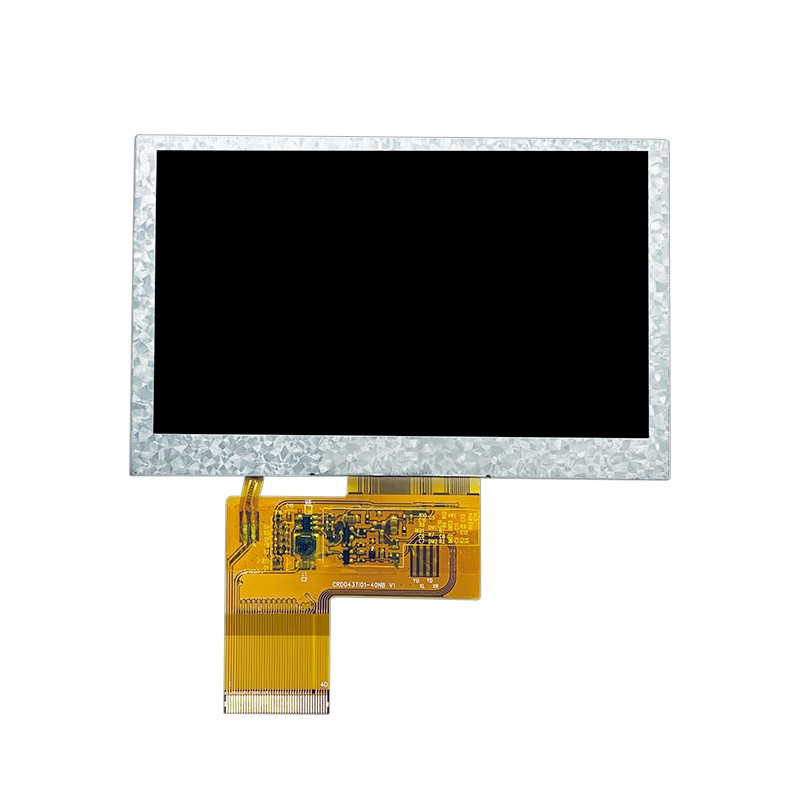

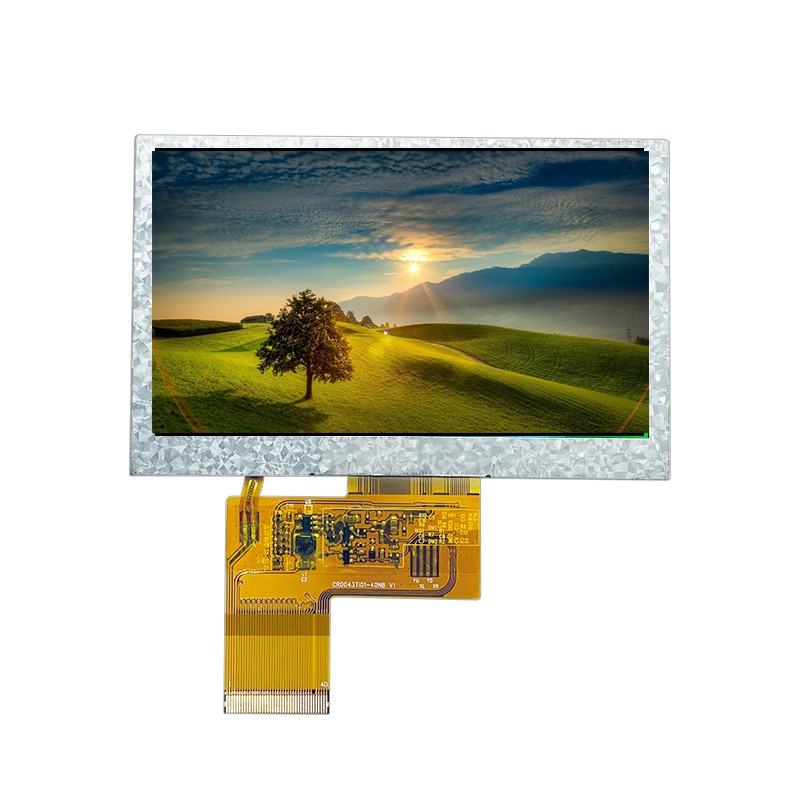

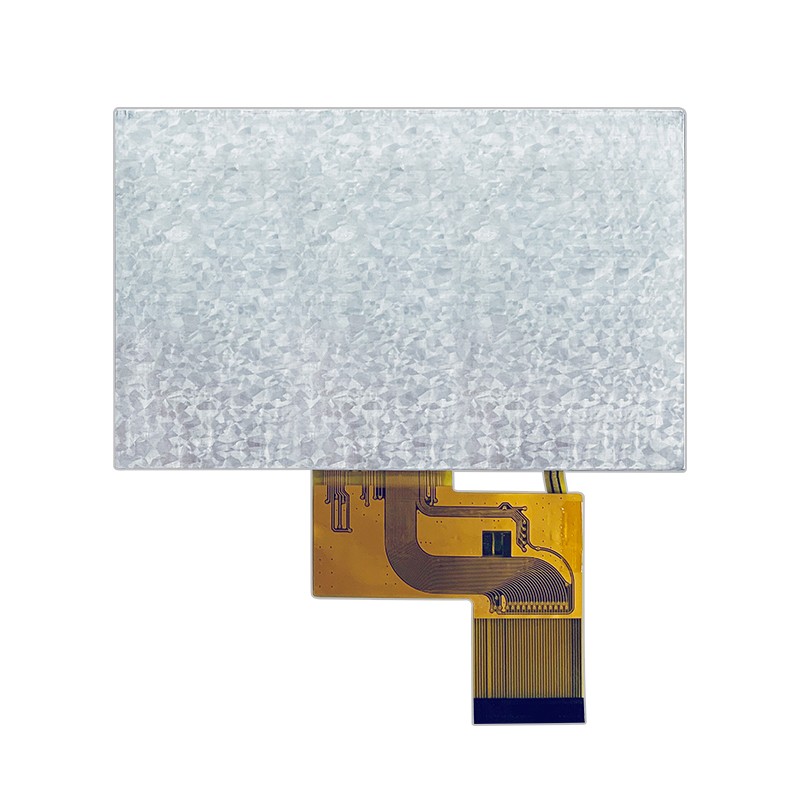

4.3 Inch IPS TFT LCD Display 800x480

Description

This 4.3"TFT is a IPS Mini color TFT LCD display module is made of resolution 800x RGBx480 pixels,with outline dimension of 105.50(W)x67.20x2.80 mm and AA size 95.04x53.856 mm.this 4.3" TFT display supports RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:800x(RGB)x480
• View Direction:6O'clock
• Display Color : RGB 16.7M
• Power Supply :3.0-3.6 V
• Interface :RGB
• Pin No: 40P Connector
• Backlight:  10 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:105.50(W)x67.20x2.80 mm
• Viewing Area :95.04x53.856 mm
• Touch Screen:with or without
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

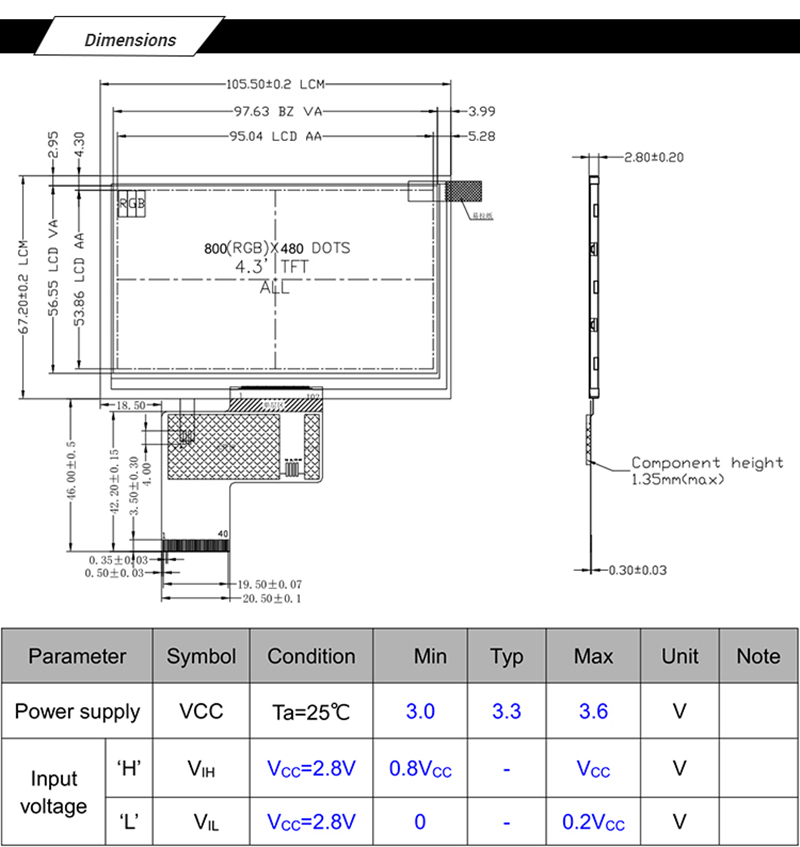

Dimensions

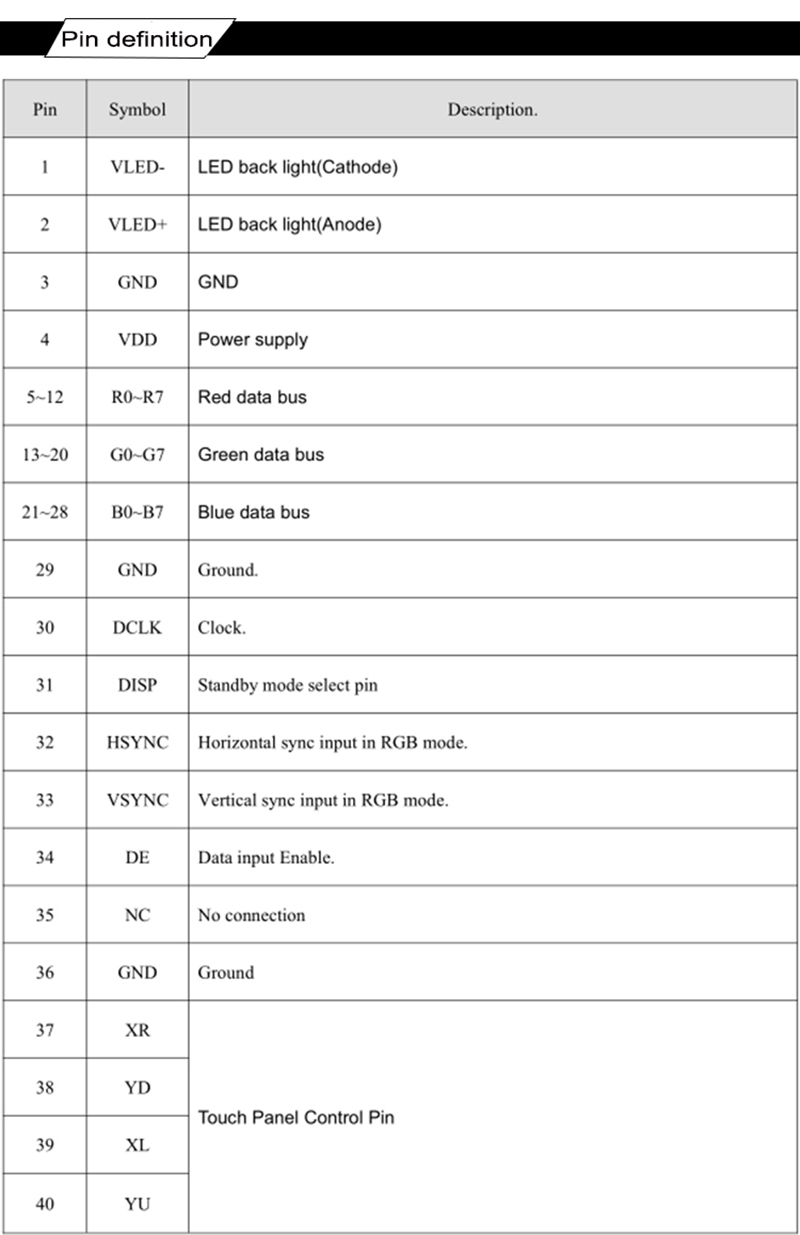

Pin Definitions
