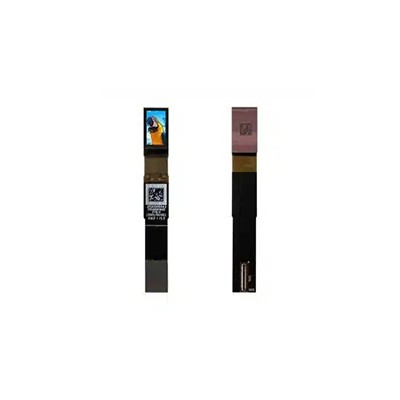

0.49" Micro OLED FHD 1920x1080 Microoled display for smartglass-MIPI

  • Category: AR/VR Display
  • Size:0.49 inch OLED Display
  • Resolution:1920(RGB) × 1080
  • ​Brightness:1800cd/m2
  • Driver Board: HDMI Port
  • INQUIRY   EMAIL

0.49 inch Micro oled FHD 1080P Micro Screen 1800nits for Micro AR augmented reality glasses



Description

The 0.49 inch Micro OLED, is based on a cutting-edge Monochrome micro display that utilizes Micro Si OLED (Silicon Organic Light Emitting Diode) technology to boasts impressive features and specifications.this micro screen offers High resolution FHD 1920×1080 pixels, high brightness 1800nits, high Contrast Ratio of 50000:1, deep blacks, and vibrant colors, which makes it appicable for be used in bright outdoor environments, as well as much applications such as augmented reality glasses (AR Glasses),virtual reality headsets (AR Headset),Aviation Head-up Displays (HUD),Head-mounted Displays (HMD) and near-eye display etc.




0.49 inch Micro OLED parameter


Diagonal Size:0.49"
Panel Type:Micro OLED, Micro Si-OLED
Resolution:1920(H)x1080(V),FHD
Number of dots:1920x1080x2(2/3 SPR)
Pixel Size:5.616µm x 5.616µm
Outline Size:15.68(W)×9.09(H) ×1.6(D) mm
Useable Display Area :10.783mm x 6.065mm / 0.49" diagonal
Luminance:1800cd/m² typical
Contrast Ratio:50000:1
Power Consumption :468mW
Gray Levels:256 or 1024
Interface:MIPI
Frame Rate:60Hz~90Hz
Weight:~1g
Operating Temperature:-20℃~70℃
Storage Temperature:-40℃~80℃
Customize:Driver Board, Touch Screen, FPC Connector, Coverlens and etc.
Application:HMD AR VR



0.49 inch MicroOLED Features


Thin and light
Sequential emission
Fast response and High contrast
Idle mode for save power
Support scanning direction selection
Color enhancement
AP Operated resolution 1920x1080, PPI=4496

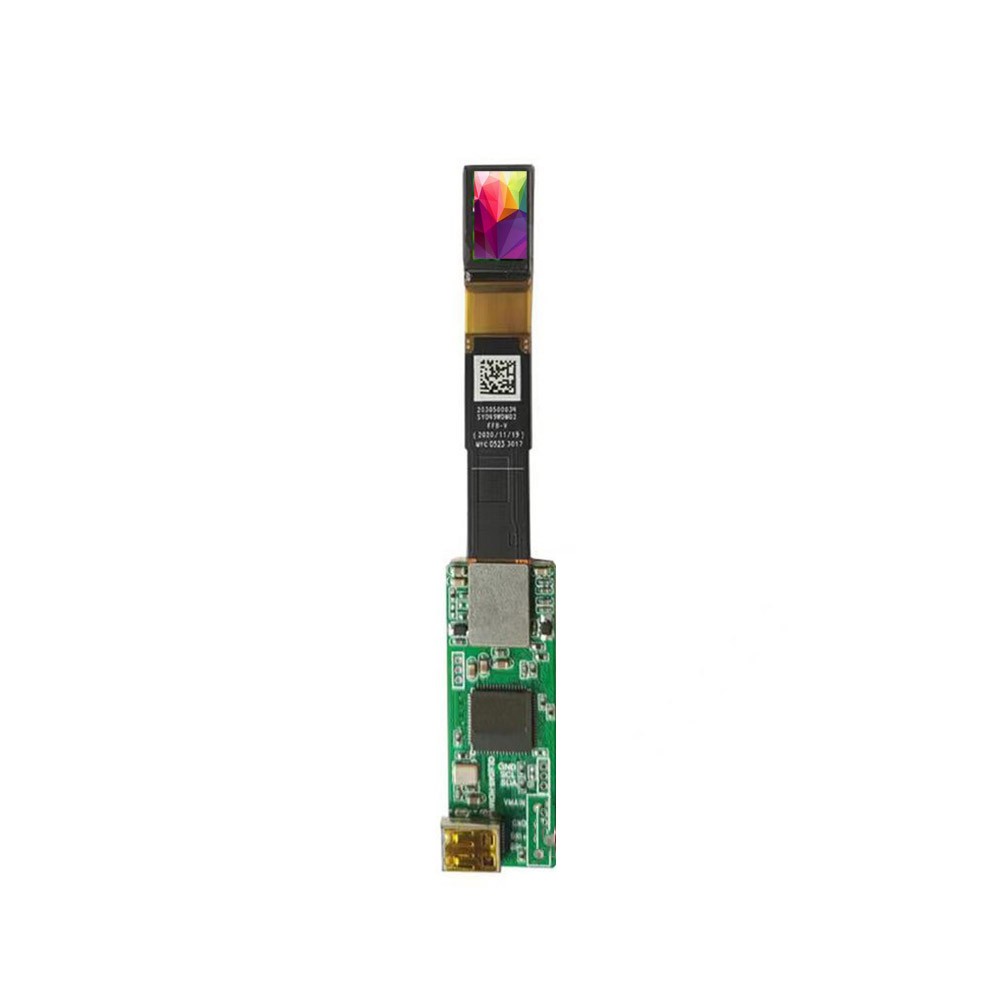

Demo driver board HDMI and USB-C available

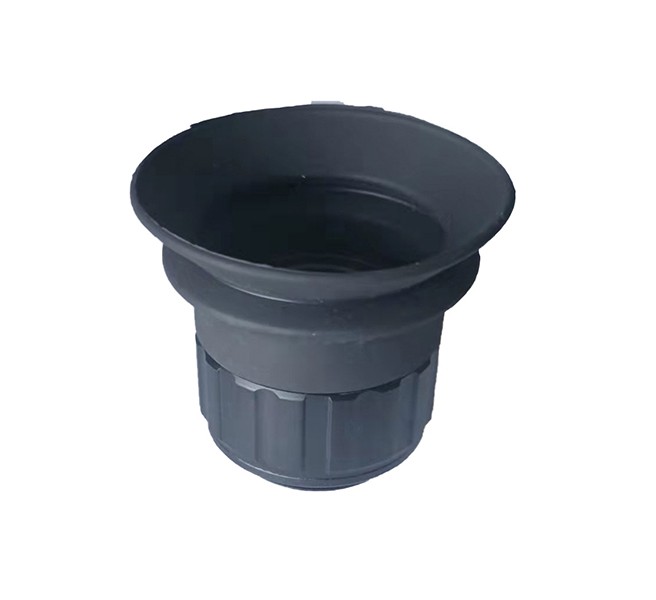

Optics lens

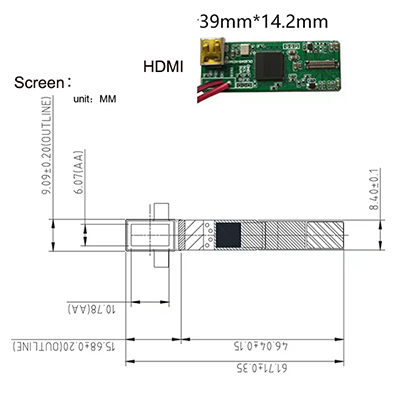

Dimensions


0.49 inch micro oled 1920x1080
