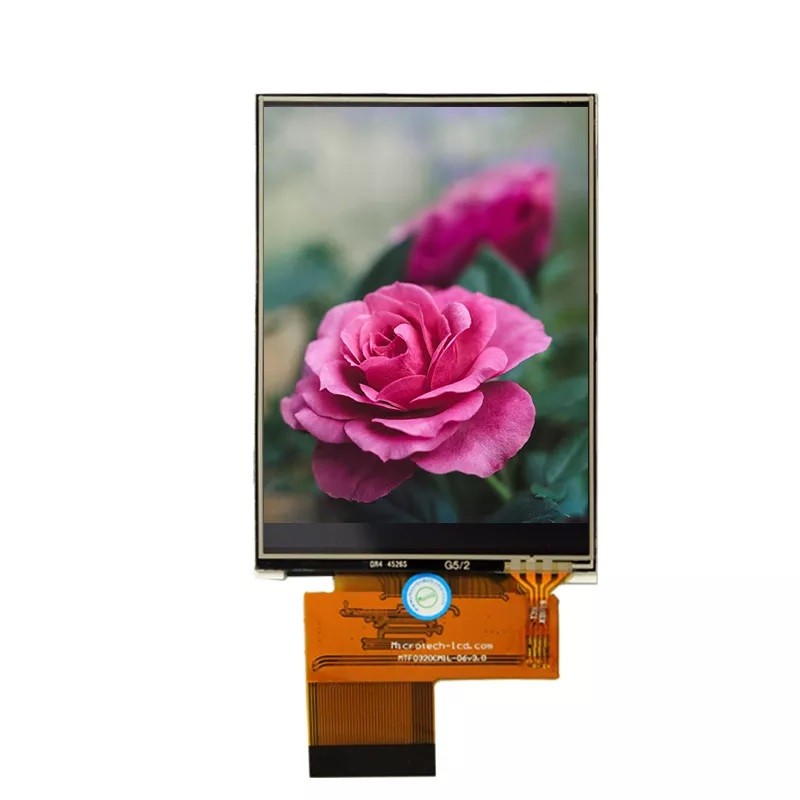

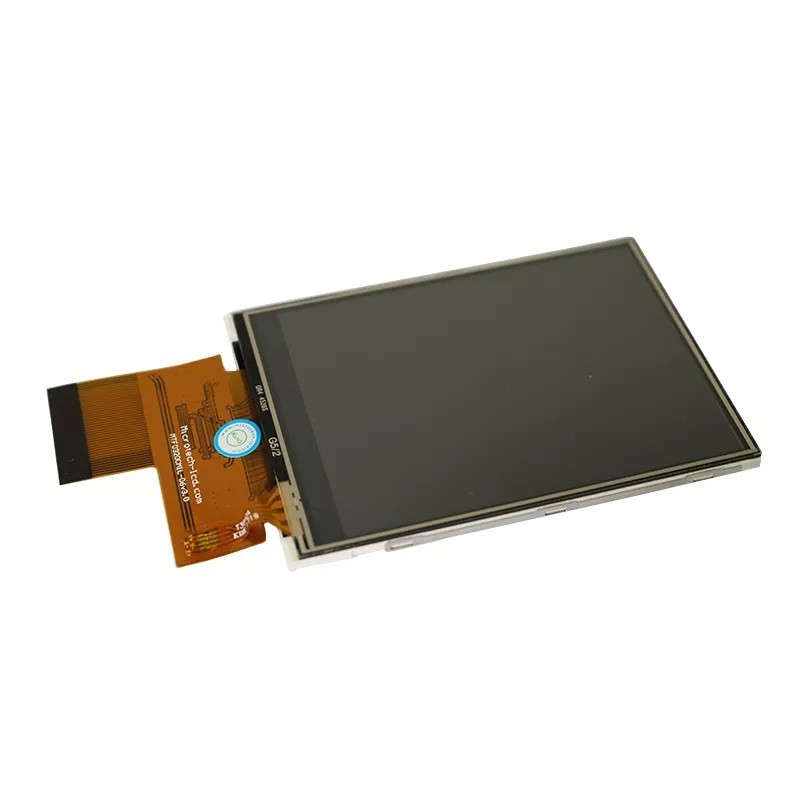

3.2 inch 240x320 TFT LCD Module touchscreen

Description

This 3.2"TFT is a IPS Mini color TFT LCD display module is made of resolution 240x RGBx320 pixels,with outline dimension of 55.00(H)x77.20(V)x2.80 mm and AA size 48.60(H)x64.8(V) mm.this 3.2" TFT display builts in ILI9431 Driver IC and supports MCU / MPU RGB interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

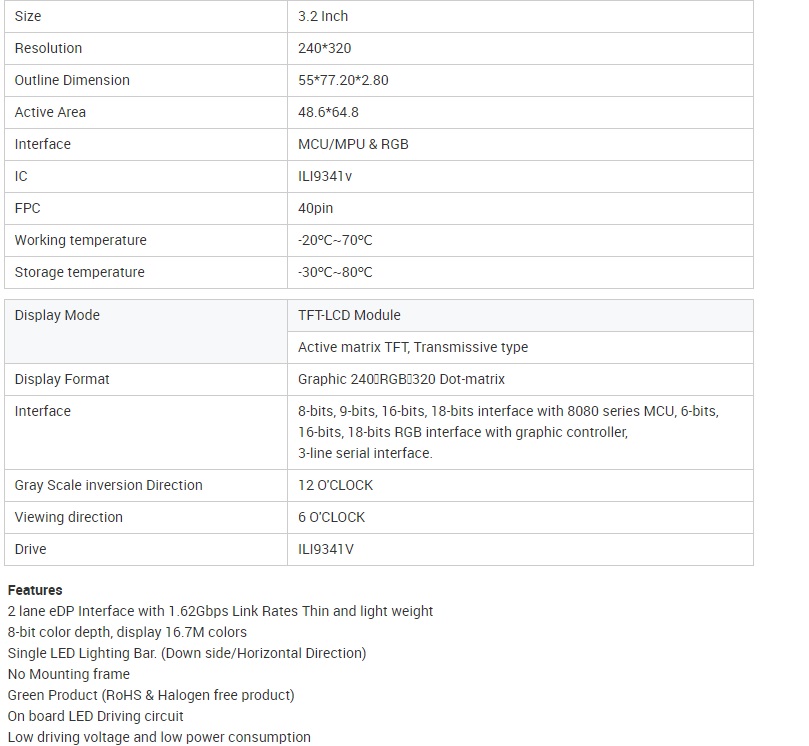

• Resolution:240x(RGB)x320
• View Direction:6 O'clock
• Display Color : RGB 262K
• Power Supply :2.5-3.3 V
• Interface :RGB
• Controller IC :ILI9431
• Pin No: 40P
• Backlight:  4 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:55.00(H)x77.20(V)x2.80 mm
• Viewing Area :48.60(H)x64.8 mm
• Touch Screen:with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃
