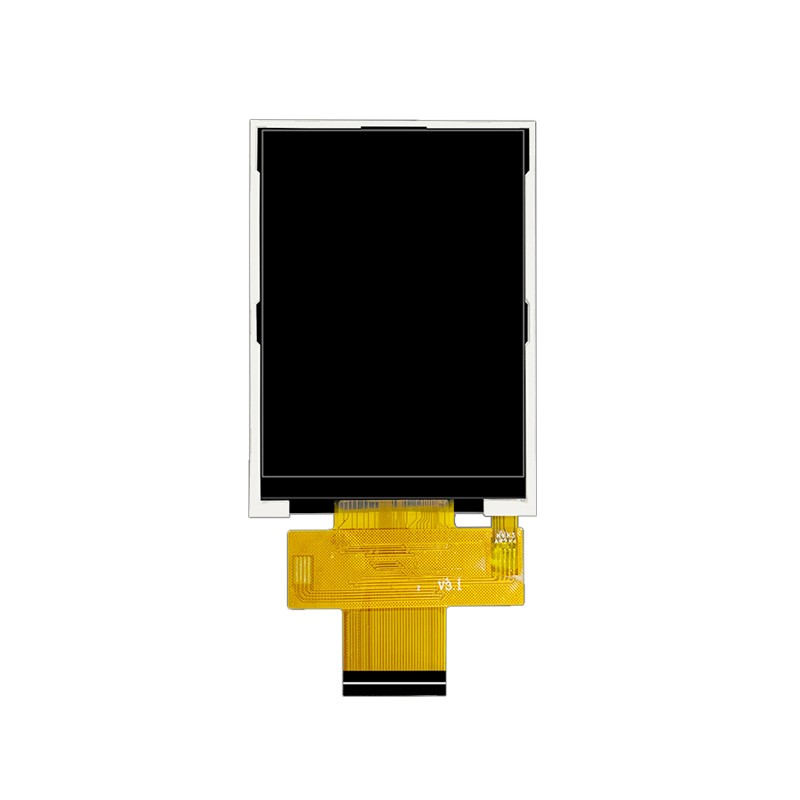

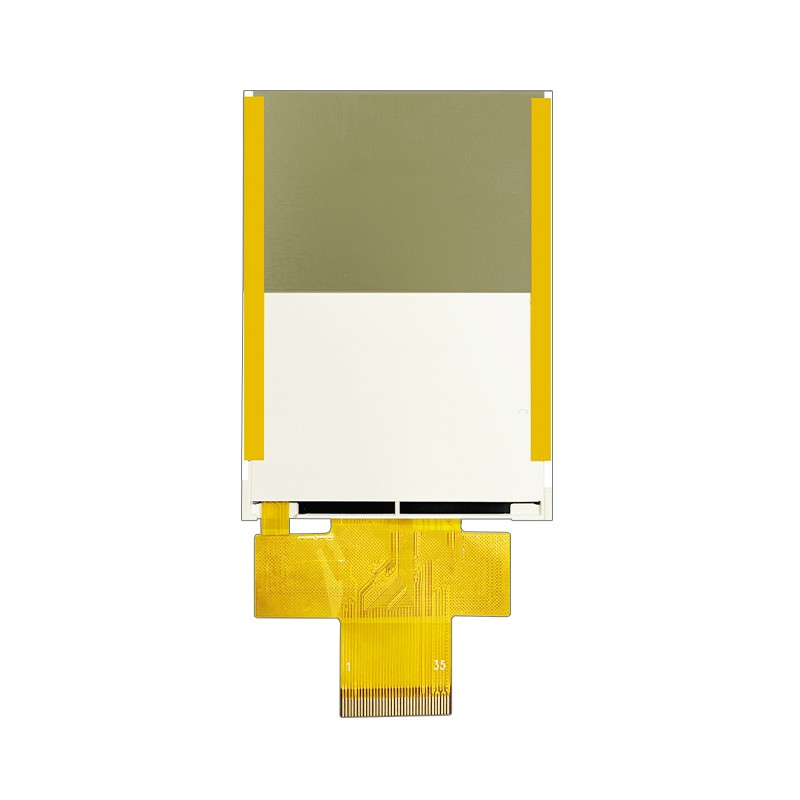

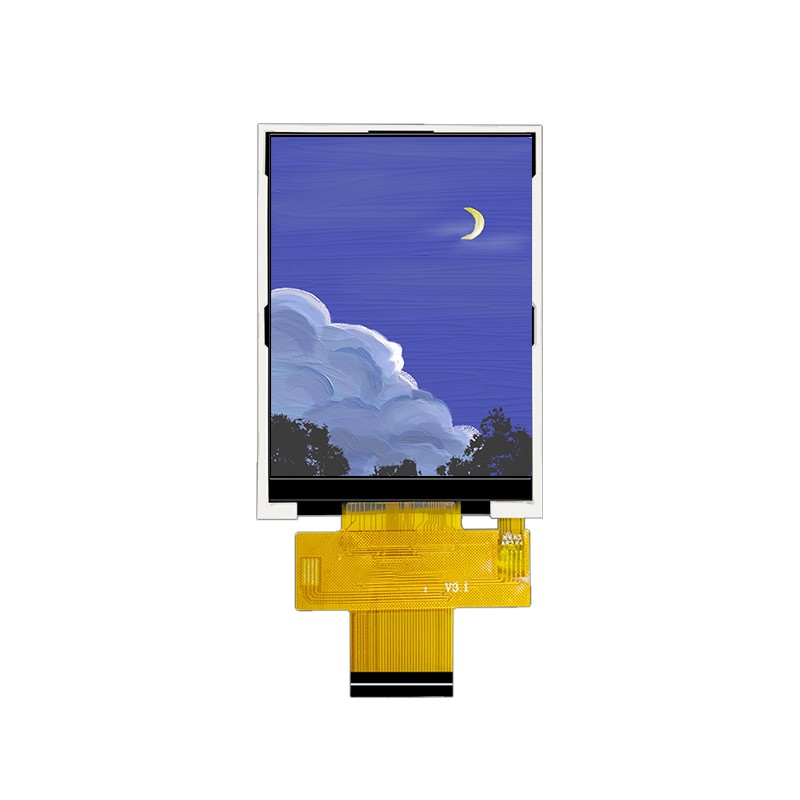

2.8 inch TFT LCD Module 240x320

Description

This 2.8"TFT is a IPS Mini color TFT LCD display module is made of resolution 240x RGBx320 pixels,with outline dimension of 50.0 x 69.2 x 2.45 mm and AA size 43.2x57.6 mm.this 2.8" TFT display builts in ST7789  Driver IC and supports 16 BIT MCU interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

• Resolution:240x(RGB)x320
• View Direction:12 O'clock
• Display Color : RGB 65K
• Power Supply :1.65-3.3 V
• Interface : 16 BIT MCU
• Controller IC :ST7789
• Pin No: 35P Connector
• Backlight: 4 White LEDs

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:50.0 x 69.2 x 2.45 mm
• Viewing Area :43.2x57.6 mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

Dimensions

Pin Definitions
