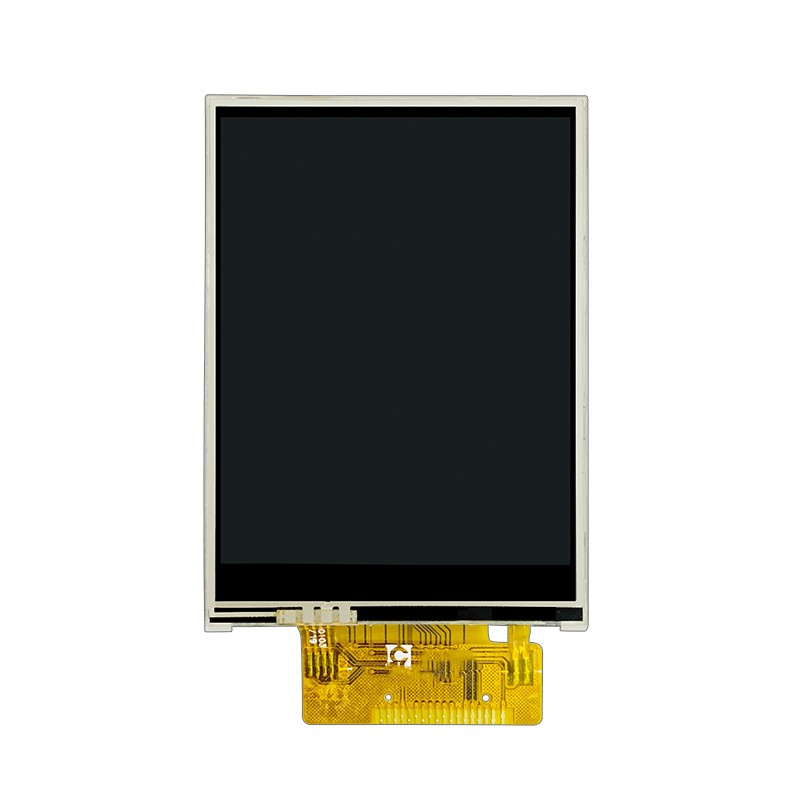

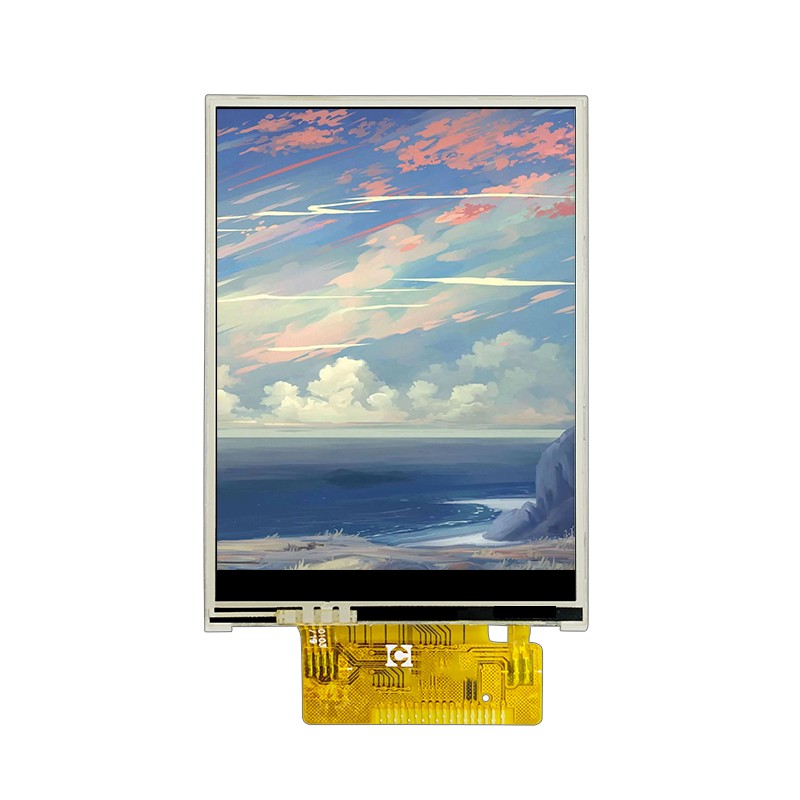

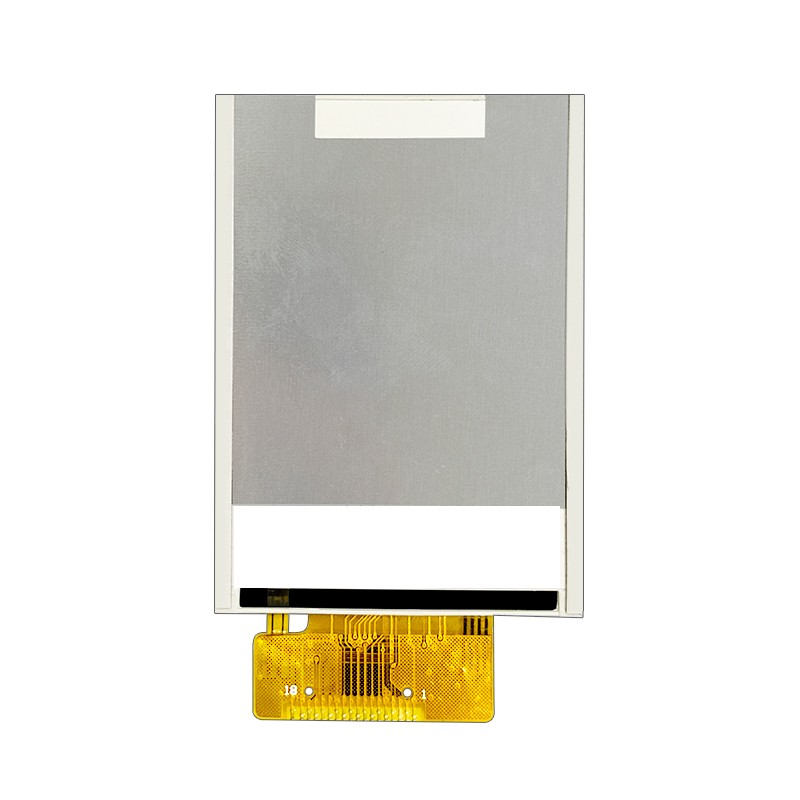

2.4 inch QVGA IPS TFT LCD Display ST7789

Description

This 2.4"TFT is a IPS Mini color TFT LCD display module is made of resolution 240x RGBx320 pixels,with outline dimension of 42.72x60.62x3.45 mm and AA size 36.72x49.19 mm.this 2.4" TFT display builts in ST7789  Driver IC and supports SPI interface,with full viewing angle and wide range of operating Temperature,it is ideal to be used in industrial device,any embedded systems,medical equipment,wearable devices,security and hand-held devices which requests TFT display with high quality and colorful images.

This TFT Display is with FPC-Soldering is easily to assemble or remove!

• Resolution:240x(RGB)x320
• View Direction:12 O'clock
• Display Color : RGB 262K
• Power Supply :1.65-3.3 V
• Interface : SPI
• Controller IC :ST7789
• Pin No: 18P Soldering
• Backlight: 4 White LED

• LCD Type: TFT,Normally Black,Transmissive
• Panel Dimension:42.72x60.62x3.45 mm
• Viewing Area :36.72x49.19 mm
• Touch Screen:without or with
• Operation Temperature : -20℃~70℃
• Storage Temperature : -30℃~80℃

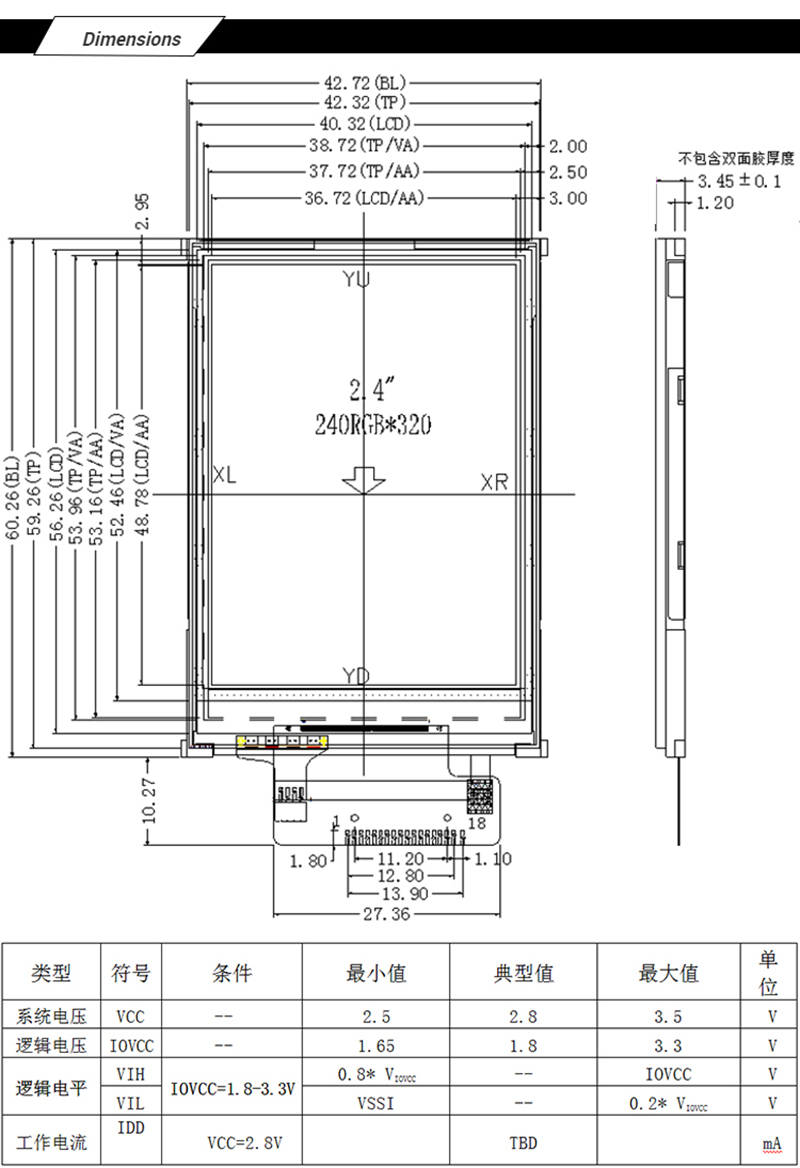

Dimensions

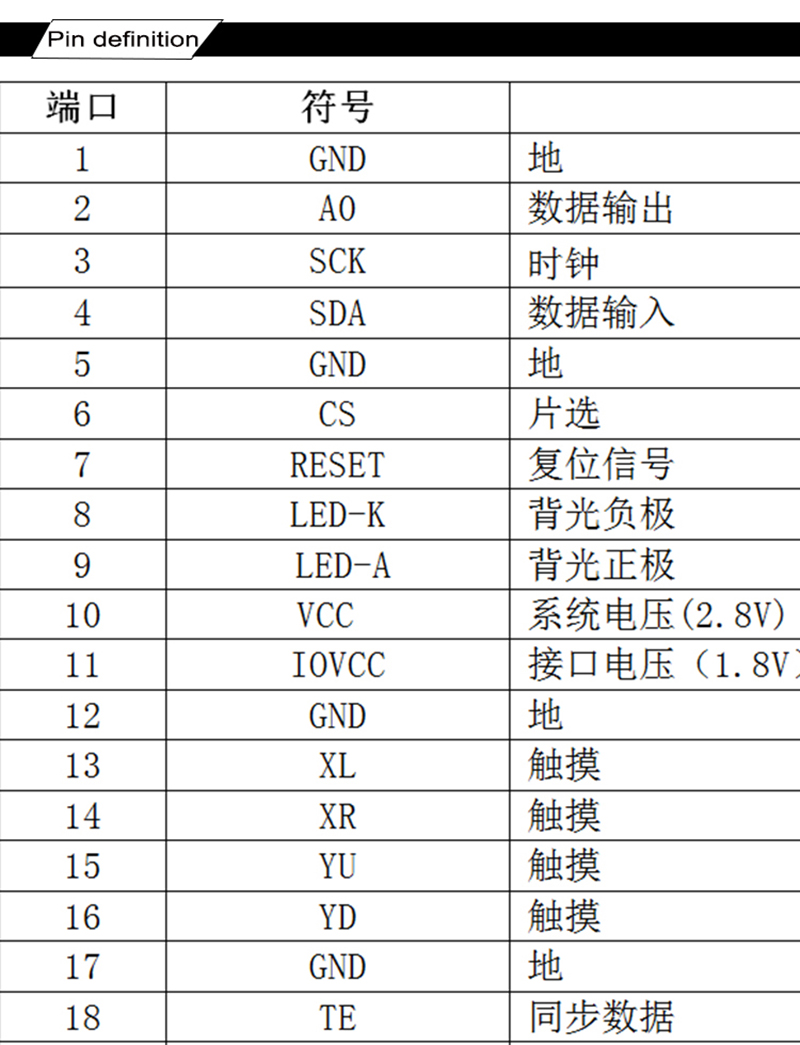

Pin Definitions
