Head-Mounted Displays Full HD 1920x1080 High-Resolution for electron AR VR headset

1920x1080 full HD Helmet-mounted display 1080P Optical head-mounted displays for Gaming, Streaming and Working, Smart Glasses, Best TV/Projector/Monitor Alternative.

Description

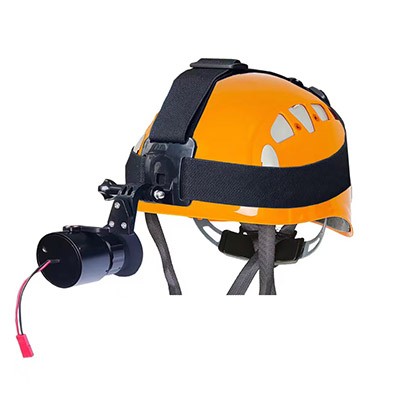

This Head Mounted display (HMD) is a portable external display terminal, configured with 0.71 inch Micro OLED Screen and a 10X amplification optical eyepiece, worn on the head or as a part of a helmet, so it is called helmet mounted display;

This helmet-mounted display offers a Full HD high-resolution of 1920*1080 pixels, a high-brightness of 500nits and the brightness is adjustable, which can give high-quality image or video to the device and bring immersive experience to users, so this head mounted displays (HMDS) is considered as a ideal display device for Augmented reality (AR Headset),virtual reality(VR Headset),electron microscopes, computers, mobile phones, drones, infrared night vision, ect; using this head-mounted displays can free your hands to do other work.


How to use:

This head-mounted display is equipped with an HDMI video cable,If your video output resolution can reach 1920X1080, and the HDMI output terminal device with a 5V power supply capacity is greater than 500mA, connect the device's HDMI video output with an HDMI cable, a clear images can be seen in the device through the eyepiece. If the power supply capacity of HDMI is not enough, an external 5V power supply is needed.


Pls contact us for the Instructions and Installation Diagram

Head mounted displays HDMS parameter:

• Video input: MICRO HDMI D type
• Display type :0.71 inch Micro OLED
• Display resolution: 1920*1080;Full HD 1080P
• Brightness in Max:500cd/m²
• Operating Voltage: DC5V
• Normal operating power consumption: 1.5W Approx
• Lens magnification: 10X
• lens focal length:28MM
• Exit pupil distance :26.5mm
• adjust to: -600 +300
• How to operate: manual adjustment
• Operating temperature: -10℃--50℃
• product dustproof :YES
• product waterproof: NO
• Module size: φ48mm*H55mm
• Product weight (excluding headband and bracket): 162g Approx.
•

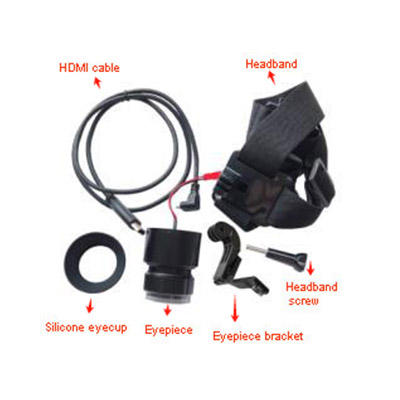

Head mounted displays HDMS components list as below: (Refer to Figure below)

• Eyepiece x 1;
• Eyepiece bracket x1
• Silicone eyecup x1;
• Headband x 1
• Headband screw x1;
• HDMI cable x1
